non-return valve 1/4 - Aignep
non-return valve 1/4 - Aignep

non-return valve 1/4 - Aignep

€7.45 Tax included

€6.16 tax excl.

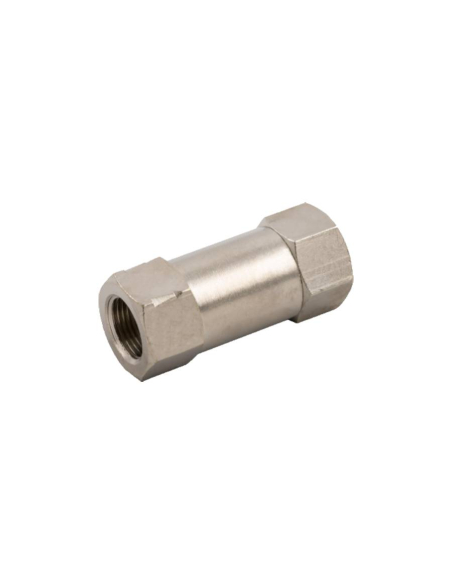

1/4 metal non-return valve. It allows the passage of air only in one direction and prevents it in the opposite direction.

Made of nickel-plated brass with NBR gaskets. Female thread on both sides.

Series: Function
Reference: 6062 1/4

Non-return valveaignep
normative



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


1/4 metal non-return valve, Allows the passage of air only in one direction (indicated by the date on the body) and prevents it in the opposite direction.

Actuated directly by air, it is used as a safety device, maintaining pressure in a part of the circuit, even when there is no pressure in the supply.

drawing 6062

Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 6062 1/4
  • Size: 1/4
  • Fluid: Compressed air
  • Body material: Nickel-plated brass.
  • O-Ring: NBR
  • Maintenance spring: AISI 302 steel
  • Max pressure: 8 bar
  • Minimum pressure that guarantees closure: 2 bar
  • Indicative opening pressure: 0.2 bar
  • Temperature: -20 ºC + 80ºC.
  • Thread: Gas cylindrical ISO 228
  • Metric: ISO R/262

Dimensions:


scheme 6062
6062NBRDIMENSION CHART

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
