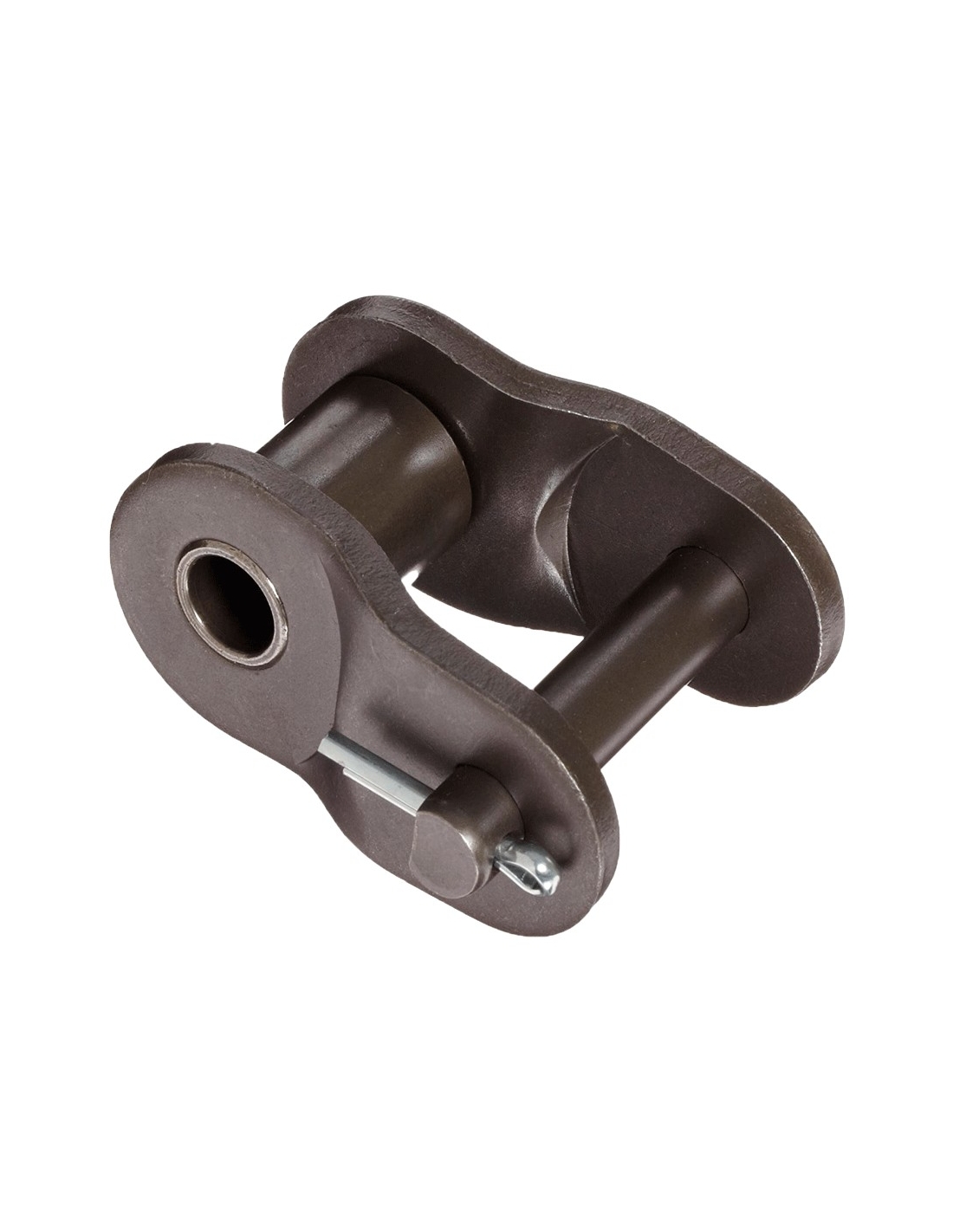

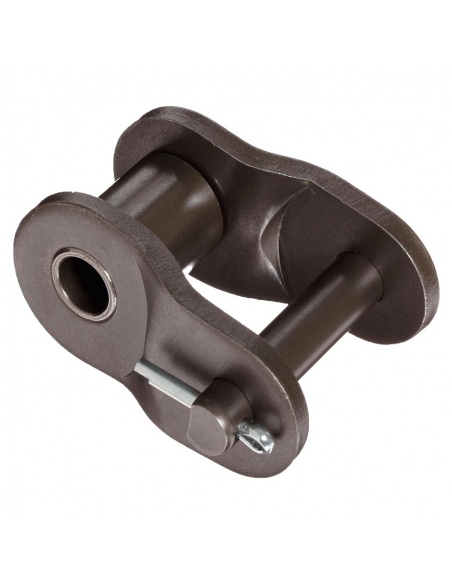

Single roller chain bend 28A-1 ASA 140

€16.91 Tax included

13.75 tax excl.

AC28A1ASA

Roller chain bending links for chain type 28A-1 according to ASA 140

Part no.: 57470370

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns


Angled links for roller chain connection for single chain type 28A-1 according to ASA 140
Manufacturer: ISB
Order No.: 57470370

An angled link is used when an odd number of chain links is required. It is the combination of an inner link and an outer link.

The pin and two links are adjusted by sliding. The fatigue strength is 35 % lower than that of the chain itself.

The use of an angled link does not require the use of a straight link.


Material for professional use, install in compliance with the regulations in force at the place of installation.
