Filter 1 metallic New Deal - Metal Work - ADAJUSA
Filter 1 metallic New Deal - Metal Work - ADAJUSA

Filter 1 metal 20 micron semi-automatic drain New Deal - Metal Work

€107.06 Tax included

87.04 tax excl.

1621006

1 metal filter, with a filtration degree of 20μm and semi-automatic discharge, for retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing.

Series: New Deal
Reference : 1621006
metal work logo

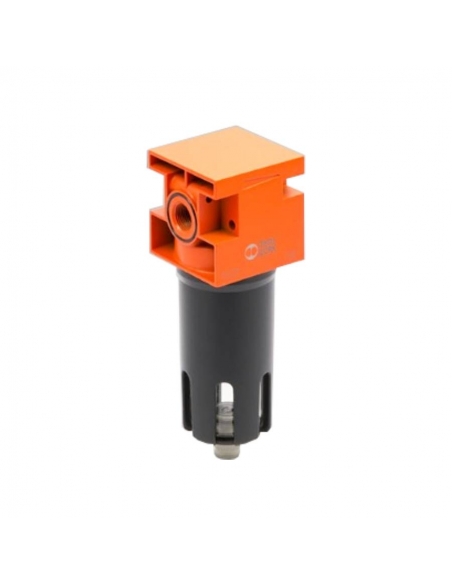

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Metal filter cup of 1, with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. The type of purge is semi-automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

  • Manufacturer: Metal Work
  • Manufacturer reference: 1621006
  • Size: 1"
  • Regulation range: RMSA
  • Maximum inlet pressure: 18 bar .
  • Flow: 11000 Nl/min.
  • Filtration degree: 20μm.
  • Metal glass with external viewer.
  • max temperature at 1 MPa; bar ; 145psi: 50ºC
  • Bowl capacity: 170 cm³



For other sizes and models consult.





Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
