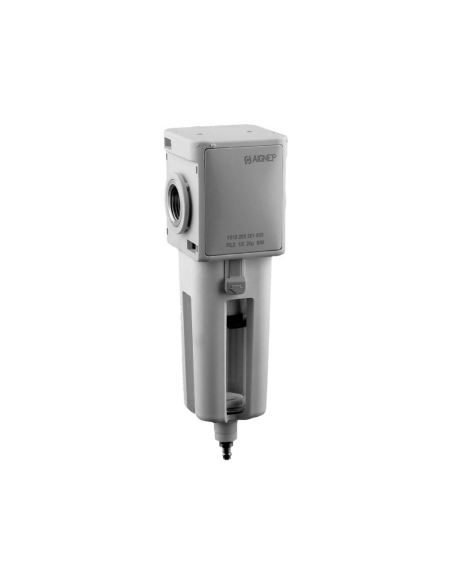

Filter 1 20 microns semi-automatic purge size 3 EVO series - Aignep

Name: Filter 1 20 microns semi-automatic purge size 3 EVO series - Aignep
Brand: Aignep
SKU: Y010309201000
Price: 54.243 EUR
Availability: PreOrder

€54.24 Tax included

€44.10 tax excl.

1" filter, with a filtration degree of 20μm and semi-automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy.

Series: FRL Evo
Reference: Y010309201000

Pneumatic symbol Adajusa filter
Aignep logo

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1" filter vessel with a filtration grade of 20μm to retain solid or liquid impurities from the air compressor. Compact size (T3). The purge type is semi-automatic, it discharges when the pressure in the filter approaches zero.

Characteristics:

Manufacturer: Aignep
Manufacturer reference: Y010309201000
Threaded drive: 1"
Group size: size 3.
Filtered grade: 20 μm
Maximum inlet pressure: 13 bar
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 7900
Fluid: Compressed air or other inert gases
Cup capacity (condensation) (cm3): 151
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Y010_FRL3_dimensions_table

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
