Valve 1/8 5-way monostable - Mindman

Name: Valve 1/8 5-way monostable - Mindman
Brand: Mindman
SKU: MVAA1804A1
Price: 25.1922 EUR
Availability: PreOrder

Delivery in 3 days

€25.19 Tax included

€20.82 tax excl.

Pneumatic valve 1/8 5 ways monostable.

Reference: 281MVAA1804A1

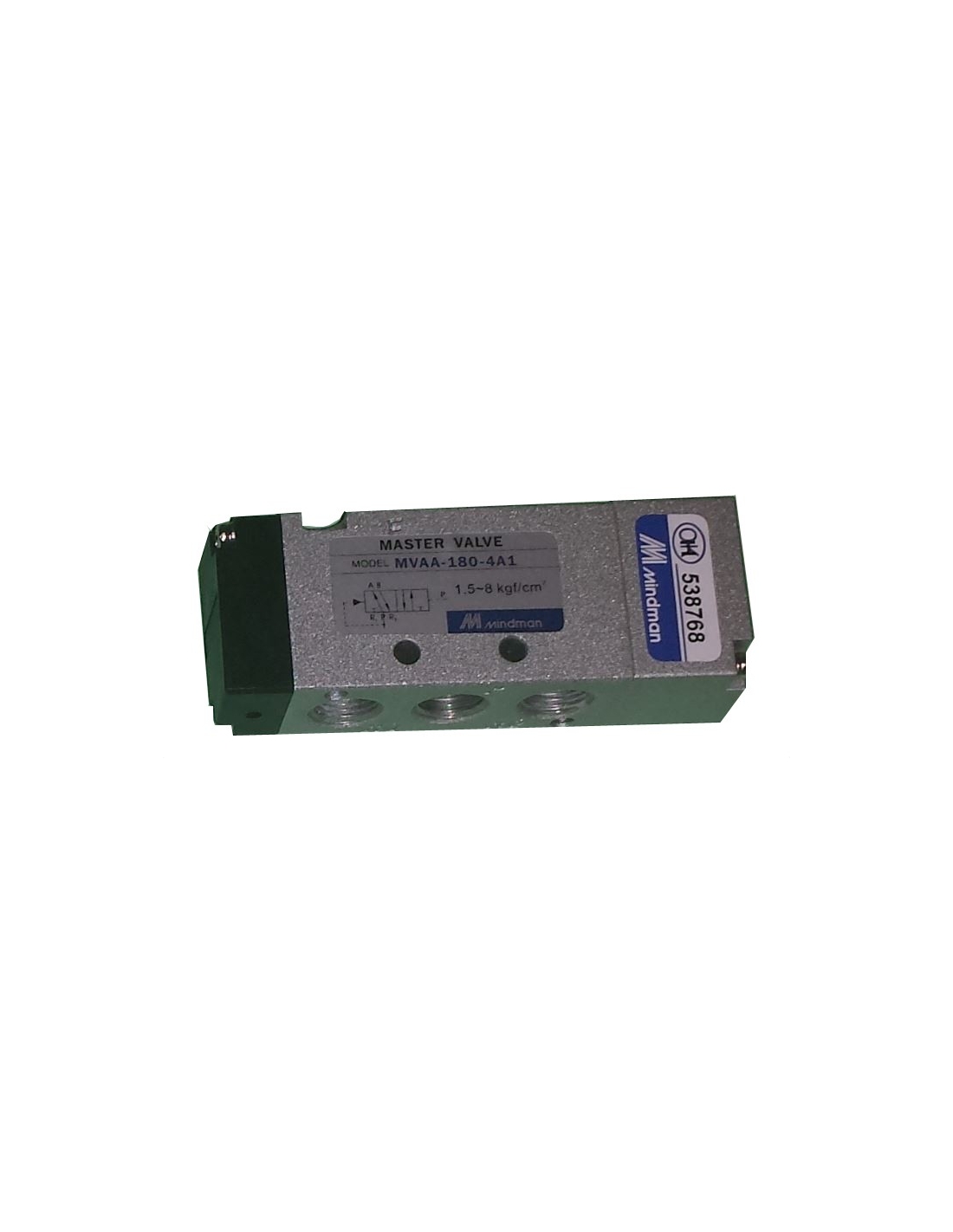

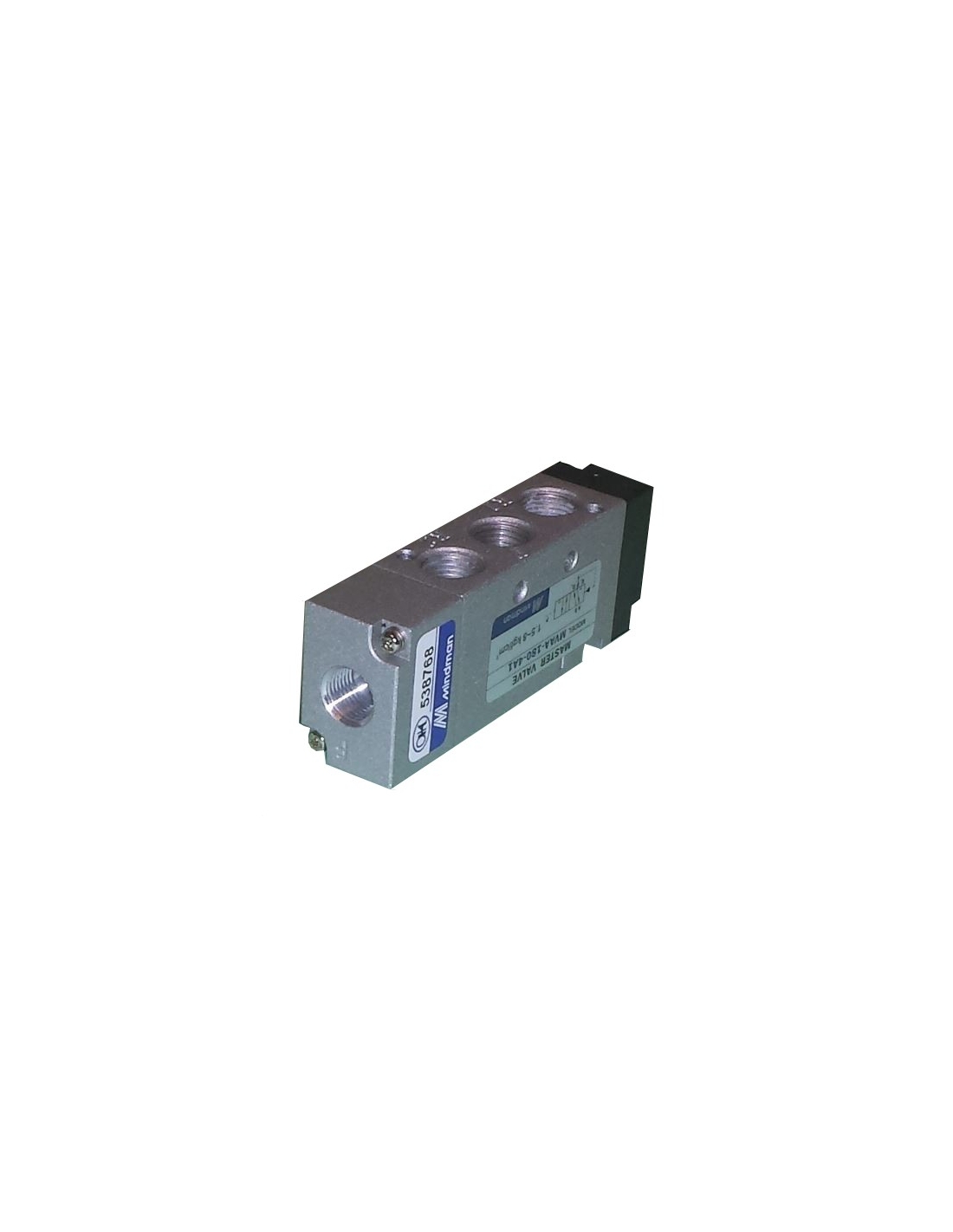

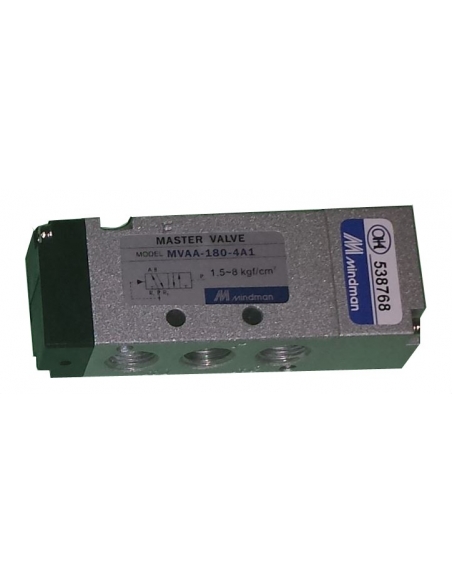

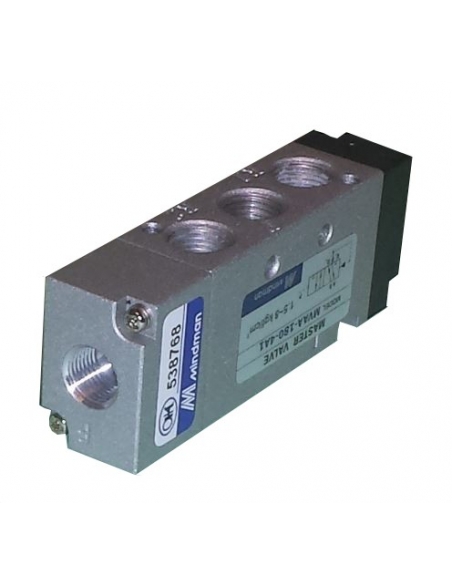

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/8 5-way monostable pneumatic valve, for general and industrial applications.

Technical details:

Manufacturer: Mindman.
Manufacturer's Reference: MVAA-180-4A1.
Valve type: 1/8-5/2 Monostable.
Thread type: G 1/8".
Number of tracks: 5.
Positions: 2.
Fluid type: Air under pressure, with or without lubrication.
Working pressure: 0÷8 Kgr/cm2.
Piloting pressure: 1.5÷8 Kgr/cm2.
Maximum pressure: 10 Kgr/cm2.
Effective pitch diameter: 12 mm2.
Working temperature: -5 to 60oC.
Material: Alumio and steel.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.

Dimensiones válvulas 1/8-5/2 Mindman

Valves Catalog

MIndman Valve Catalog

Download (1.62MB)

MVAA-180 valve data sheet

MVAA-180 valve data sheet Mindman

Download (147.08KB)
