Valve 1/2 5-way 3 positions pressure centers- Mindman
Valve 1/2 5-way 3 positions pressure centers- Mindman

Valve 1/2 5-way 3 positions pressure centers- Mindman

Delivery in 3 days
€66.55 Tax included

€55.00 tax excl.

Pneumatic valve of 1/2 with 5 ways 3 positions pressure centers, pneumatic control, metal body. For dual-effect cylinder control.

Reference: 281MVAA4604A2P

Esquema neumático electrovávulas 5 vías centros en presión


https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

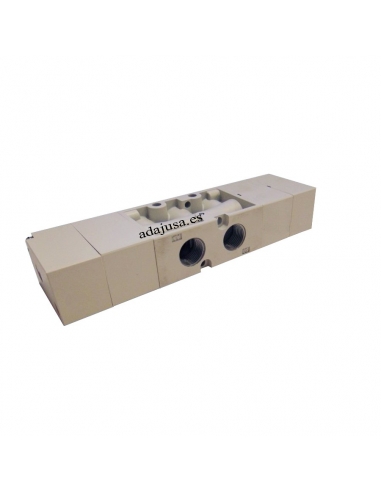

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic valve of 1/2 5/3 pressure centers, pneumatic drive. that allow you to control double-effect cylinders.

The valve has 3 positions, activating one inlet the cylinder advances, without activating any cylinder stops, does not let air out of the sides of the cylinder, the cylinder maintains force, and activating the other inlet the cylinder is collected.

Technical details:

  • Manufacturer: Mindman.
  • Manufacturer's Reference: MVAA-460-4A2P.
  • Configuration: 5-way 3 positions, pressure centers.
  • Thread type: G 1/2".
  • Number of tracks: 5.
  • Positions: 3.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0÷8 Kgr/cm2.
  • Piloting pressure: 1.5÷8 Kgr/cm2.
  • Maximum pressure: 10 Kgr/cm2.
  • Effective pitch diameter: 18 mm2.
  • Working temperature: -5 to 60oC.
  • Material: Aluminum and steel.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.
