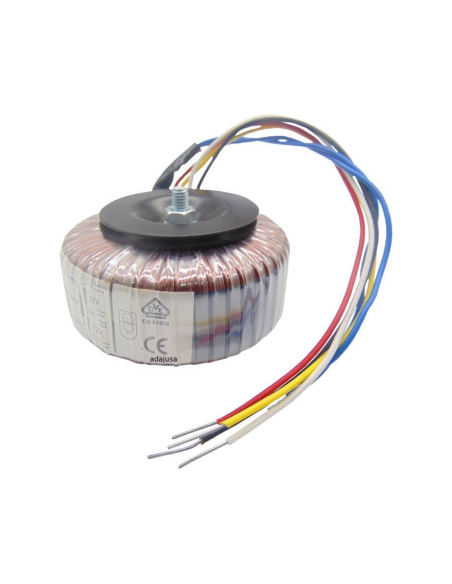

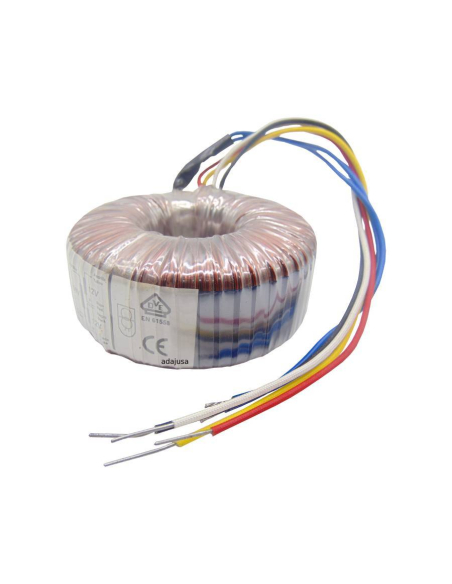

Single-phase 50VA toroidal transformer, 230Vac input voltage and 12Vac output winding. It includes a resettable thermal protector as an additional protection measure to prevent the transformer from burning out in case of working conditions different from the design ones (voltage peaks, etc).
This thermal protector means that when a working temperature is reached in the primary above the temperature for which it is designed, its mechanism opens automatically to prevent the transformer from deterioration, and when the normal operating temperature is restored, the transformer is put back into service.
This type of transformer is very suitable when reduced size and weight are required, with an improvement of up to 50% over other types of construction, very low losses in the copper under load, which translates into less overheating and high performance. Excellent vacuum/load regulation and very low noise level. Very low magnetic radiation.
Ring-shaped magnetic core made of high permeability heat-treated silicon-steel sheet with losses lower than 1W/kg.
Mounting by means of 2 plastic discs and screw (included in the supply).
Output wires with color-coded identification of 25cm length.
The main application of this type of transformers is for command and control in industrial automation, power supplies and for general applications. They are intended to supply electrical devices where galvanic isolation between circuits is required.
The supply includes:
- Toroidal transformer
- Thermal protector
- 2 plastic discs
- Screw
- Nut
Technical characteristics of the transformer:
- Part number: 7220983
- Type of transformer: Toroidal
- Transformer primary voltage: 230Vac ± 10%
- Frequency: 50/60 Hz
- Current: 30mA max
- Power losses: 3W max
- Core size: 0,3/0,35mm
- Transformer secondary (output) on load voltage: 12V
- Transformer secondary (output) no-load voltage: 13.7V
- Output voltage tolerance: ± 5%
- Rated current: 4.16A
- Transformer power: 50VA
- Insulation resistance: 500Vdc 100MΩ / 1min
- High voltage test: Should withstand 3.75kVac for 1 min or 4.5kVac for 2 sec
- Temperature rise: Pri-Sec winding reaches max. temperature of 90°C at full load
- Impregnation: Varnish
- Fixing: Discs, M6 screw/nut
- Protection: IP-00
- Weight: 0,89 Kg
- Safety standard: EN61558
For other transformer types and models, please consult us.
Electrical connection
The transformer incorporates a resettable thermal protector to protect it against temperatures above the design temperature, even so, it is recommended to install overload protection to avoid deterioration and safety of the transformer and the installation. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
In the case of using a protection fuse in the primary, it is recommended to use the delayed type, to absorb the high starting current characteristic of this type of transformers.
Material for professional use, install respecting the regulations in force at the place of installation.
