Selector 2 positions metal key OFF 1 open contact NO complete

€4.21 Tax included

€3.48 tax excl.

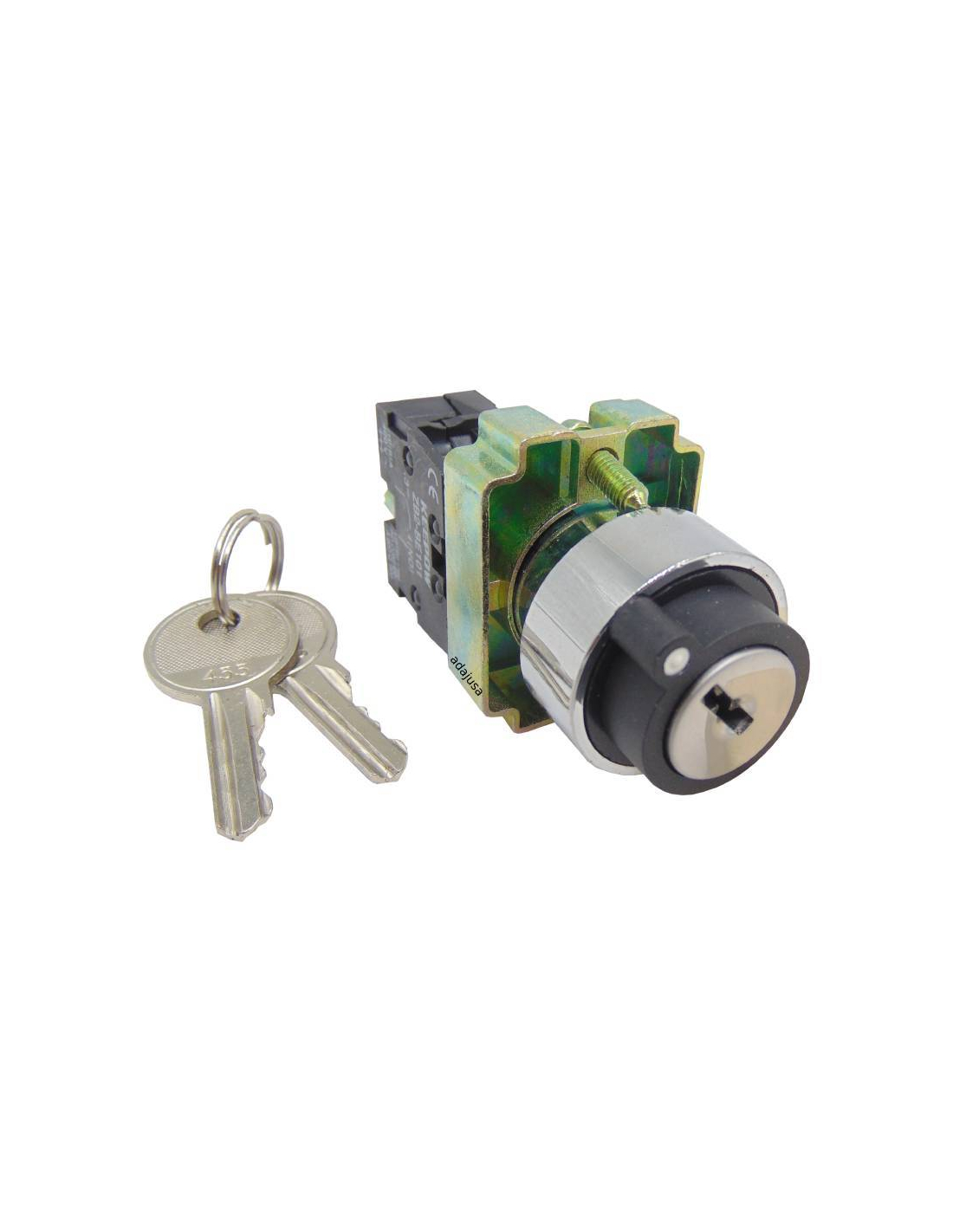

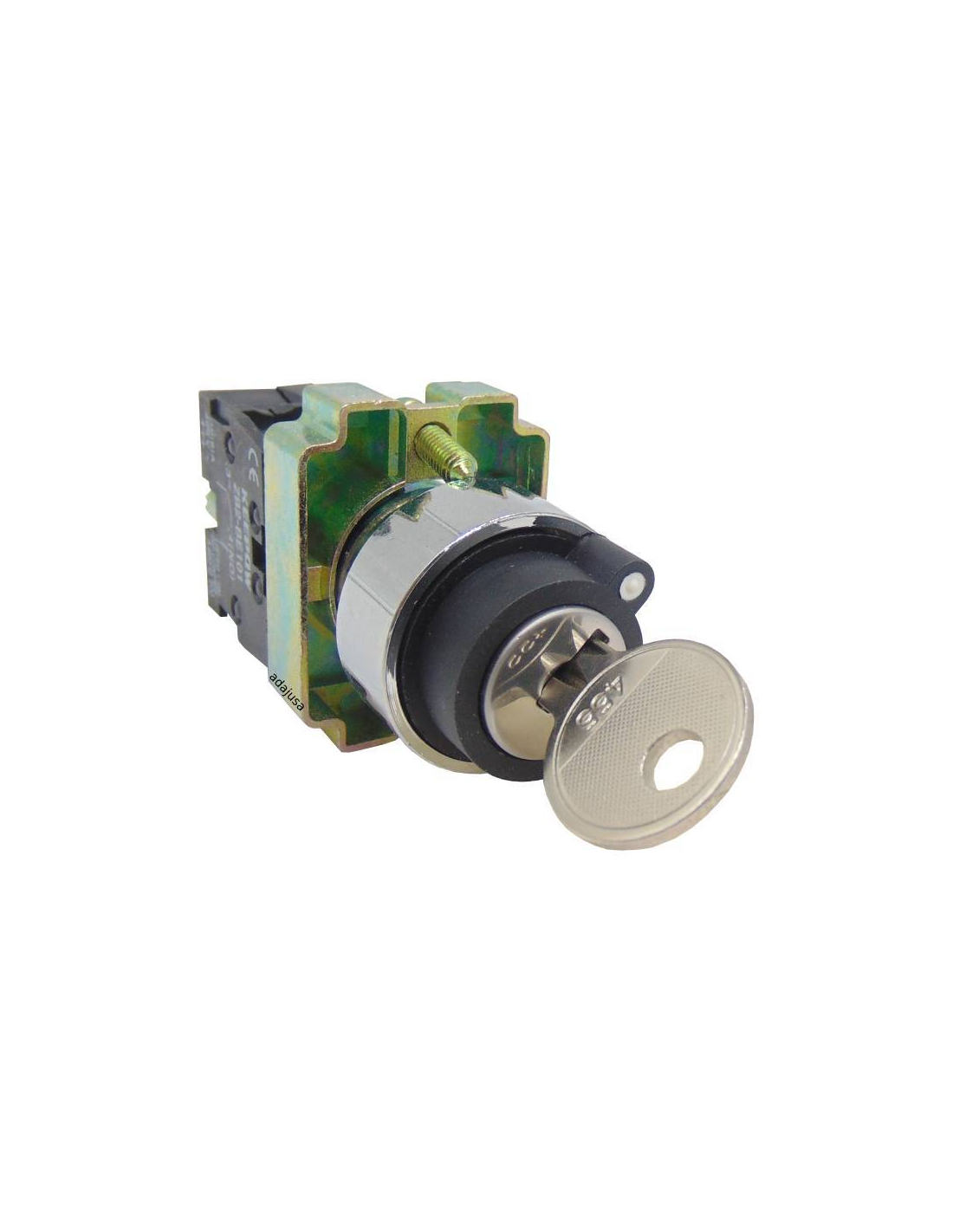

Key-operated metal selector, 2 maintained positions, 1 open contact (NO).

The supply includes the complete selector with an open contact and key.

The key can be inserted or removed only in the Left "Off" position.

Reference: NYBG21KK

1 contact selector electrical diagramPictogram electric selector key 2 positions

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Key-operated metal selector, 2 maintained positions, open contact (NO), possibility of adding additional contacts. drill diameter 22 mm.

The key can only be inserted and removed in the "Off" position, without activating, left position.

The supply includes the complete selector with an open contact and key.

characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYBG21KK
  • Color: black
  • Number of positions: 2 maintained
  • Contact : 1 open contact (NO)
  • Material: metal
  • Ith Intensity: 10(6)A
  • Intensity Ie (AC1, 230V): 6A
  • Intensity Ie (AC15, 230V): 3A
  • Intensity Ie (DC15, 250V): 0.27A
  • Ui voltage: 660V
  • Contact resistance: 50 mOh
  • Protection grade: IP42
  • Regulations: EN 60947-1; EN 60947-5-1
Key selector dimensions

Material for professional use, install in compliance with the regulations in force at the installation site.
