Rodamientos de agujas NKI-XL 12/16 12x24x16 - INA

€21.93 Tax included

€18.12 tax excl.

Needle roller bearings with machined rings. Single row with edges, with track (inner ring), dimensions 12x24x16mm. Needle roller bearings with an inner ring are used when the shaft is not manufactured as a bearing raceway.

Reference: NKI 12/16-XL

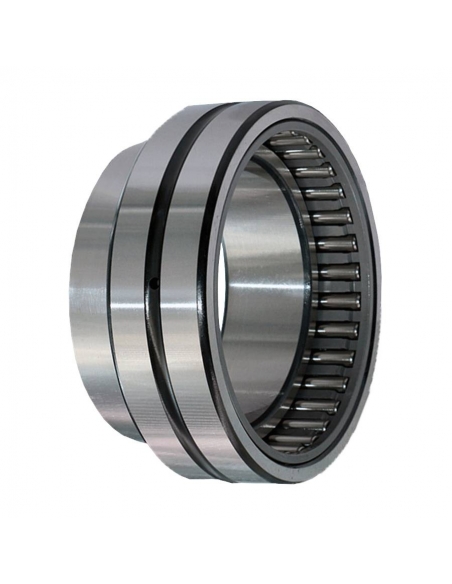

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Non-separable needle roller bearings, needle roller and outer ring form a self-retaining unit. These bearings are suitable for very high load capacities and minimal radial clearances.

For needle roller bearings with an inner ring, the radial clearance is CN according to DIN 620-4.

Manufacturer: INA
Reference: NKI 12/16-XL
Dimensions: Ø12xØ24x16mm .




Characteristics:

  • Material: hardened steel.
  • Dimensions
    • d: 12mm
    • F: 16mm
    • D: 24mm
    • B: 16mm
    • r: 0.3min
  • Load coefficients (N)
    • Dynamic C: 12800
    • Dynamic Static C0: 13900
  • Fatigue load limit (N): 2550
  • Maximum rpm: 23200

    For other references or measures consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
