Sleeves for bearings 25x45x31 mm Series H - ISB

€4.14 Tax included

€3.42 tax excl.

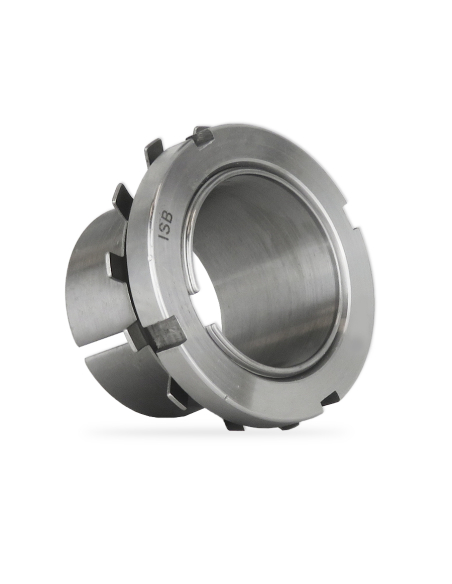

Fixing sleeves with nut and lock washer measuring 25x45x31 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 306

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.

Delivery includes one locking nut KM 6 and one lock washer MB 6

Features of the sleeves:

Manufacturer: ISB
Reference: H 306
Internal diameter (d1): 25mm
Outer diameter (d): 30mm
Outer diameter of lock nut (d3): 45mm
Cuff width (B1): 31mm
Width of nut with washer (B2): 9 mm
Nut Metric (G): M30x1.5
Weight: 0.095kg
Lock nut: KM 6
Lock washer: MB 6

Material for professional use, install in compliance with the regulations in force at the installation site.
