Digital voltimeter 48x48 DP-48V

€43.06 Tax included

€35.59 tax excl.

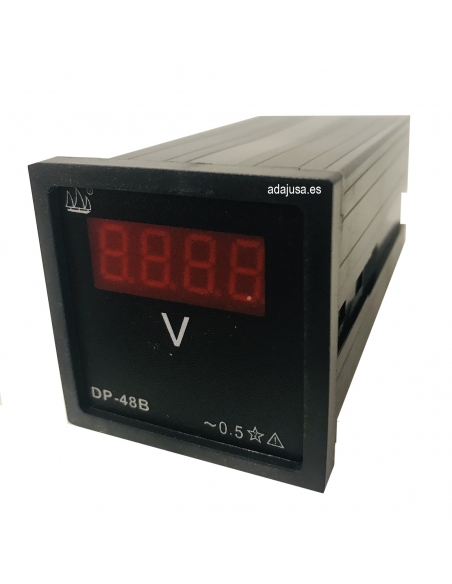

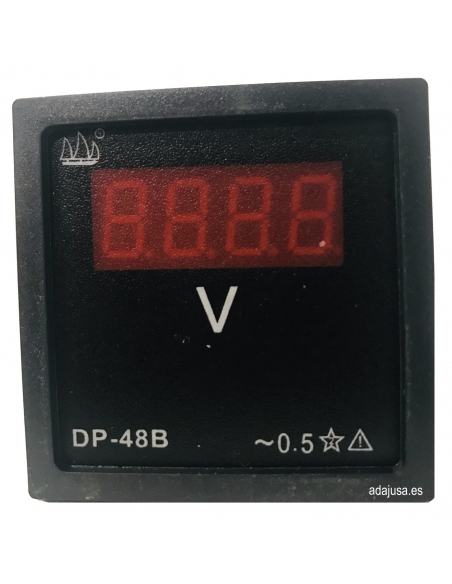

Digital voltmeter for mounting on 48x48mm panel, large LED display for easy reading.

Direct measurement between 0 and 500Vac.

Operating voltage: 230Vac.

Ref: DP-48V

Simbolo eléctrico voltímetro

No queries yet, leave the first!
Privacy
Shipments
Returns


AC measuring instrument (Voltmeter), for panel mounting. With large display and illuminated in red.

The instrument can directly measure voltages between 0 and 500V. The voltmeter has to be fed regardless of the voltage to be measured with 230Vac.

specifications:

  • Manufacturer/Supplier: Denor
  • Ref: DP-48V
  • Measurement type: AC voltage.
  • Direct measurement: 0 ÷ 500 Vac.
  • Supply voltage: 230Vac ± 10%, 50/60 Hz.
  • Consumption:
  • Reading: Using red LED display:
  • Number of digits: 4 (9999).
  • Measurement type: Class 0.5.
  • Accuracy: ±0.5% ±2 digits.
  • Dielectric resistance: Insulation voltage: 1.5kV ac between measurement terminal and power supply.
  • Insulation resistance: ≥ 100M. (500Vdc).
  • Working temperature: -10oC ÷ 50oC.
  • Storage temperature: -20oC ÷ 70oC.
  • Humidity level: 5% ÷ 80% RH non-condensing.

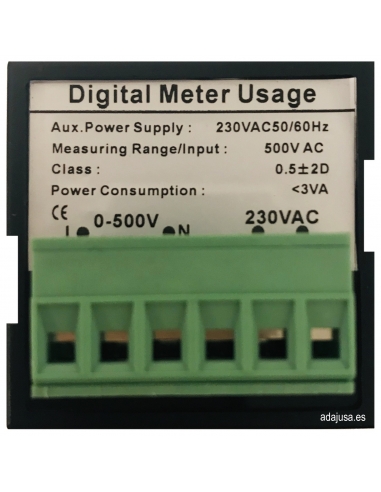

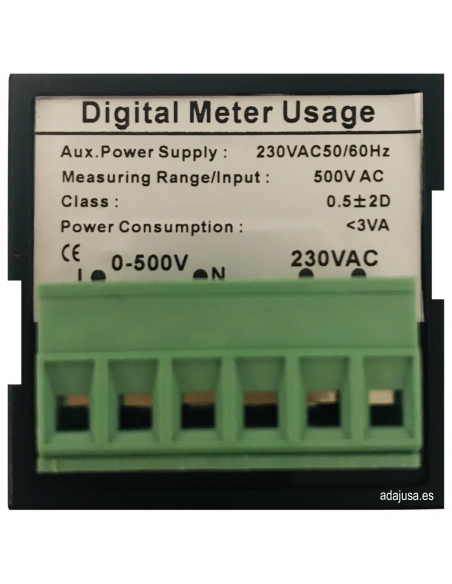

  • Connection type: screw connector.
  • Dimensions: 48x48mm.
