Solenoid valve 1/4 5 vias 3 positions 110Vac 3.5VA pressure centers - Metal Work

€127.90 Tax included

€105.70 tax excl.

1/4" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm.


Logo-Metal-Work

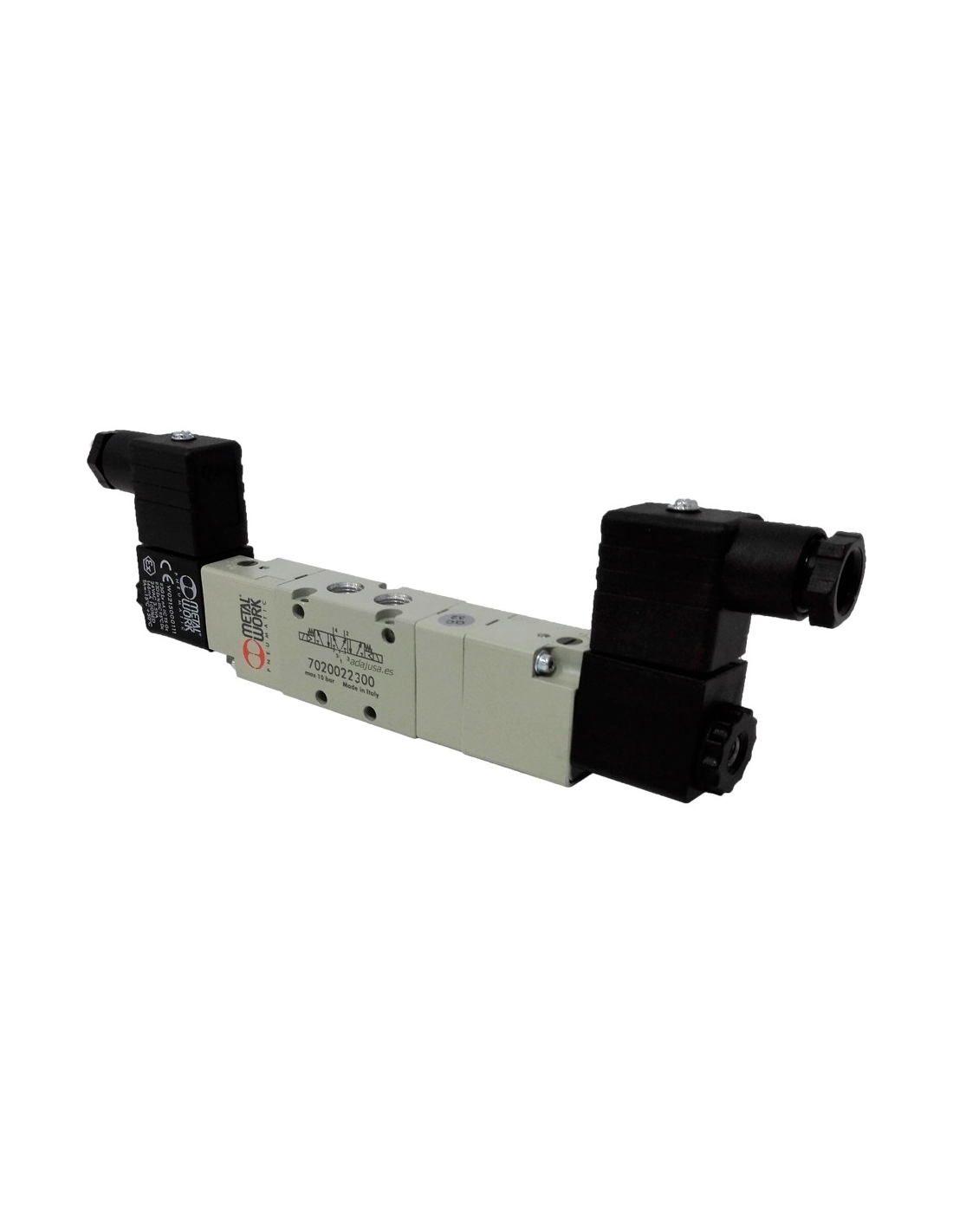

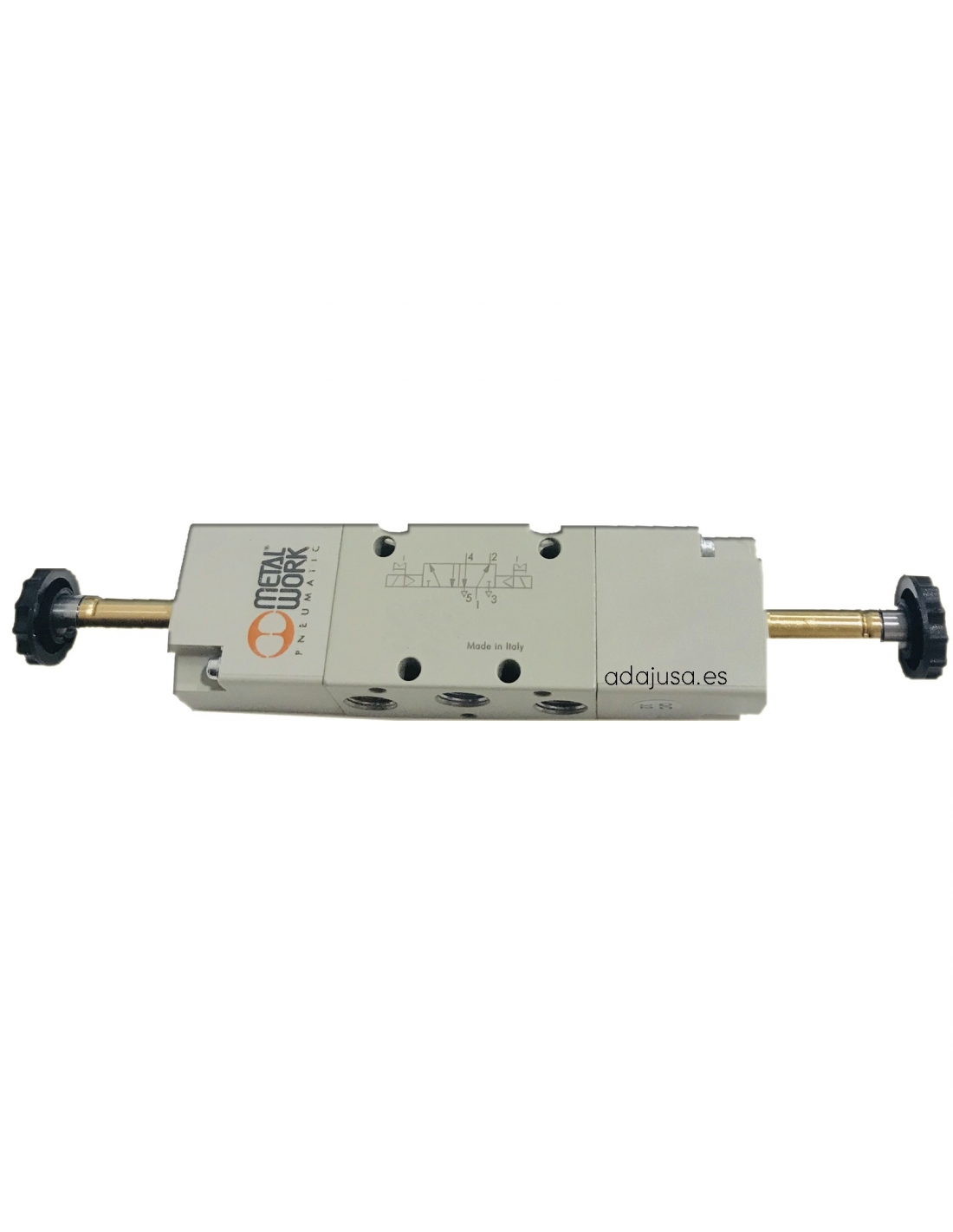

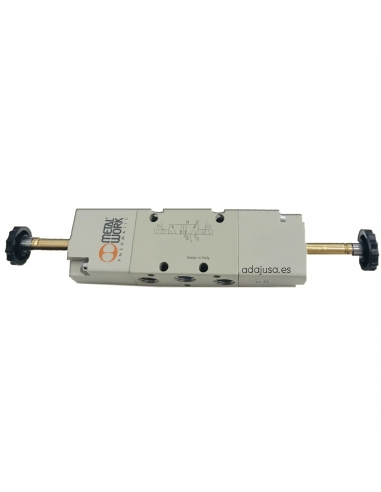

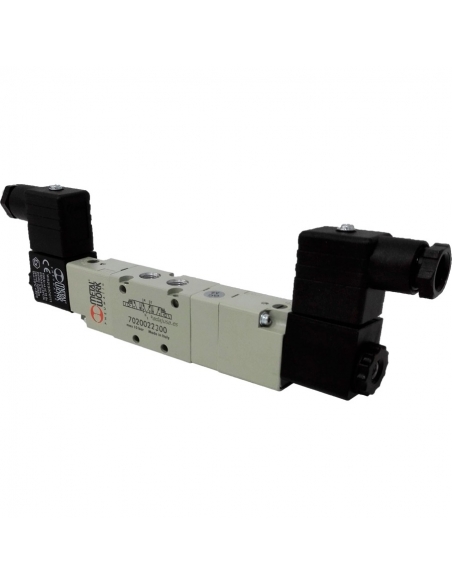

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4" 5-way, 3-position solenoid valves, pressure centers, metal body, for industrial or general pneumatic applications, the most common application is dual-effect cylinder control. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm.

22mm plastic connector

Supply includes:

  • 1 Electrovalve 1/4 5/3 centers pressure
  • 2 Coils 110Vac 3.5VA
  • 2 22mm connectors

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Solenoid valve reference: 7020022300- SOV 36 SOS PC
  • Voltage: 110Vac
  • Consumption: 3.5VA
  • Working pressure of the solenoid valve: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 5mm.
  • Flow rate at 6 bars p 1 bar: 550 Nl/min.
  • Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the data sheet by clicking on the tab "Attachments"
