4-pole connection dispatcher
Connection dispatcher 4 poles isolated 11 outputs 125a
Connection dispatcher 4 poles isolated 11 outputs 125a
Connection dispatcher 4 poles isolated 11 outputs 125a

Connection dispatcher 4 poles isolated 11 outputs 125a

€14.81 Tax included

€12.24 tax excl.

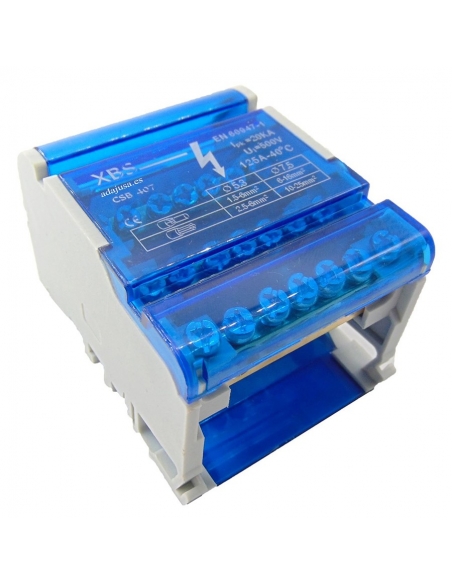

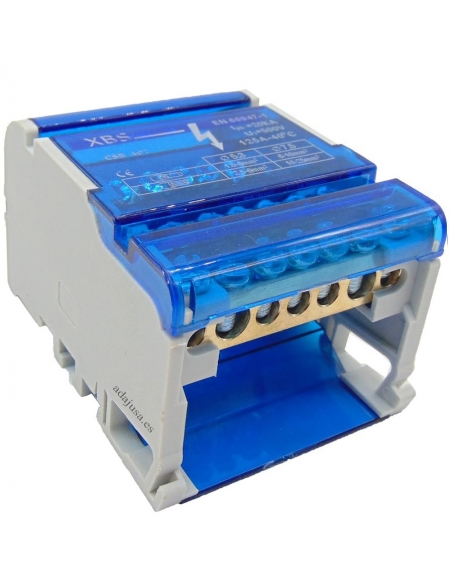

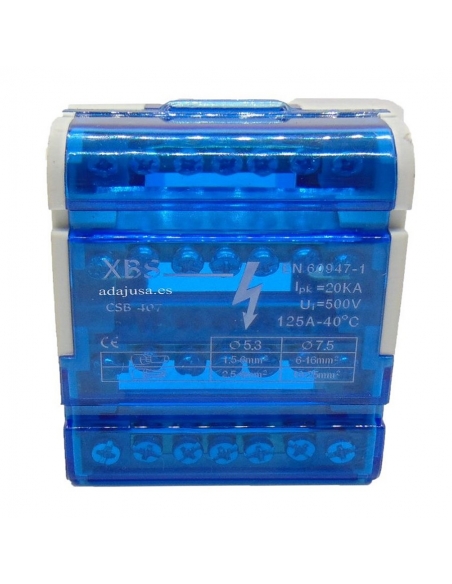

11-outlet 4-pole electrical connection dispatcher, suitable for intensities up to 125a, brass distribution bars with steel screws fixed in polyamide support and protected with polycarbonate lid. Fixing on panel or din-rail.

Reference: CSB 411





Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


isolation tetrapolar electrical connection dispatcher, with 11 outputs, for use in electrical distribution cabinets and control panels favoring wiring and improving the distribution of electrical charge and connection.

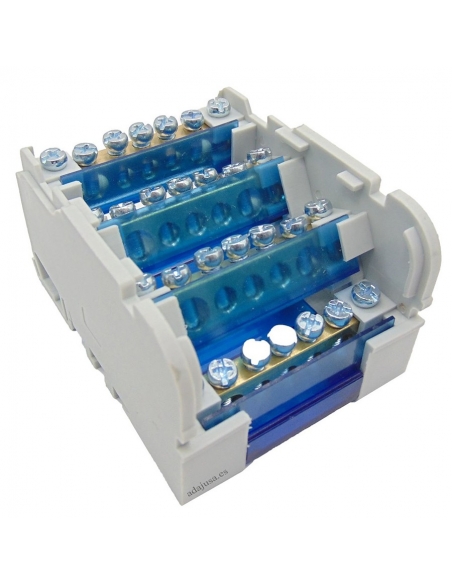

It has 4 brass distribution bars with steel screws. Distributed in 2 heights and several orientations to facilitate the connection.

Attachment to the mounting panel by screws or by din-rail. The distributor is protected with a transparent polycarbonate cap.

The connection bar has 11 outputs:

  • 7 of Ø5.3mm for cables 1.5mm² to 6mm².
  • 2 of Ø7.5mm for cables 6mm² to 16mm².
  • 2 of Ø9 mm for cables 10mm² to 35mm²

specifications:

  • Manufacturer/Supplier: XBS/Mixvill
  • Manufacturer reference: CSB 411
  • Type: Tetrapolar (4P)
  • Rated voltage:500Vac
  • Maximum intensity: 125a
  • Icc: 20 KA
  • Number of holes: 11
  • Regulations: EC, EN60947-1
  • Protection: Transparent lid in polycarbonate
  • Dimensions : Width x Height x Depth : 100x51x88mm.


Material for professional use, install respecting the regulations in force at the place of installation.
