Closed contact luminous red pushbutton (NC) complete
Closed contact luminous red pushbutton (NC) complete

Closed contact luminous red pushbutton (NC) complete

€3.84 Tax included

€3.17 tax excl.

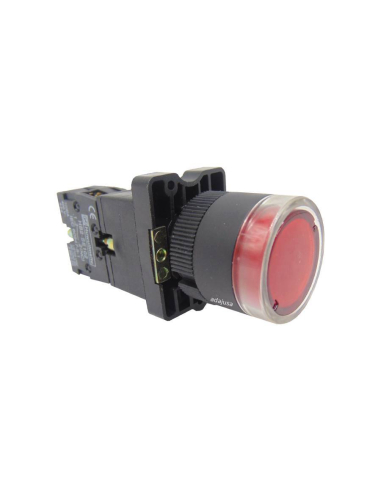

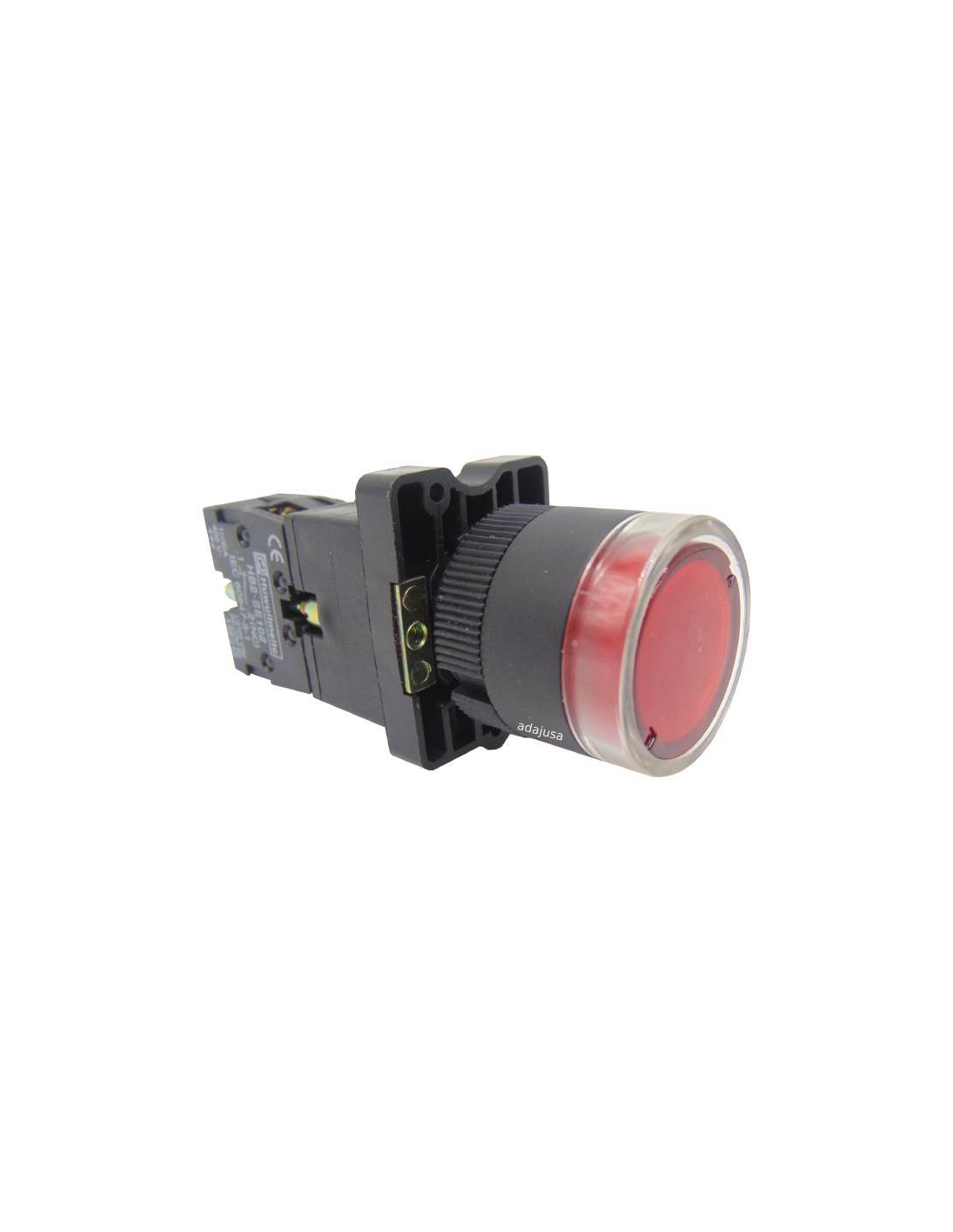

Bright red pushbutton with a closed contact (NC).

The supply includes the complete pushbutton with a closed contact.

Reference: XB2-EW3462

Esquema eléctrico pulsador luminoso rojo

No queries yet, leave the first!
Privacy
Shipments
Returns


Luminous red pushbutton with a closed contact (NC) diameter 22 mm. Possibility to add additional contacts. No voltage reducer is included, the bulb tension must match that applied. The bulb is not included.

The supply includes the full light button with a closed contact.

This pushbutton can receive additional contacts, type XB2. A maximum of 2 contacts can be installed.

Features:

  • Manufacturer/Supplier: Denor
  • Reference: XB2-EW3462
  • Color: red.
  • Registration: none.
  • Type of bushing: Ba9s.
  • Maximum bulb voltage: 380 V.
  • Contact: 1 NC.
  • Ith nomial working intensity: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 mOhm.
  • Degree of protection: IP40.
  • Equivalent reference to: XB2-BW3462; HB2-BW3462.

Dimensiones pulsador eléctrico luminoso en plástico
