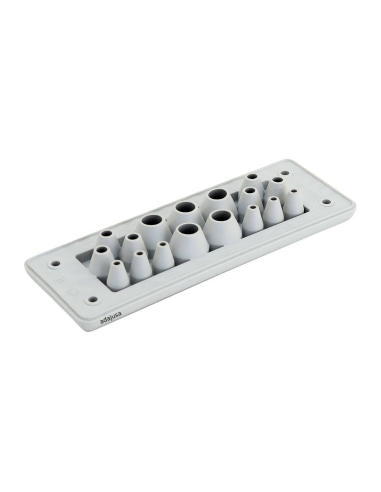

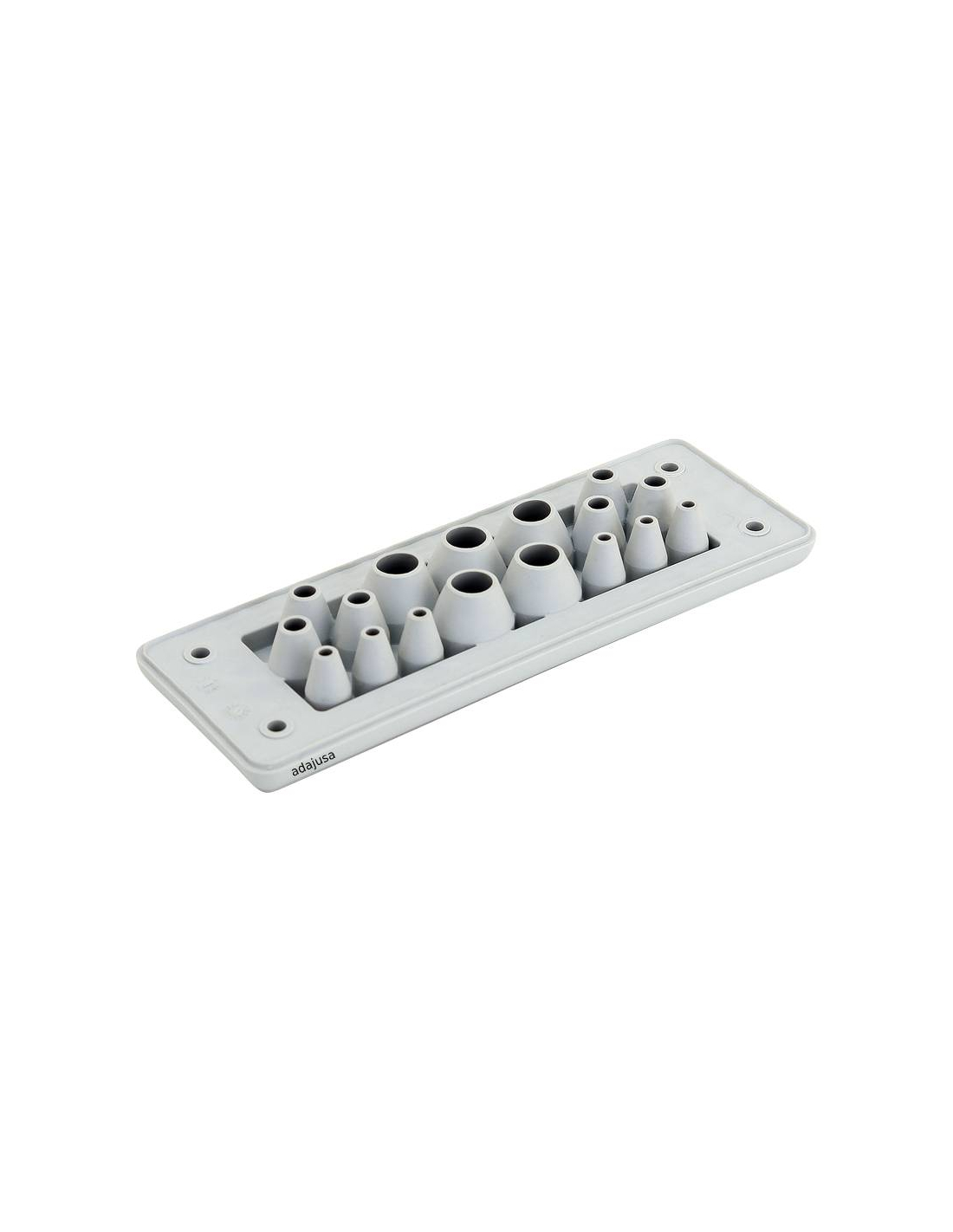

Cable gland plate with 17 entries 153x56mm for TFE Series electrical cabinets

Cable gland plate with 17 entries 153x56mm for TFE Series electrical cabinets

€21.09 Tax included

€17.43 tax excl.

Cable gland plate with 17 entries for metal cabinets of the TFE series. This element is located at the top of the cabinet allowing the entry of several cables or electrical hoses of different diameters. Metal reinforced plate.

The cable gland has 17 entries: 6 x 3...7mm, 6 x 5..10mm, 5 x 9...16mm

External dimensions of the plate 153x56mm. IP65 protection grade.



Reference: EKBV-24


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Cable passage system for electrical cabinets of the TFE series, consists of 17 entry holes. This element is easily placed on the upper part of the cabinet using screws or bolts, allowing the entry of several electrical cables or hoses of different and high density. External dimensions of the plate 153x56mm.


Once the plate is fixed on the upper part of the cabinet, it is simply necessary to make a small cut or hole on each of the membranes into which you want to insert the cable and subsequently insert it. Its design allows it to provide protection against water and splashes to the elements located inside the cabinet.

The degree of protection of the cabinet with the mounted plate for cable entry is IP65. Suitable for both indoor and outdoor mounting.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: EKBV-24
  • Number of entries or holes: 17
  • Cable diameter: 6 x 3...7mm, 6 x 5..10mm, 5 x 9...16mm
  • Core material: Sheet steel
  • Outer material: Plastic
  • Dimensions: 153x56mm
  • Working temperature: -40ºC to +100ºC
  • Protection grade: IP65


ekbv24_dimension






Material for professional use, install in compliance with the regulations in force at the installation site.
