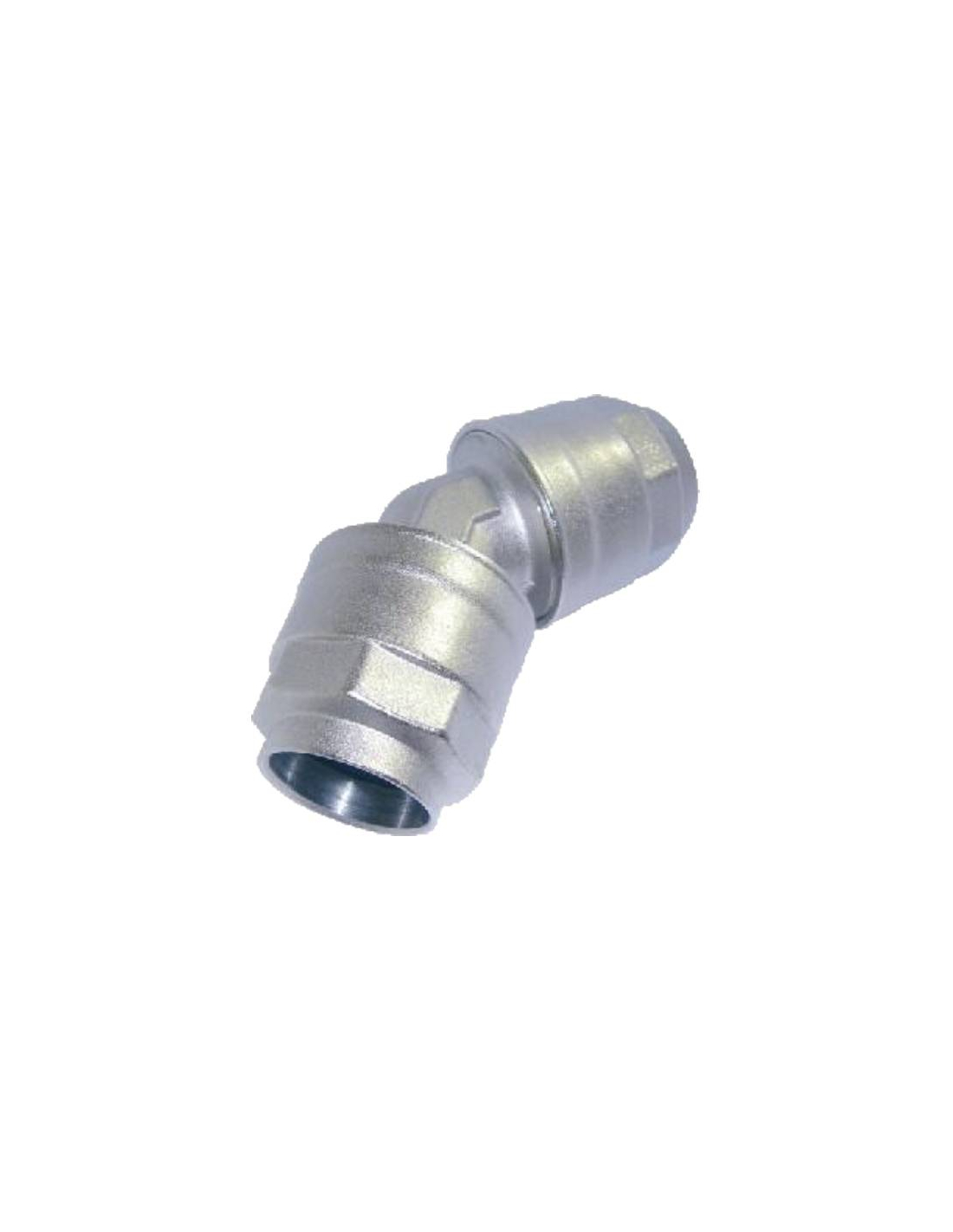

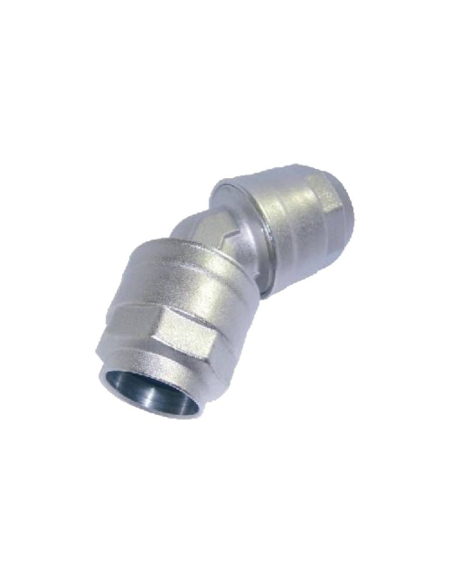

45º angled union fitting for 20mm outer diameter tube, body and nut made of nickel-plated brass, NBR O-ring. This type of "L" shaped fitting allows a simple and quick union of pipes of the same diameter in networks and installations of compressed air, vacuum and inert gases such as nitrogen and argon by having a "Push In" system. It allows the passage of total air avoiding pressure losses. Maximum working pressure 16 bar .
The 20, 25, 32 and 40mm diameter fittings come pre-assembled with the nut fully tightened, so that it is only necessary to insert the tube to the bottom of the fitting for connection or automatic assembly.
Characteristics:
- Manufacturer: Aignep
- Reference: 90140 20
- Series: Infinity
- Diameter: 20mm
- Fitting type: 45º elbow
- Material: Nickel-plated brass
- Application: Compressed air, vacuum, inert gas (nitrogen, argon)
- Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
- Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
- All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
Material for professional use, install in compliance with the regulations in force at the installation site.
