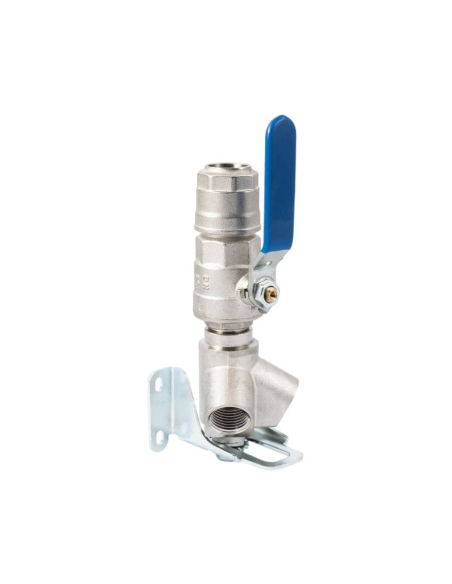

Wall outlet or wall support with distributor with two inclined outlets and two- way shut-off valve. The distributor consists of two 1/2 cylindrical female thread outlets and 1/2 cylindrical female thread inlet. The two- way shut-off ball valve operated by lever is a 1/2 male 20mm tube type.
This wall socket allows you to install, in a simple and safe way in the downpipes of a distribution network, the necessary accessories for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pipe or pneumatic hose for the use of compressed air, etc... By having a lever-operated shut-off valve, it allows the air passage to a machine or pneumatic circuit to be closed in cases where this is required.

Characteristics:
- Manufacturer: Aignep
- Reference: 90664 20 1/2
- Series: Infinity
- Number of distributor outputs: 2
- Distributor inlet thread: Female 1/2 (cylindrical gas according to ISO 228)
- Distributor outlet thread: Female 1/2 (cylindrical gas in accordance with ISO 228)
- Valve: 2- way Female 1/2 - 20mm Tube
- Material: Nickel-plated brass
- Application: Compressed air, vacuum, inert gas (nitrogen, argon)
- Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
- Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
- All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)


Material for professional use, install in compliance with the regulations in force at the installation site.
