Wall grommet transits diameters 10/8 - 6/4 Series 1000 - Aignep

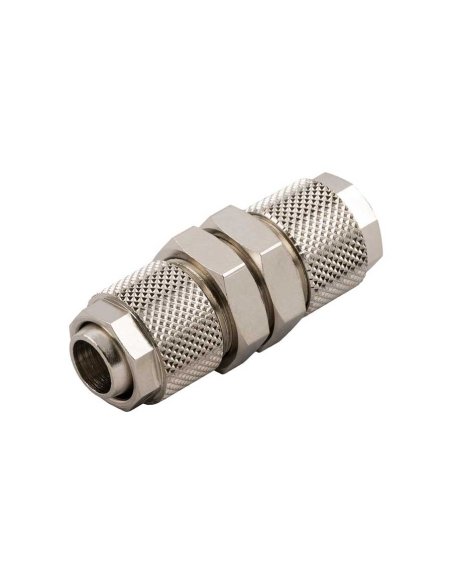

transits bushing fitting for 10/8 and 6/4 diameter tubes , M14X1 metric threaded body made of nickel-plated brass. These fittings have a wedge system that allows thermoplastic tubes to be connected with extreme security for pneumatic and fluidic applications. Its spike -type design allows for a better connection with the tube, while the hexagon of the locking nut at the top significantly simplifies manual or key locking, without elastomeric sealing elements.

These types of fittings are very useful in a multitude of applications such as compressed air, pneumatic automation, industrial water circuits, inert gases, vapors, fluids, vacuum, etc. The pressure and temperature are determined based on the tube used, therefore these values are defined based on the characteristics of the tube itself.




Mounting:

Technical characteristics:

• Manufacturer: Aignep .
• Reference: 1050 10/8X6/4
• Thread: M14X1
• Tube outer diameters: 10/8 - 6/4
• Fluid and liquids: Compatible with the connection type
• Material: Nickel-plated brass
• Connection tubes: Material PA6, PA11, PA 12, Polyethylene, Polyurethane (*) , PTFE and FEP
• Specific measurements for polyurethane tube: 8/5 - 8/5.5, 12/9
• Thread regulations:
  • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
  • Cylindrical gas according to ISO 228 Class A
  • Metric according to ISO R/262.

(*) use 90 to 98 Shore, for maximum performance 98 Shore A is recommended.

For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
