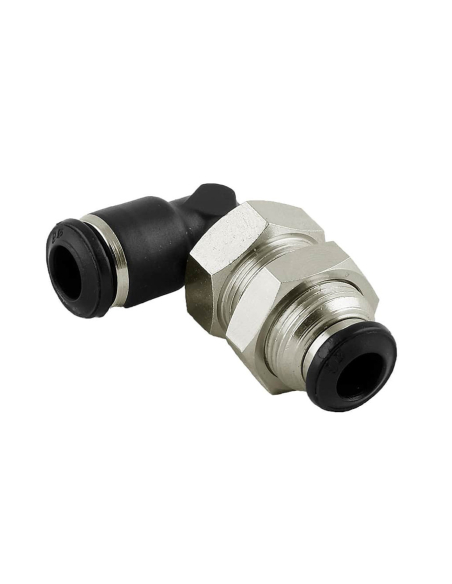

Adjustable elbow fitting for 10mm tube transits Series 55000 - Aignep

Adjustable elbow fitting transits (wall bushings) for 10mm tube. Threaded body with M20x1 thread with metal nuts included , made of technopolymer and nickel-plated brass, the extraction ring is acetal resin tube. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

• Manufacturer: Aignep .
• Reference: 55060 10
• Thread: M20x1
• Number of nuts: 2
• Tube outer diameter: 10mm
• Fluid: vacuum, compressed air and water
• Material: Technopolymer and nickel-plated brass
• Tube extractor ring: acetal resin
• retention gasket: NBR
• Clamping spring: stainless steel
• Pressure: -0.99 bar at 20 bar
• Working temperature: -20ºC to +80ºC
• Thread regulations:
  • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
  • Cylindrical gas conforming to ISO 228 Class A
  • ISO R/262 compliant metric

Material for professional use, install in compliance with the regulations in force at the installation site.
