Threaded female transits fitting 1/8 tube 8mm...
Threaded female transits fitting 1/8 tube 8mm Series 50000 - Aignep

Threaded female transits fitting 1/8 tube 8mm Series 50000 - Aignep

€3.52 Tax included

€2.91 tax excl.

1/8 threaded female transits for 8mm tube, made of chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 50000
Reference: 50055 8 1/8




aignep
normative

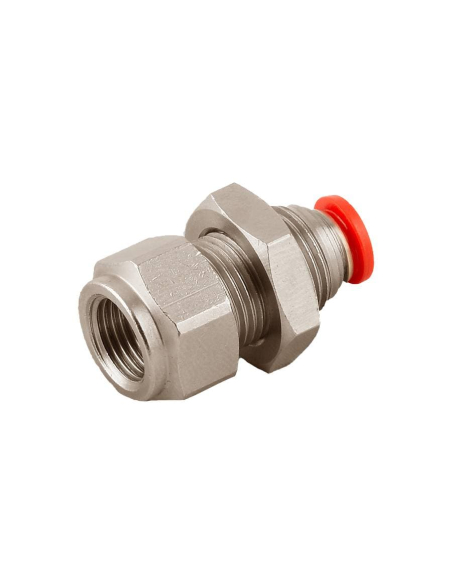

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


1/8 female threaded transits bushing fitting for 8mm tube with M16x1 metric metal nut included , made of chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications that are inaccessible to the fingers.

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 50055 8 1/8
  • Female thread: 1/8
  • Number of nuts: 1
  • Tube outer diameter: 8mm
  • Fluid: Vacuum - Compressed air
  • Operating pressure: -0.99 bar to 20 bar
  • Material: Chromed brass
  • Tube extractor ring: acetal resin
  • Clamping spring: stainless steel
  • Working temperature: -20ºC to +80ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric

50055 Esq

50055 Tab

Material for professional use, install in compliance with the regulations in force at the installation site.
