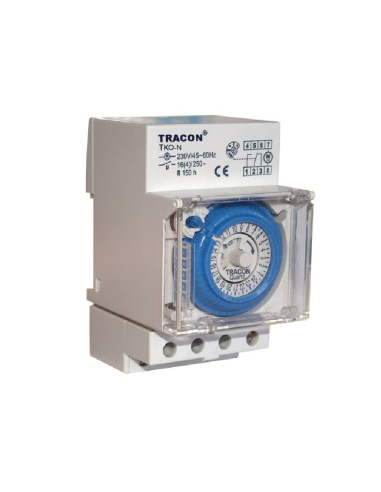

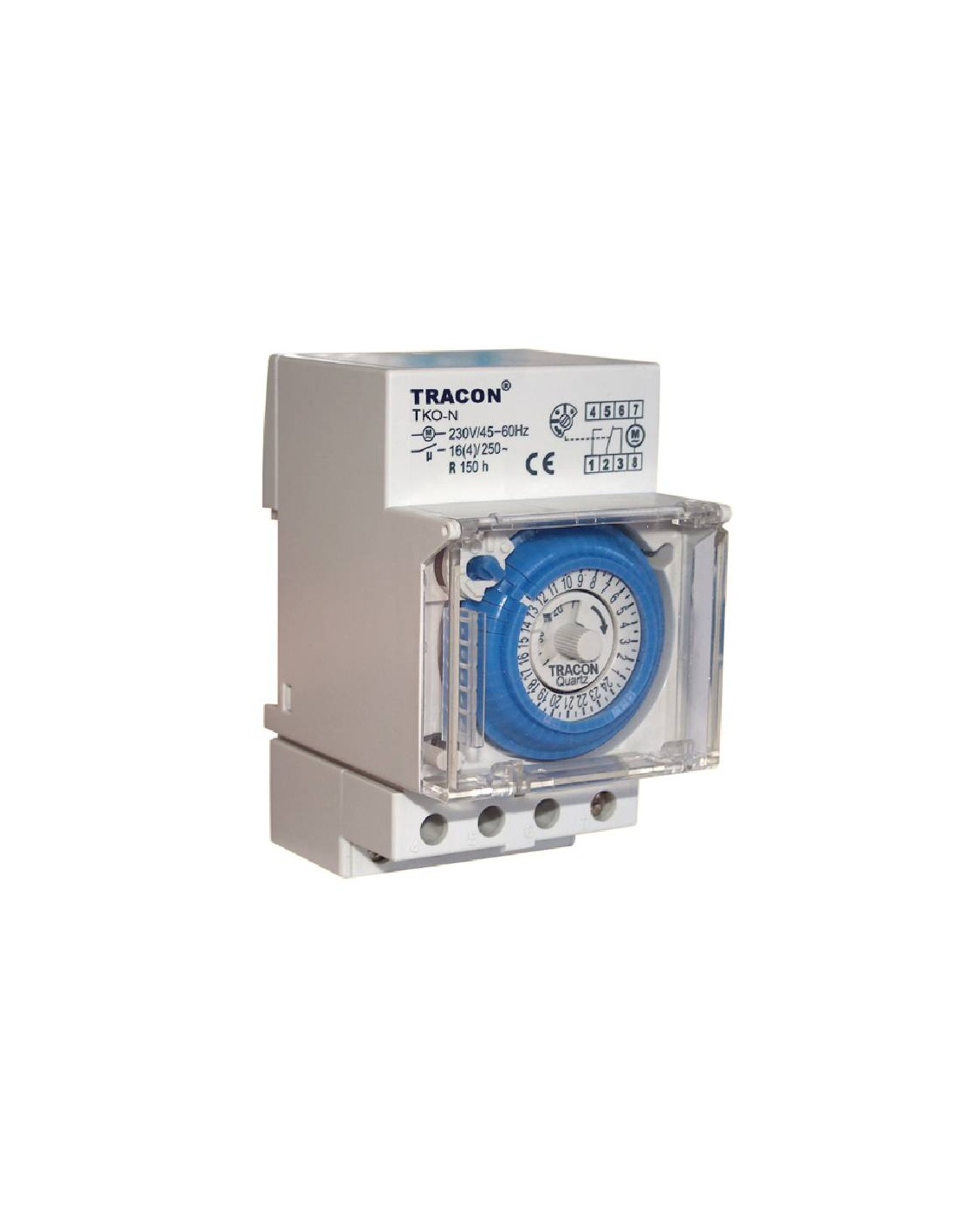

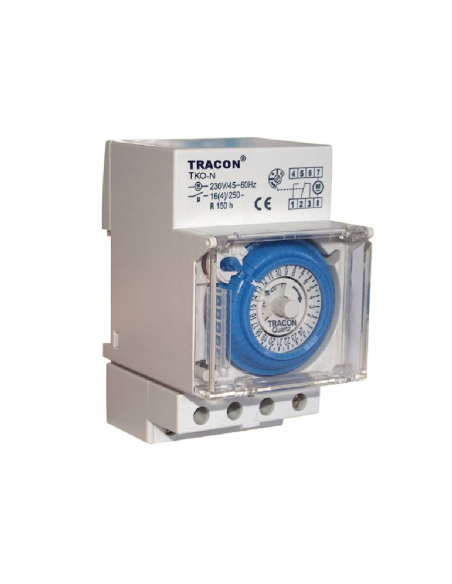

Analog DIN rail daily programmer

€40.42 Tax included

32.86 tax excl.

TKO-N

Analog daily programmable time switch with minimum switching time 30 minutes. ON-OFF switching possible independently of the time setting, manual or automatic operation mode. Shock and UV resistant housing, for indoor use.


Part no.: TKO-N


Representative image for illustrative purposes, the supplied article will correspond to the specifications indicated .

No queries yet, leave the first!
Privacy
Shipments
Returns


Analog time programmer with daily interval repetition (every day of the week) with minimum switching time of 30 minutes. Features on/off option independent of timer status, manual or automatic operation mode, potential-free changeover contact, internal battery with 150-hour power reserve.

Designed with a 3-module wide case resistant to shock and UV rays, with a sealable transparent protective cover to prevent unwanted manipulation. For indoor use.

Technical characteristics:

  • Manufacturer: TRACON
  • Part number: TKO-N
  • Type: Analog
  • Programming: Daily
  • Minimum switching time: 30 minutes
  • Voltage: 230Vac 50-60Hz
  • Rated switching current at 230Vac: 16A
  • Maximum load capacity: 1000W
  • Maximum load capacity (Cos ϕ=1): 3600W
  • Power consumption: 2.5VA
  • Quartz controlled
  • ON-OFF option independent of timer
  • Manual and automatic operation mode
  • Contact potential-free switching
  • Ambient temperature: -25 to +55ºC
  • Degree of protection: IP20
  • Standard: EN 60730








Material for professional use, install in compliance with the regulations in force at the place of installation.
