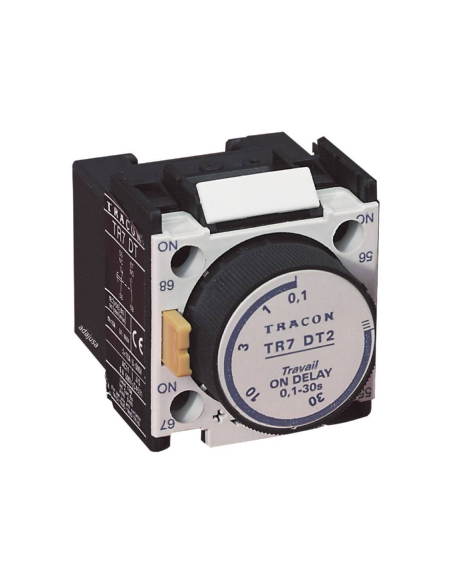

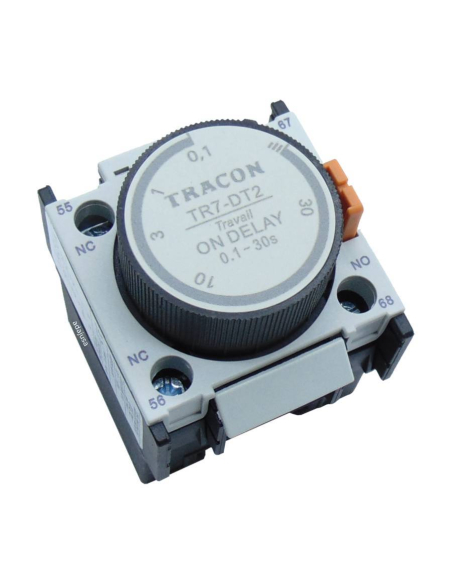

Timer 0.1-30 sec switch-on delay for contactors TR1D/TR1E Series

€12.25 Tax included

9.96 tax excl.

TR7DT2

Block timer from 0.1 to 30 seconds for switch-on delay, front mounting on TR1D and TR1E series contactors.



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Block timer from 0.1 to 30 seconds for the switch-on delay. Front mounting on contactor, it has 1 open contact and 1 closed contact (1NO + 1NC).

Once the contactor is activated, the timed contact is activated after the time "t" has elapsed.



This contact block is valid for TR1D and TR1E series contactors.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Setting range: 0.1 ... 30 sec.
  • Contacts1 open contact and 1 closed contact (1NO + 1NC)
  • Mounting mode: Front
  • Rated operating voltage (Ue): 660V
  • Rated insulation voltage (Ui): 690V
  • Thermal rated current (Ith): 10A
  • Nominal operating current (Ie): 2A
  • Working temperature: -25ºC to +50ºC
  • Degree of protection: IP20



Dimensions:






Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Buenas quería saber si este producto es compatible con el contactor telemecanique LC1 D0910

Muchas gracias
Answer
Estimado cliente,

Los temporizadores diseñados para series específicas de contactores, como TR1D/TR1E, suelen estar pensados para un acoplamiento mecánico directo y optimizado con dichos contactores. Esto facilita la instalación y asegura una conexión eléctrica adecuada para la bobina.

Un contactor de otra marca y serie, como el Telemecanique LC1 D0910 (actualmente Schneider Electric), tendrá su propio sistema de accesorios y temporizadores compatibles diseñados para encajar perfectamente en su estructura.

Conexión Eléctrica:

Aunque la función de "retardo a la conexión" es estándar, la forma en que el temporizador se alimenta y cómo entrega la señal a la bobina del contactor puede variar.

Nuestro temporizador está diseñado para interactuar eléctricamente de manera óptima con los terminales de bobina de nuestros contactores TR1D/TR1E.

Un saludo
ADAJUSA
alberto díaz Aldecoa on 05/29/2025 12:53:35
