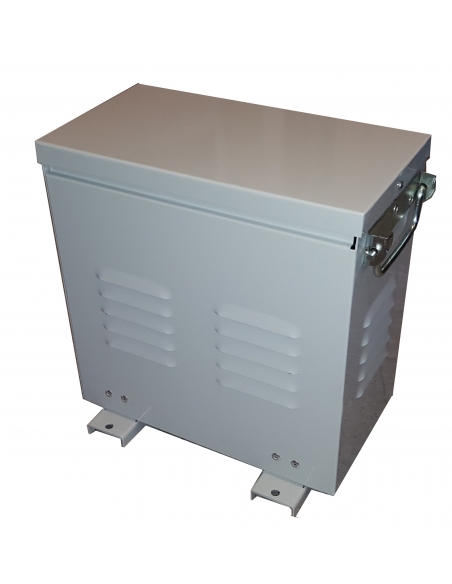

Three-phase ultra-isolation transformer for voltage change, galvanic separation of circuits or machinery, dry type, with electrostatic screen between primary and secondary.
This ultra-isolation transformer provides separation between primary and secondary circuits by means of an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground. The degree of effectiveness of this screen directly depends on the quality of the installation's grounding.

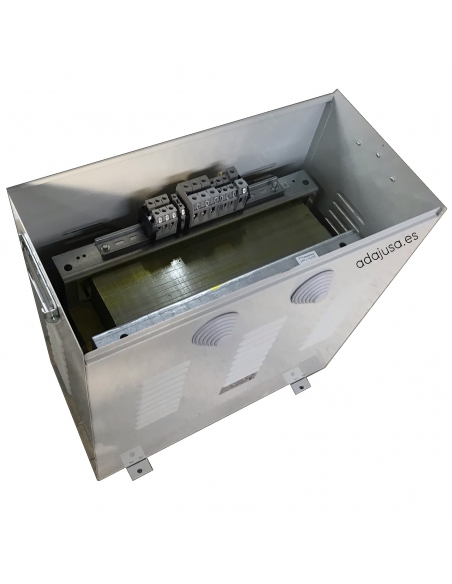

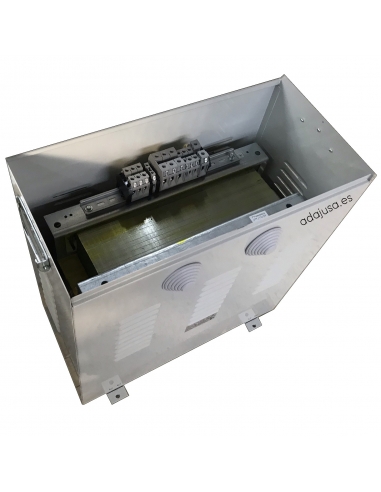

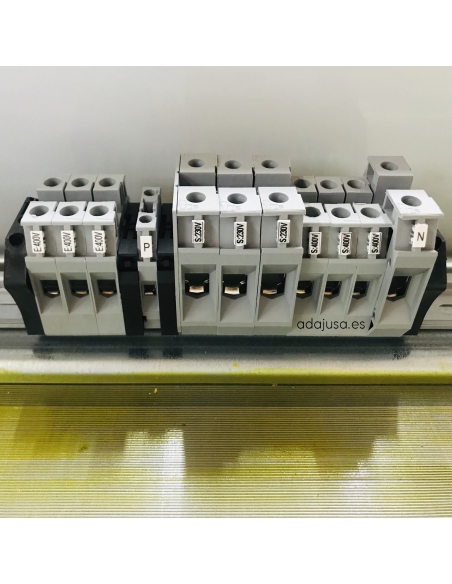

They are supplied in a metal box that provides an IP-23 insulation level, with connection via terminals. They do not include any overload protection circuit.
Manufactured with low loss magnetic sheet providing high performance.
The delta-star configuration offers multiple advantages and is ideal for electrical distribution systems in industrial installations, as it allows the supply of electrical equipment that requires balanced voltages with available neutral, the elimination/reduction of harmonics, greater efficiency in the installation and protection against ground faults. In the case of three-phase transformers with delta-star configuration and 400/400V voltages, it also allows galvanic isolation, making it ideal for industrial and commercial applications where a stable and safe power supply is required without modifying the line voltage, where it is required to maintain the same voltage between the primary and the secondary.
Harmonic Reduction : The delta connection in the primary helps to eliminate third order harmonics by making them circulate within the winding and preventing them from propagating to the network, thus reducing distortion in the electrical network and improving power quality.
Balanced power supply : On the primary side, currents are balanced even if loads on the secondary side are not. This minimizes imbalance problems in the network and improves system stability.
Greater efficiency in the installation : This is because this configuration allows balanced loads to be fed and high energy efficiency to be maintained.
Ground fault protection : If a short circuit to ground occurs on the secondary side, the primary helps limit the impact of the fault, this protects the transformer and reduces the risk of overloads and faults in the installation.
Availability of neutral in the secondary : Although the delta primary does not have a neutral, the star secondary does provide one. This allows both three-phase loads (400V between phases) and single-phase loads (230V between phase and neutral) to be fed. In networks where there is only one supply Three-phase without neutral, this transformer allows obtaining a stabilized neutral in the secondary. This facilitates the connection of loads that require a neutral reference.
Galvanic Isolation between primary and secondary : Even though both sides have the same voltage of 400V, the transformer provides electrical separation between the power supply and the load. This improves safety and helps reduce electrical noise problems.
Technical characteristics:
- Reference: TRTA63-Dyn11
- Windings: Thermal class N 200ºC.
- Primary voltage: 400Vac.
- Secondary voltage: 400Vac.
- Power: 63KVA.
- Apparent intensity:
- Frequency: 50/60Hz.
- Connection: Dyn11
- Test voltage: 3KV between windings and ground.
- Insulators: Thermal class F 155ºC YH 180ºC.
- Protection: IP-23 (Metal Box ).
- Ambient temperature: TA=25ºC.
- Cooling: ANAN (Natural air).
- Certificate: UNE-EN 61558, UNE-EN 60076.
