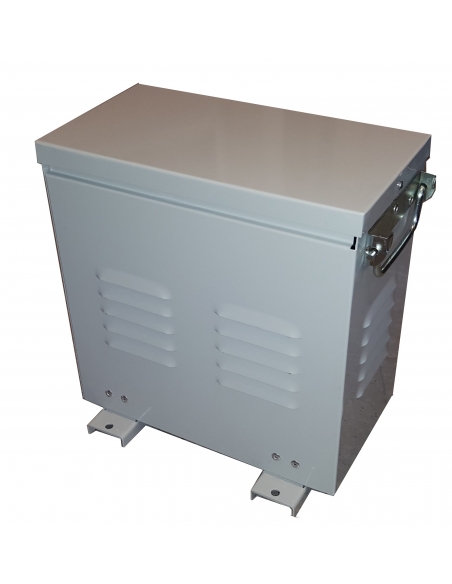

Three-phase transformer 10 KVA 400/230+N with IP23 enclosure

Special manufacturing material
€717.32 Tax included

583.19 tax excl.

TRT10-400/230

Three-phase transformer of 10kVA with metal enclosure that allows voltage adaptation between line and receiver in three-phase systems, 400Vac to 230Vac (generates neutral), star configuration of input and output windings, accessible neutral in the secondary. Mounted in a metal enclosure with IP-23 degree of protection.

Part number: TRT1-10

Esquema trasformador trifasico con pantalla 400-230

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

1 question about the product
Privacy
Shipments
Returns


Three-phase transformer for voltage change, galvanic separation of circuits or machinery, dry type. Star-connected input and output windings and accessible neutral in the secondary winding.

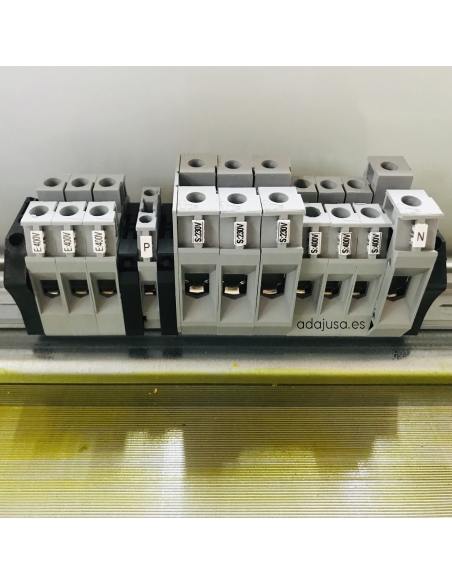

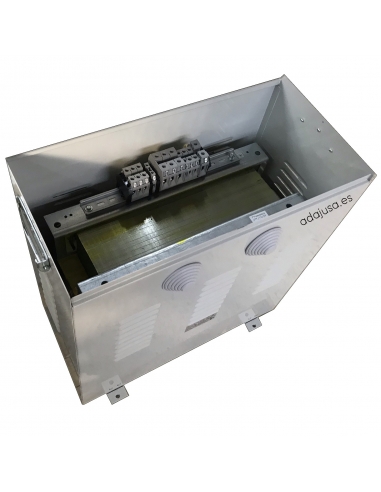

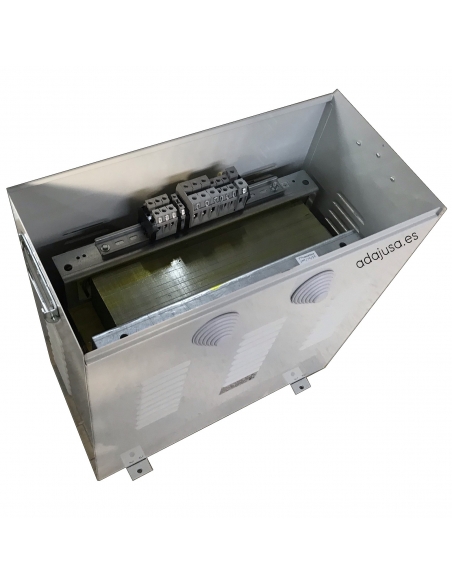

They are supplied in a metallic box that provides an IP-23 insulation degree, connection by means of terminals. No overload protection circuit is incorporated.

Manufactured with low-loss magnetic plate providing high performance.

Technical characteristics:

  • Reference: TRT1-10
  • Windings: Thermal class N 200ºC.
  • Primary voltage: 400Vac.
  • Secondary voltage: 230 Vac.
  • Power: 10KVA.
  • Apparent current
    • 400Vac: 14.4A
    • 230Vac: 25A
  • Frequency: 50/60Hz.
  • Connection: Yyn0.
  • Test voltage: 3KV between windings and ground.
  • Insulation: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metal enclosure).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certification: UNE-EN 61558, UNE-EN 60076.

Dimensiones de transformadores trifásicos

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
ATT-160 è disponibile questo articolo completo di custodia? in quanto tempo potrebbe essere spedito a Marghera Venezia? potrei avere una scheda tecnica con le caratteristiche costruttive e dettaglio della morsettiera per poter capire se sono collagabili corde da 150mmq? Grazie
Answer
L'immagine mostrata sul sito web indica il metodo di collegamento per piccoli autotrasformatori. È un'immagine generica; il collegamento per un autotrasformatore di questa potenza è diverso, logicamente adattato alla corrente che circolerà. L'autotrasformatore viene fornito con un involucro metallico con grado di protezione IP23. All'uscita dell'autotrasformatore deve essere installato un elemento di interruzione adeguato all'intensità massima che lo stesso è in grado di supportare. Materiale per uso professionale, tuttavia verificate che soddisfi le vostre specifiche.
paolo s on 05/16/2025 16:26:46
