Three-phase transformer 2 KVA 400/400+N ultra insulation with IP23 box

Special manufacturing material
€349.92 Tax included

€284.49 tax excl.

TRTA-2

Ultra-insulated 2kVA three-phase transformer with metal box that allows the adaptation of tension between line and receiver in three-phase systems, 400Va to 400Vac (generates neutral). It provides separation between primary and secondary circuits, and by means of a safety electrostatic display, filters and grounds unwanted signals and disturbances. Mounted in metal box with an IP-23 degree of protection.

Reference: TRTA-2

Esquema trasformador trifasico con pantalla 400-400


1 question about the product
Privacy
Shipments
Returns


Three-phase ultra-insulated transformer to provide galvanic separation of circuits or machinery, dry type. Star-connected and neutral input and output windings accessible in secondary winding.
Ultra-insulated three-phase transformers are equipped with an electrostatic safety display that filters and grounds unwanted signals and disturbances, providing effective line planting. The level of filtration will depend on the quality of the grounding of the installation.

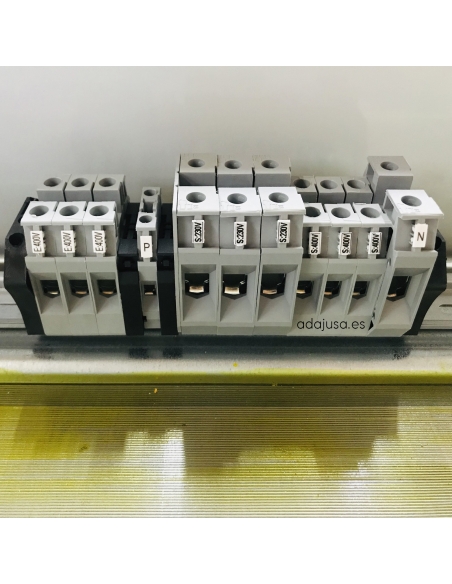

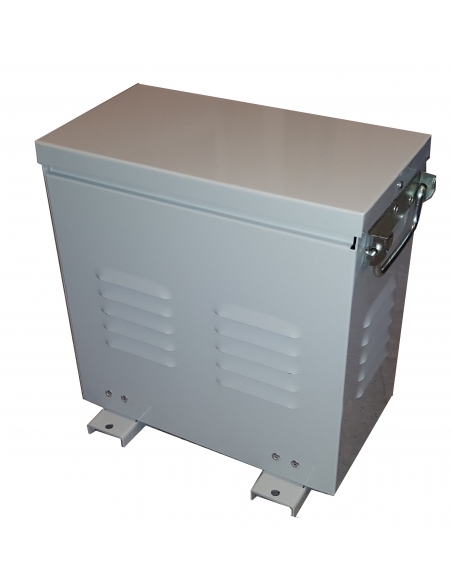

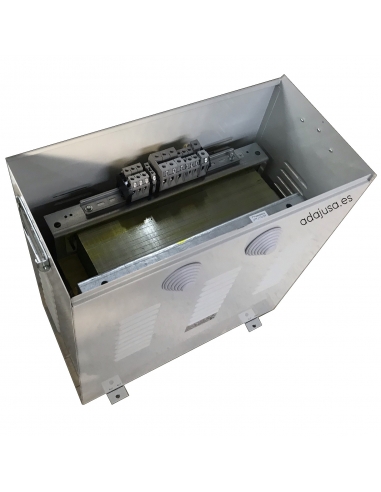

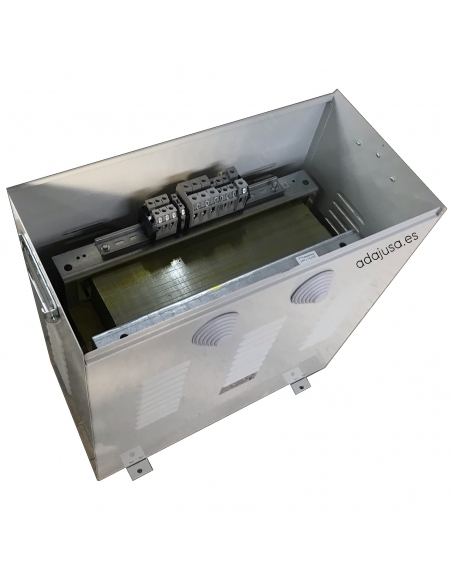

They are supplied in metal box that provides a degree of insulation IP-23, connection by terminals. It does not incorporate any overload protection circuits.

Manufactured with low loss magnetic sheet providing high performance.

Technical details:

  • Reference: TRTA-2
  • Windings: Thermal class N 200oC
  • Primary voltage: 400 Vac
  • Low voltage: 400 Vac
  • Power: 2KVA
  • Apparent intensity: 1.4 A
  • Frequency: 50/60Hz
  • Connection: Yyn0
  • Test voltage: 3KV between windings and mass
  • Insulators: Thermal class F 155oC and H 180oC
  • Protection: IP-23 (Metal Box)
  • Ambient temperature: TA-25oC
  • Cooling: ANAN (Air natural)
  • Certificate: UNE-EN 61558, UNE-EN 60076

Dimensiones de transformadores trifásicos

Questions

Question
Bom dia,

Solicito se possível o envio do datasheet em PDF do seguinte transformador TRTA -2.

Obrigado

cmpts
Answer

Bom dia,

Agradecemos o seu contacto.

Informamos que toda a informação disponível sobre o transformador TRTA-2 já se encontra publicada na nossa página web, incluindo as características técnicas detalhadas. Não dispomos de ficha técnica em PDF para envio direto.

Caso tenha alguma dúvida específica sobre o produto, teremos todo o gosto em ajudá-lo.

⚠️ Todos os nossos produtos destinam-se a uso profissional e devem ser instalados por pessoal qualificado. Recomendamos confirmar a compatibilidade com a sua aplicação antes de efetuar a encomenda.

Com os melhores cumprimentos,
Adajusa
https://adajusa.pt

Vitor Bruno Pinto Castro on 07/13/2025 11:16:01
