Three-phase to single-phase transformer 2.5 KVA 400/230Vac with case

Special manufacturing material
€378.90 Tax included

€308.05 tax excl.

TRTM2,5

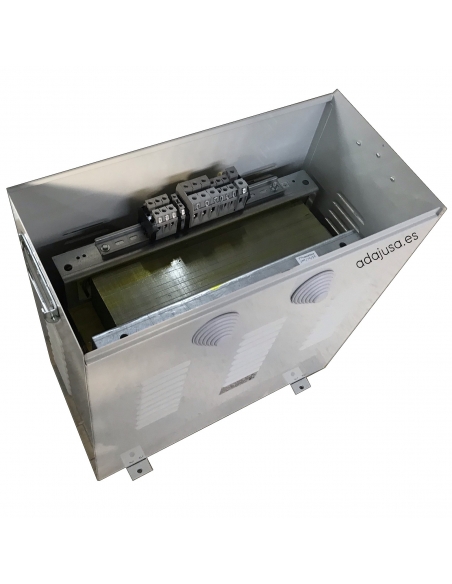

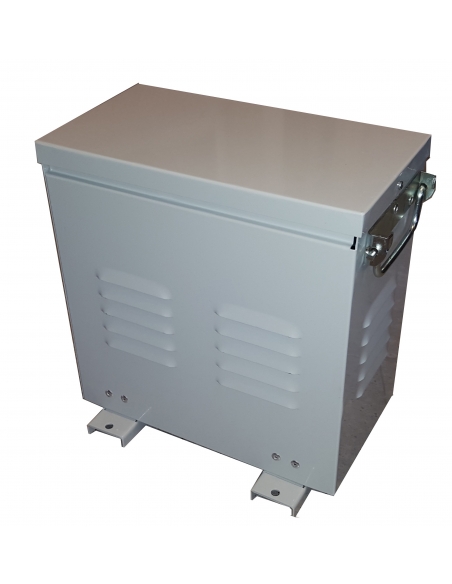

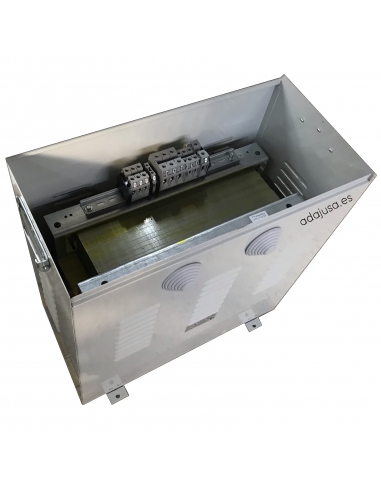

Three-phase to single-phase 2.5kVAtransformer with IP23 metal enclosure, allows the adaptation of three-phase to single-phase lines and 400Vac to 230Vac voltages. It provides galvanic isolation.

This type of transformers are not reversible, i.e. they cannot transform a single-phase line to three-phase.

Reference: TRTM2,5

Esquema_Transformador_trifasico_monofasico


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Transformer adapter for three-phase 400Vac to single-phase 230Vac lines, galvanic isolation, dry type.

Phase distribution of 50%-25%-25% load. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals. No overload protection circuit is incorporated.

Manufactured with low loss magnetic sheet and with wire windings of copper, providing high performance.

Attention: This type of transformers are not reversible, i.e. they cannot transform a single-phase line into a three-phase line.

Technical characteristics:


  • Reference: TRTM2,5
  • Primary voltage: three-phase 400Vac.
  • Secondary voltage: Single-phase 230Vac.
  • Power: 2,5KVA.
  • Frequency: 50/60Hz.
  • Windings: Thermal class N 200ºC.
  • Test voltage: 5KV between windings and 3KV between windings and ground.
  • Insulators: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metal enclosure).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certification: UNE-EN 61558, UNE-EN 60076

Dimensiones_transformador_trifasico_monofasico

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Bonjour , pouvez vous me dire la protection qu'il faudra mettre en entrée du transformateur . Cordialement Mr EGLOFF
Answer
Bonjour,

Pour la protection à l’entrée du transformateur doit mettre un magnéto-thermique qui dépendra de la section du câble. Si le câble est de 1.5mm2 une courbe magnétothermique C de 10A, si le câble est de 2.5mm2 une courbe magnétothermique C de 16A. À la sortie du transformateur doit également le protéger avec un magnétothermique courbe C de 2A .

Cordialement
Christophe on 11/30/2022 09:21:14
