Three-phase motor 3Kw 4HP 230/400V 3000 rpm IE2 Flange B3 foot

€255.23 Tax included

€210.93 tax excl.

Free shipping!

Three-phase electric motor 3kW (4HP) 230/400V 3000 rpm (2 Poles) Flange B3 foot, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230/400Vac 50/60Hz.
  • Number of poles: 2.
  • Revolutions: 3000 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 28mm.
  • Power: 3Kw - 4HP.
  • Size: 100.
  • Energy efficiency: IE2

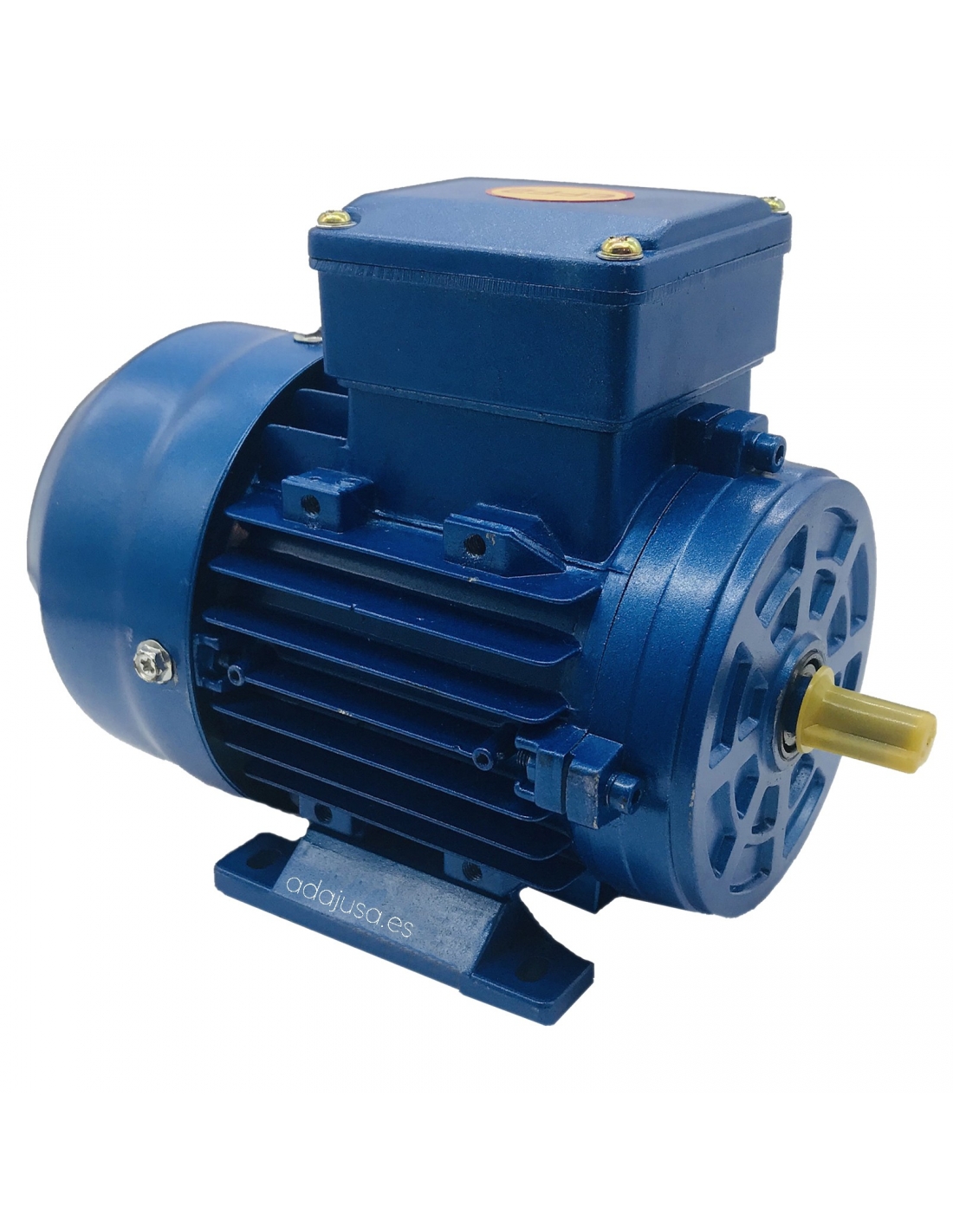

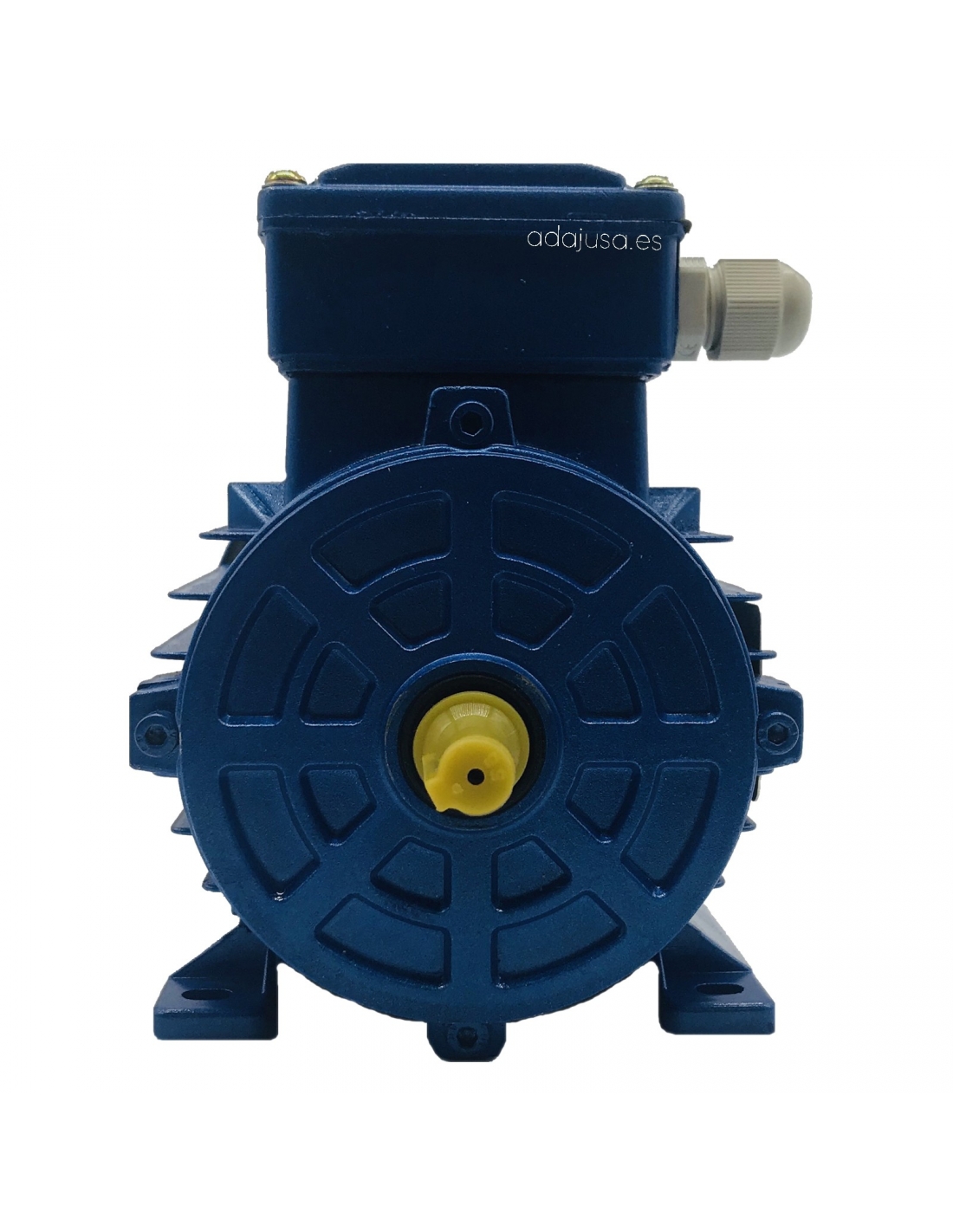

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 3kW (4HP) 230/400V 3000 rpm B3 Flange (Legs). Manufactured in cast aluminum, removable legs.
Standard three-phase electric motors for general uses, manufactured under European IEC standards in aluminum with removable legs. Winding in enameled copper with a isolation class F. The execution of the housing is closed, has retainer on the output shaft which gives it a degree of protection IP55

characteristics:

  • Manufacturer/Importer: Motorseg/ALREN
  • Part number: ALH100L2B34E2
  • Motor type: squirrel cage asynchronous.
  • Efficiency: IE2
  • Voltage: 230/400 V. III. 50/60 Hz.
  • Number of poles: 2.
  • Revolutions: 3000 (2870).
  • Power: 3 Kw (4 HP).
  • Current: 11.1/6.4 A.
  • Efficiency: 82%
  • Continuous duty: S1.
  • Degree of protection: IP55.
  • Type of fastening: B3 Flange Legs
  • Shaft diameter: Ø28mm
  • Housing size 100 (100L).
  • Color: Blue.
  • Housing material: Aluminum.
  • Weight: 22 Kg.
  • CE marked.

For more information, other powers or executions, please consult.
As in all asynchronous electric motors, the installation of a motor circuit-breaker is mandatory to avoid damage due to overload.

Tabla de dimensiones motores electricos B3
For further information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems.
