Three-phase motor 3kW-4HP 3000 rpm 400/690V Flange B14 IE3 - SIMOTICS FL Siemens

€486.89 Tax included

€402.39 tax excl.

Free shipping!

Three-phase electric motor 3kW (4HP) asynchronous 400/690Vac, 2 poles (3000 rpm) with B14 flange. IE3 energy rating. SIMOTICS Flow series from Siemens . This series of motors is ideal for standard applications, such as pumps, fans, conveyor belts... It can be connected directly to the electrical network and also through frequency converters.

Manufactured by SIEMENS , SIMOTICS FL series in aluminium.


Reference: 1LE0323-1AA4-3KA4

Logotipo Siemens

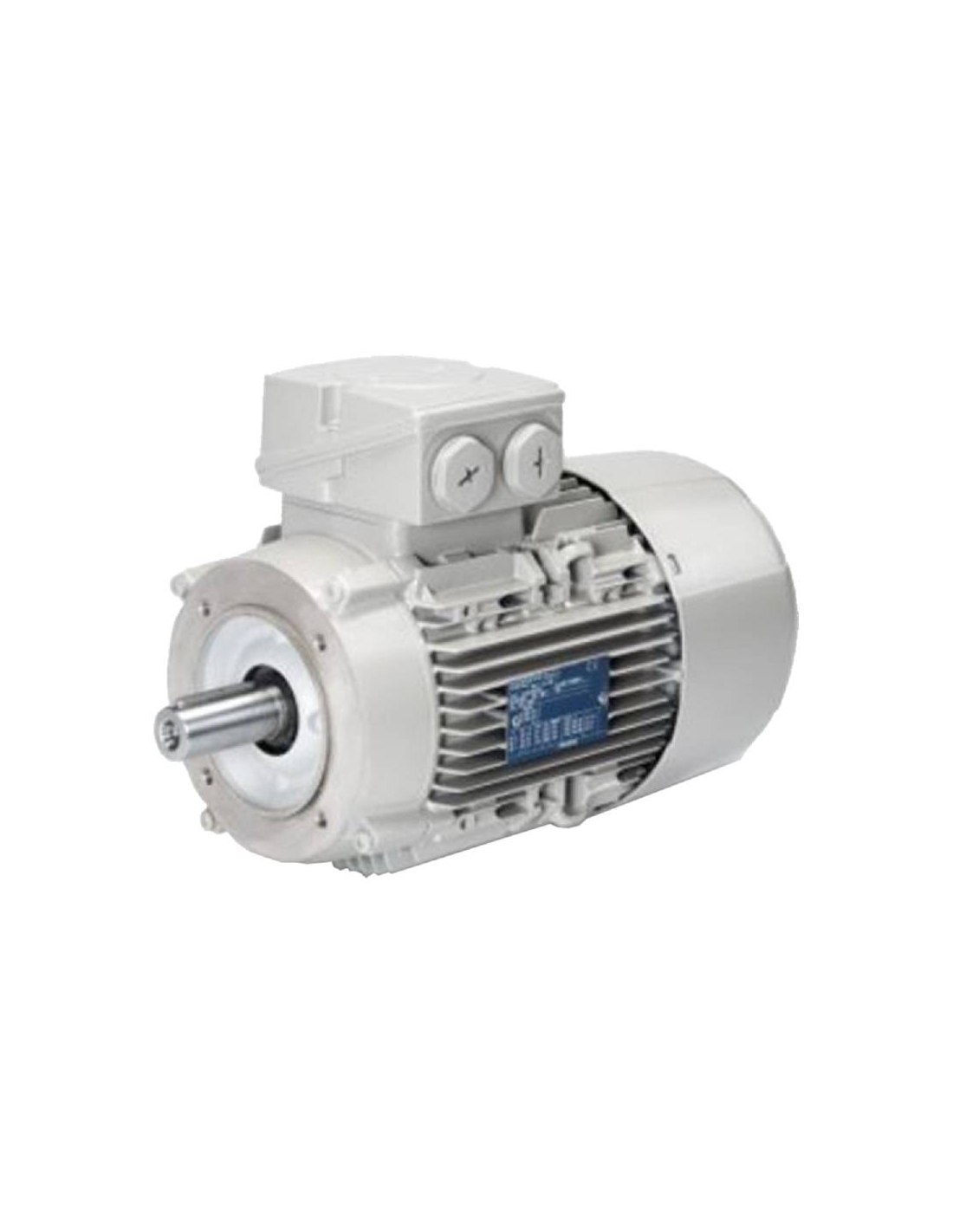

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase electric motor 3kW (4HP) asynchronous 400/690Vac, 2 poles (3000 rpm in synchronism) with B14 flange. SIMOTICS Flow series from Siemens . This series of motors is ideal for standard applications, such as pumps, fans, conveyor belts... It can be connected directly to the electrical network and also through frequency converters.

The efficiency class is IE3 and allows a standard connection of the motor to the electrical network or to be controlled by means of a frequency converter, both through V/f control and vector control.
Manufactured with a cast aluminum casing.

Characteristic:
  • Manufacturer: SIEMENS
  • Series: SIMOTICS FL
  • Reference: 1LE0323-1AA4-3KA4
  • Motor type: asynchronous squirrel cage
  • Voltage: 400/690 V. III. 50/60Hz
  • Power: 3 kW (4 hp)
  • Rated torque: 10Nm
  • Rated current: 5.7A at 400Vac
  • Maximum starting current: 7.8A at 400Vac
  • Power factor: 0.87
  • Number of poles: 2
  • Spin speed: 2875rpm
  • Energy rating: IE3
  • Degree of protection: IP55
  • Fastening type: Flange B14
  • Shaft diameter: Ø28mm
  • Flange diameter: Ø160mm
  • Shell size 100L
  • PAM flange: 160/28
  • Gray
  • Housing Material: Aluminum
  • Weight: 29kg
  • CE marking


Dimensions:





1) Measured across bolt heads
2) This dimension is assigned in DIN EN 50347 to the stated frame size


For more information, you can download the technical sheet by clicking on the "Annexes" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
