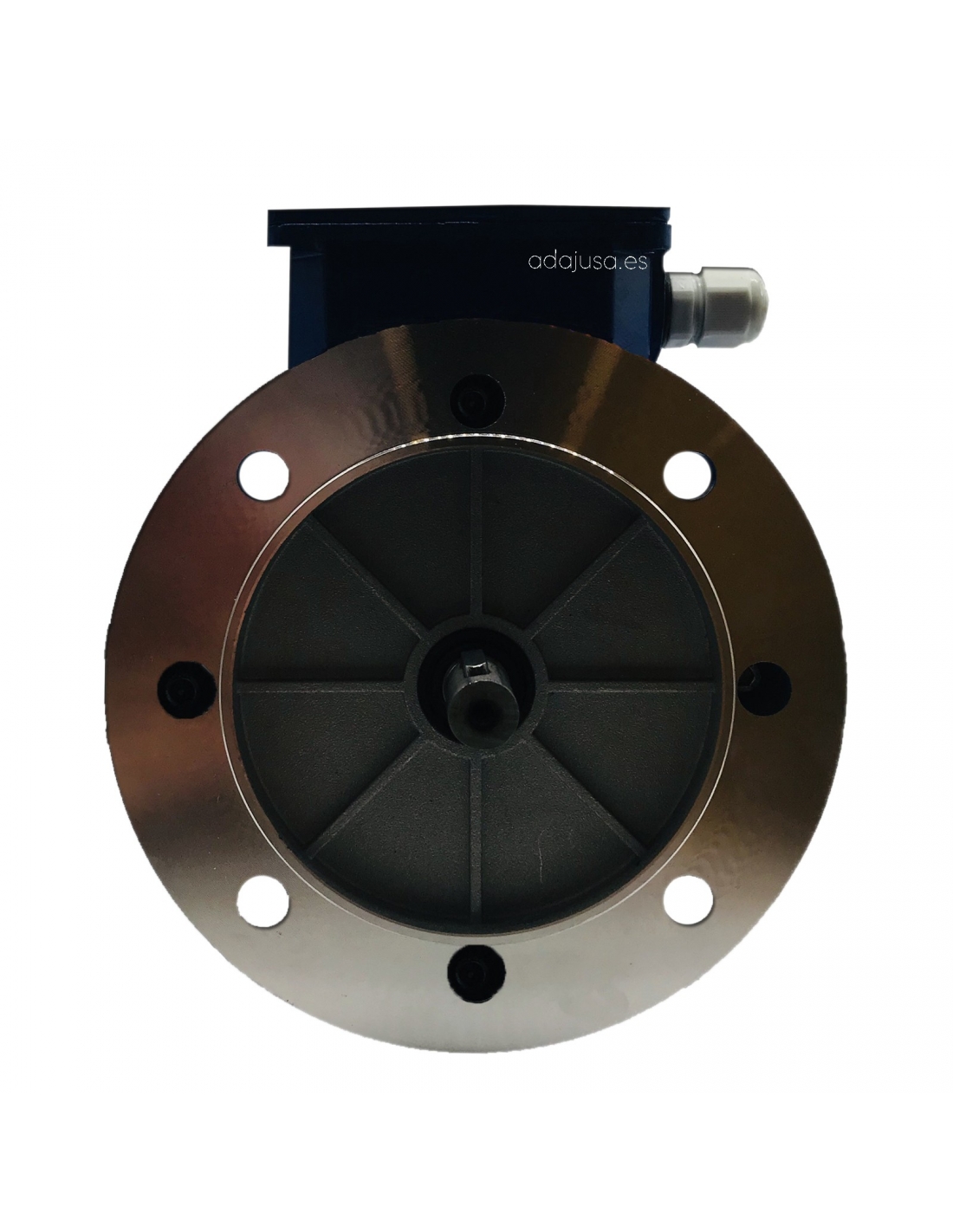

Three-phase motor 5.5Kw 7.5HP 400/690V 1500 rpm IE1 Flange B5 reduced housing
Three-phase motor 5.5Kw 7.5HP 400/690V 1500 rpm IE1 Flange B5 reduced housing
Three-phase motor 5.5Kw 7.5HP 400/690V 1500 rpm IE1 Flange B5 reduced housing
Three-phase motor 5.5Kw 7.5HP 400/690V 1500 rpm IE1 Flange B5 reduced housing
Three-phase motor 5.5Kw 7.5HP 400/690V 1500 rpm IE1 Flange B5 reduced housing
Three-phase motor 5.5Kw 7.5HP 400/690V 1500 rpm IE1 Flange B5 reduced housing

Three-phase motor 5.5Kw 7.5HP 400/690V 1500 rpm IE1 Flange B5 reduced housing

€340.77 Tax included

€281.63 tax excl.

Three-phase electric motor 5.5kW (7.5CV) asynchronous 400/690V 1500 rpm Flange B5. Reduced aluminum housing.

  • Voltage: 400/690Vac 50/60Hz.
  • Reference: SS-112M1-4 B5 4/6 CR
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B5.
  • Shaft diameter: 28mm.
  • Flange diameter: 250mm
  • Power: 5.5Kw - 7.5hp.
  • Size: 112M.
  • Energy efficiency: IE1.



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 5.5kW (7.5hp) 400/690V 1500 rpm Flange B5. Made of reduced aluminium casting.
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SS-112M1-4 B5 4/6 CR
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1
  • Voltage: 400/690 V. III. 50/60 Hz.
  • Number of poles: 4.
  • Revolutions: 1500 (1440).
  • Yield: 85.5%
  • Power: 5.5Kw (7.5CV)
  • Current: 12/ 6.9A
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B5
  • Shaft diameter: Ø28mm
  • Flange diameter: 250mm.
  • Housing size 112 (112M1).
  • PAM flange: 250/28.
  • Color: Blue.
  • Housing material: Aluminum.
  • Weight: 44 Kg.
  • CE marking.

For more information, other powers or executions consult.

As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Tabla motores B5-B14 aluminio

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.

Material for professional use, install in compliance with the regulations in force at the installation site.
