Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot
Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot
Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot
Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot
Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot
Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B3 foot

Three-phase motor 4Kw 5,5HP 230/400V 1500 rpm IE2 Flange B3 foot

€366.98 Tax included

€303.29 tax excl.

Free shipping!

Three-phase electric motor 4kW (5.5HP) 230/400V 1500 rpm (4 Poles) Flange B3 legs, aluminum casing. Manufactured under European IEC regulations.

  • Voltage: 230/400Vac 50/60Hz.
  • Number of poles: 4.
  • Revolutions: 1500 rpm.
  • Flange: B3 Legs.
  • Shaft diameter: 28mm.
  • Power: 4Kw - 5.5HP.
  • Size: 112.
  • Energy efficiency: IE2

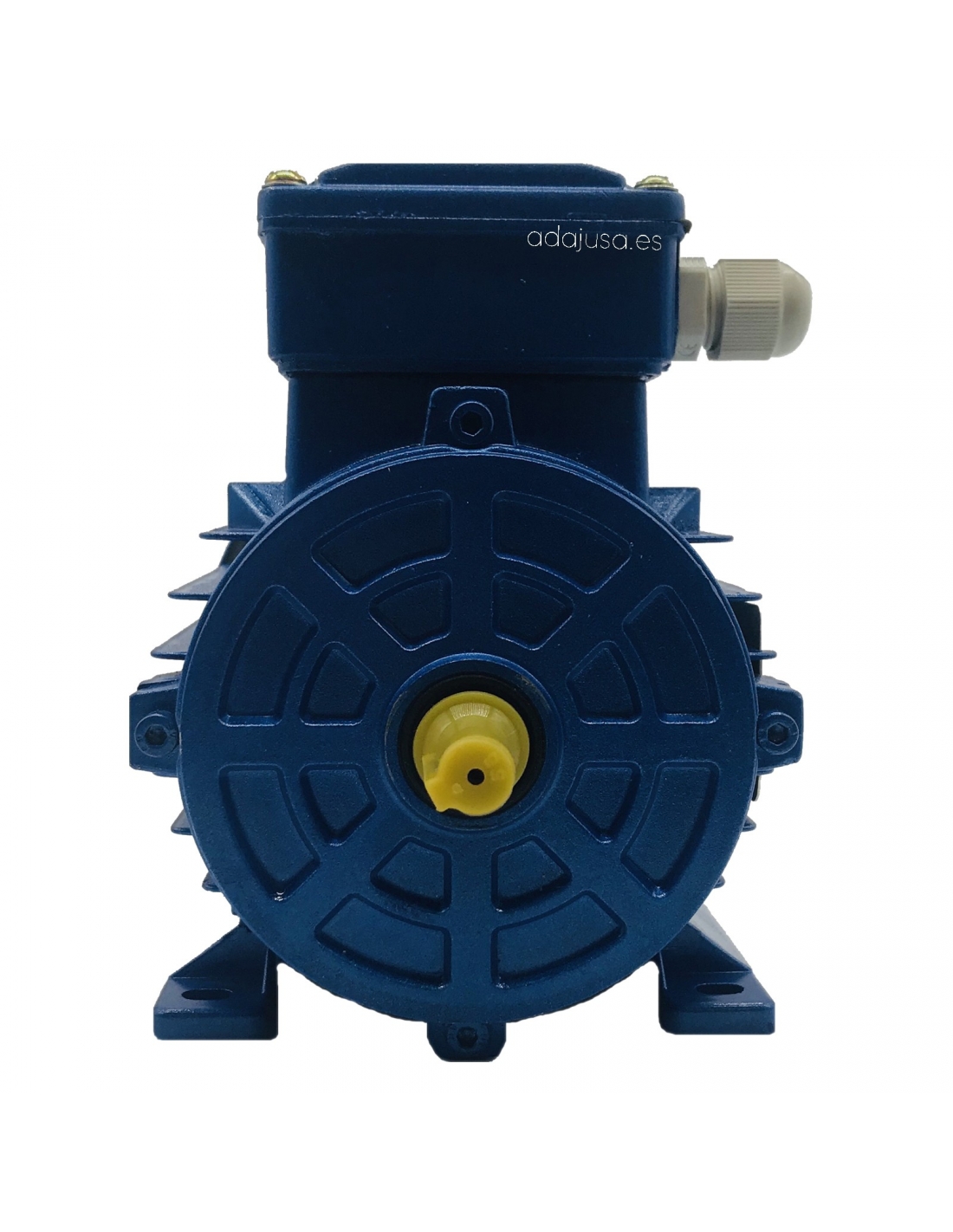

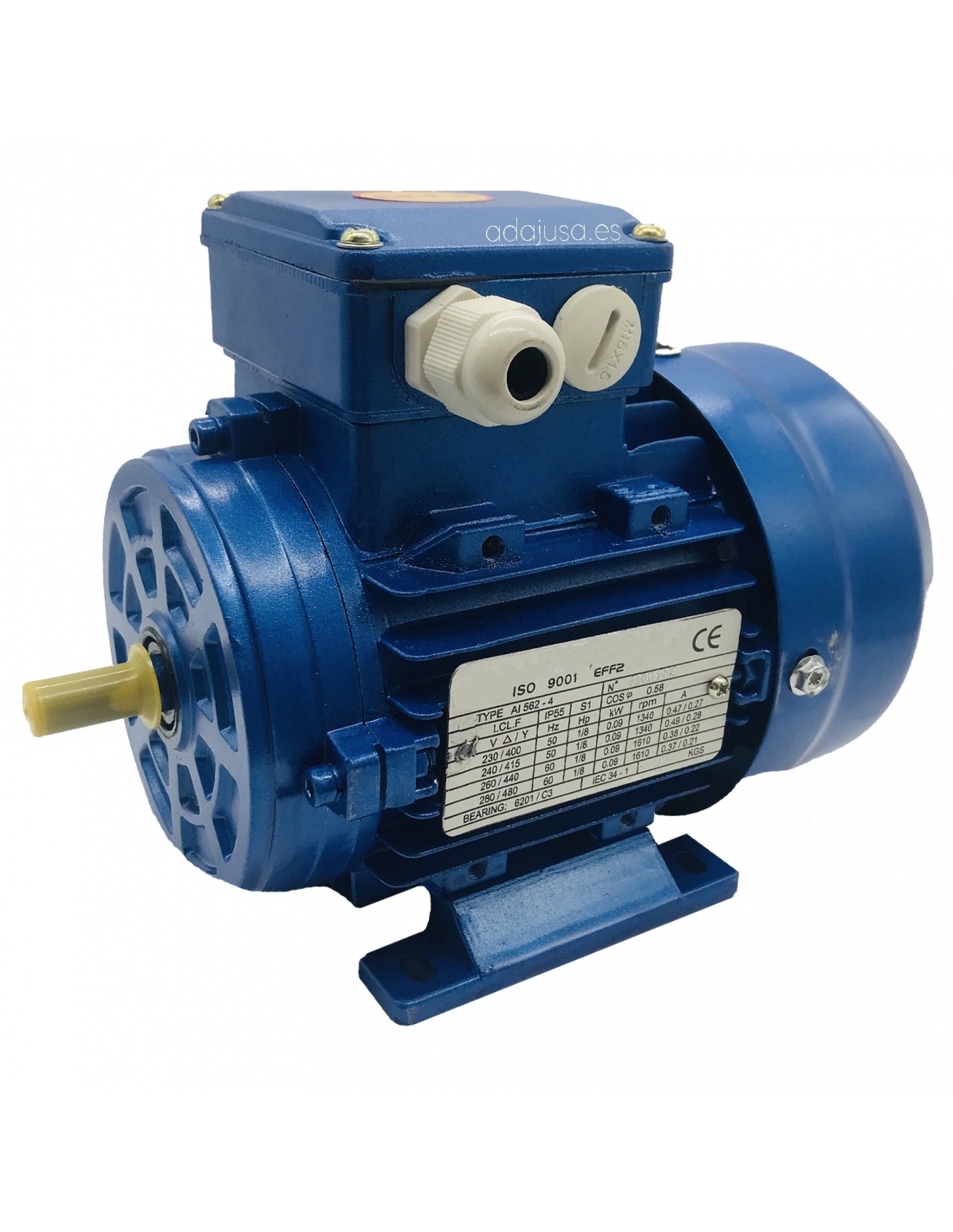

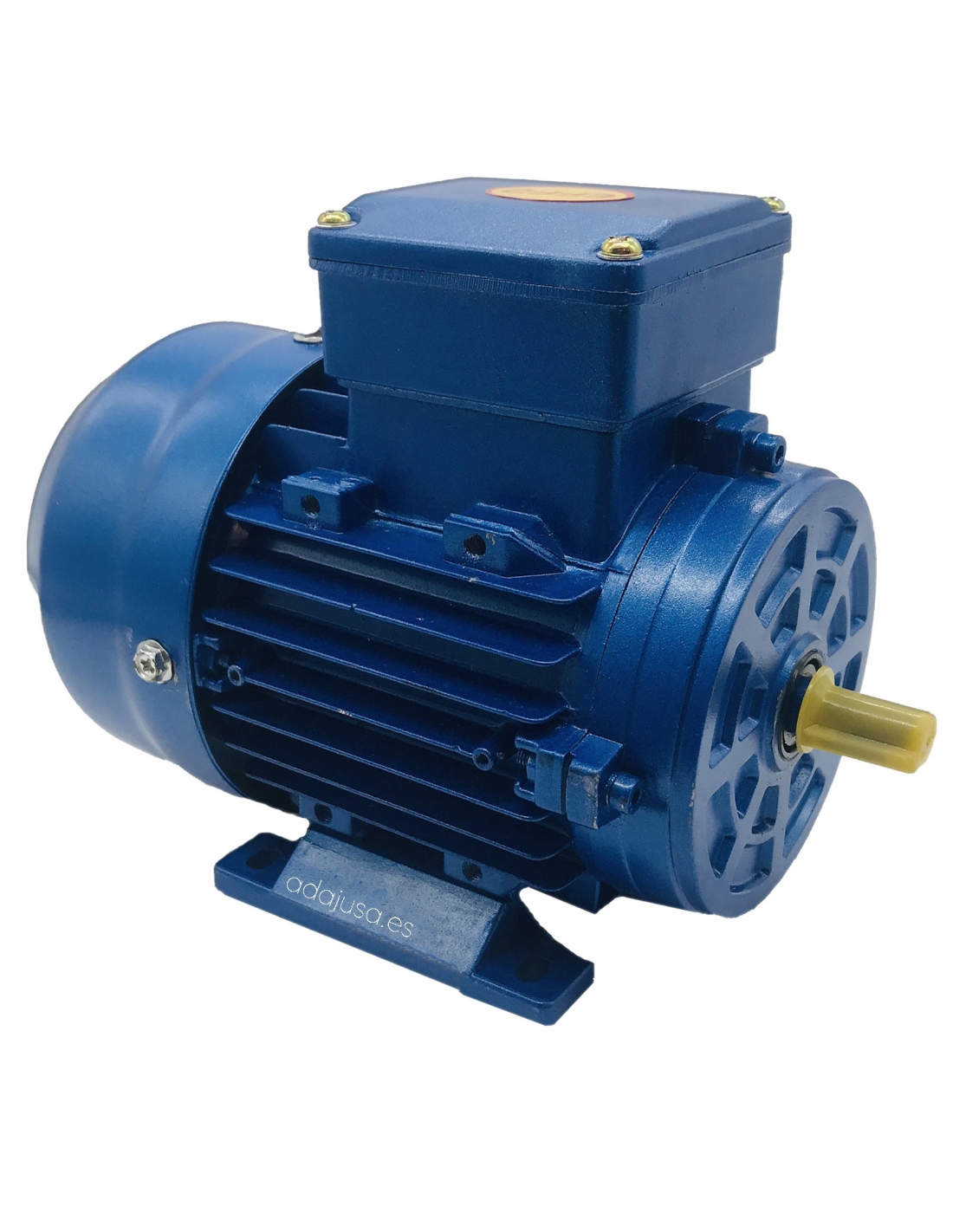

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Three- phase electric motor 4kW (5.5HP) 230/400V 1500 rpm Flange B3 (Legs). Made of cast aluminum, removable legs.
Standardized three-phase electric motors for general use, manufactured under European IEC standards in aluminum with removable feet. Enameled copper windings with class F insulation. The execution of the casing is closed, it has a seal on the output shaft that gives it an IP55 degree of protection.

features:

  • Manufacturer/Importer: Motorseg/ ALREN
  • Reference: ALH112M4B34E2
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE2
  • Voltage: 230/400 V. III. 50/60Hz
  • Number of poles: 4.
  • Revolutions: 1500 (1440).
  • Power: 4 kW (5.5 hp).
  • Intensity: 14.31/8.26 A.
  • Yield: 84.5%
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Fastening type: Flange B3 Legs
  • shaft diameter: Ø28mm
  • Shell size 112 (112M).
  • Color blue.
  • Housing material: Aluminum.
  • Weight: 29 Kg.
  • CE marking.

For more information, other powers or executions consult.
As in all asynchronous electric motors, the installation of a motor protection switch is motor circuit-breaker to avoid damage due to overload.

Tabla de dimensiones motores electricos B3


For more information, you can download the technical sheet by clicking on the "Annexes" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems.
