Three-phase motor 11Kw/15CV 400/690V 1500 rpm...

Three-phase motor 11Kw/15CV 400/690V 1500 rpm B5 flange cast iron casing

Three-phase motor 11Kw/15CV 400/690V 1500 rpm B5 flange cast iron casing

Name: Three-phase motor 11Kw/15CV 400/690V 1500 rpm B5 flange cast iron casing
Brand: Especial-MOT
SKU: SSY160M4B561
Price: 738.8381 EUR
Availability: InStock

€738.84 Tax included

€610.61 tax excl.

Free shipping!

Three-phase electric motor 11kW (15CV) 400/690Vac., 1500 rpm (4 Poles), B5 flange, cast iron housing. Manufactured under European IEC regulations.

Voltage: 400/690Vac 50/60Hz.
Number of poles: 4.
Revolutions: 1500 rpm .
Flange: B5.
Shaft diameter: 42mm.
Power: 11Kw - 15hp.
Size: 160.
Energy efficiency: IE1 .

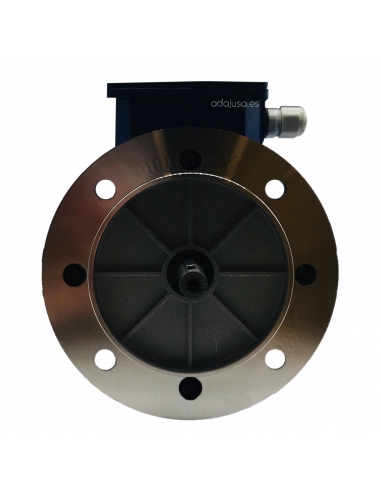

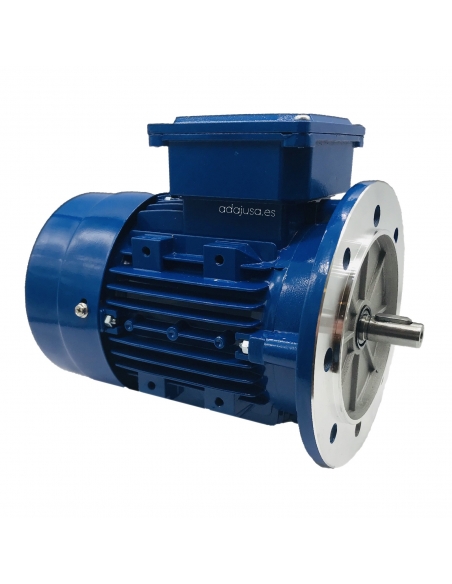

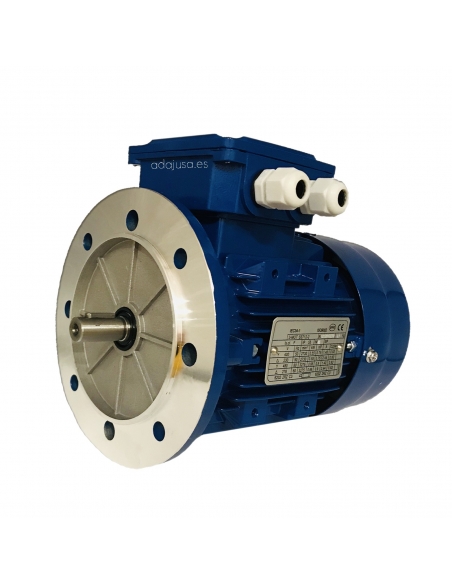

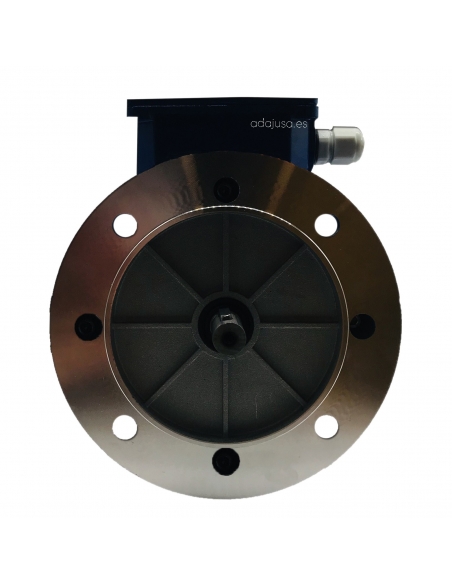

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Three-phase electric motor 11kW (15CV) 400/690Vac 1500 rpm Flange B5. Made of cast iron.
Standardized three-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55.

characteristics:

Manufacturer/Importer: Motorseg
Reference: SSY-160M-4 B5 4/6
Motor type: squirrel cage asynchronous.
Efficiency: IE1 .
Voltage: 400/690 Vac., 50/60Hz.
Number of poles: 4
Revolutions: 1500 (1460) rpm .
Power: 11 Kw (15CV).
Current: 21.8/12.6A
Performance: 88.5%
Continuous service: S1.
Protection degree: IP55.
Fastening type: B5 flange.
Shaft diameter: Ø42mm.
flange diameter: Ø350mm.
Case size 160 (160M).
PAM : 350/42.
Color blue.
Housing material : Cast iron.
Weight: 113Kg
CE marking.

For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems.

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)
