Thermal relay regulation 2.5 to 4 A - LS

€27.39 Tax included

€22.64 tax excl.

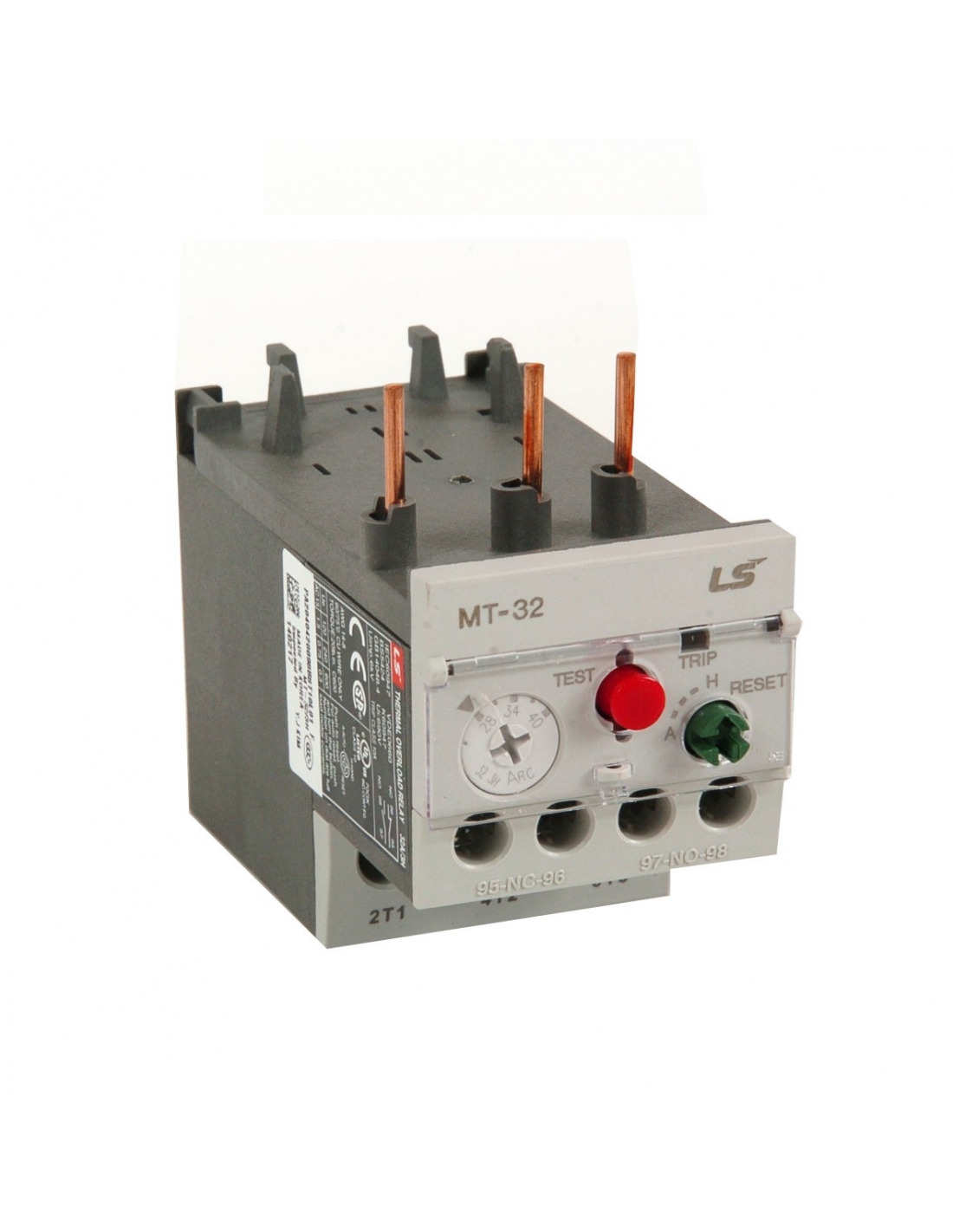

Three-phase thermal relay for overload protection of electric motors. The regulation of the thermal relay is between 2.5 and 4 A.

Reference: MT-32 3.3A 3H

Electrical diagram of thermal relay

LS Industrial systems logo


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase thermal relay for protection of electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). Reset can be selected to occur automatically or manually using a push button located on the body of the thermal relay. It has ambient temperature compensation.

The thermal relay is designed to be coupled directly to the output of a contactor, it can also be fixed to a DIN rail using the adapter available for the MT-32 series, reference UZ-32 (not included in the supply).

Thermal relay features:

  • Manufacturer: LG - LS.
  • Reference: MT-32 3.3A 3H
  • Regulation range: 2.5 to 4A.
  • Nominal voltage Ue: 690V.
  • Insulation voltage: 690V.
  • Maximum peak voltage Uimp: 6kV.
  • Shooting class: 10.
  • Compatible with MC-9 to MC-40A contactors.
  • Ambient temperature compensation between -5 and 40ºC.
  • Weight: 0.17 Kg.
  • Dimensions: 45x75x90mm.
Professional use material, install in compliance with the regulations in force at the place of installation.
