Thermal regulation relay 0.25 to 0.4A - LS

€27.39 Tax included

€22.64 tax excl.

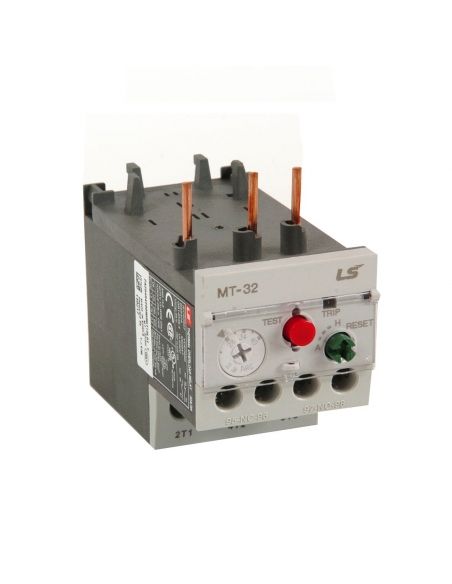

Three-phase thermal relay for overload protection of electric motors. The regulation of the thermal relay is between 0.25 to 0.4 A.

Reference: MT-32 0.33A 3H

Thermal relay electrical diagram

LS Industrial systems logo


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase thermal relay to protect electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). Resetting can be selected to occur automatically or manually using a button located on the body of the thermal relay. It has ambient temperature compensation.

The thermal relay is designed to be coupled directly to the output of a contactor, it can also be fixed to a DIN rail using the adapter available for the MT-32 series, reference UZ-32 (not included in the supply).

Thermal relay features:

  • Manufacturer: LG - LS .
  • Reference: MT-32 0.33A 3H
  • Regulation range: 0.25 to 0.4A.
  • Rated voltage Ue: 690V.
  • Insulation voltage: 690V.
  • Maximum peak voltage Uimp: 6kV.
  • Shooting class: 10.
  • Compatible with MC-9 to MC-40A contactors.
  • Compensation of ambient temperature between -5 and 40ºC.
  • Weight: 0.17 kg.
  • Dimensions: 45x75x90mm.



For more information you can download the technical sheet by clicking on the "Attachments" tab
Material for professional use, install in compliance with the regulations in force at the installation site.
