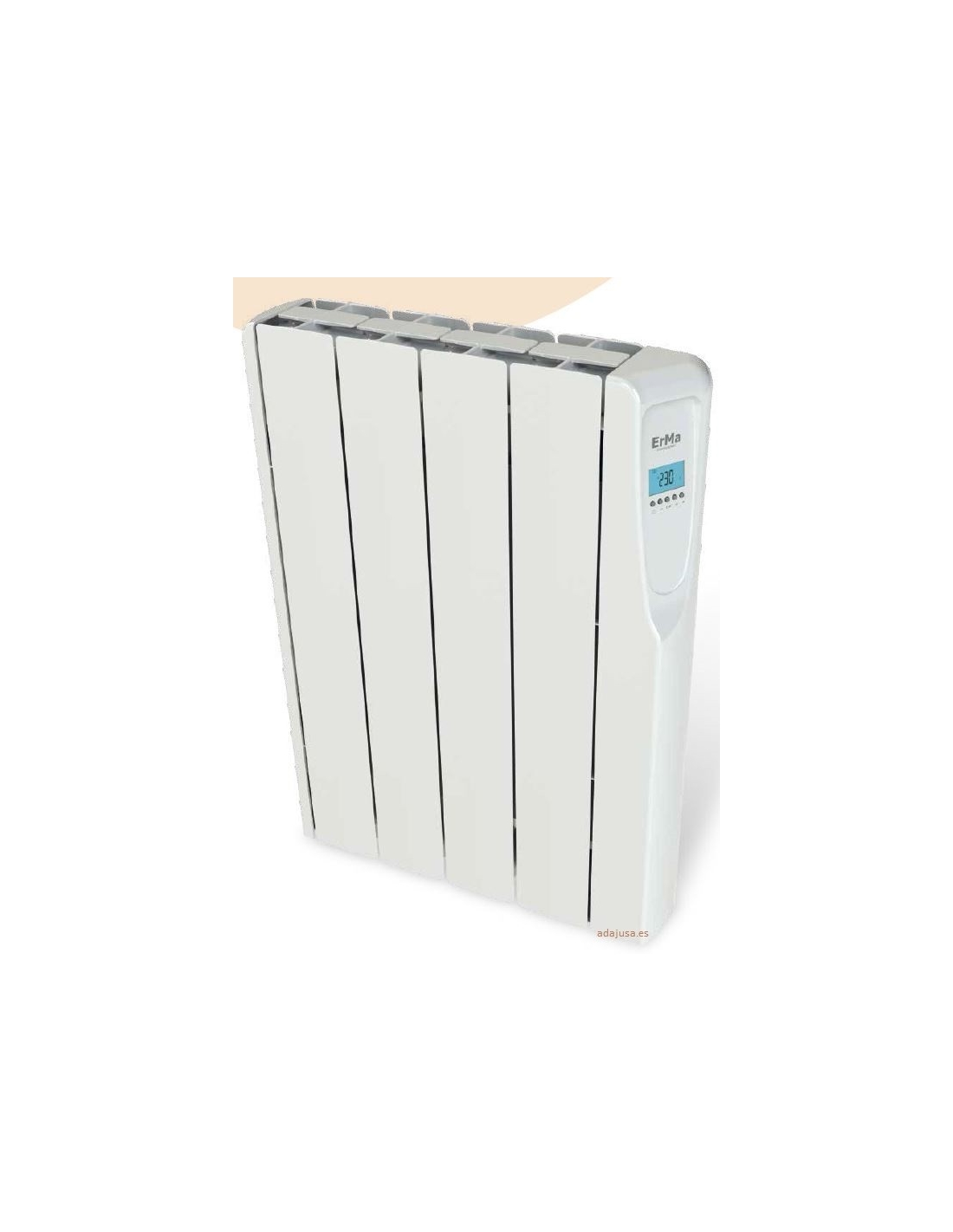

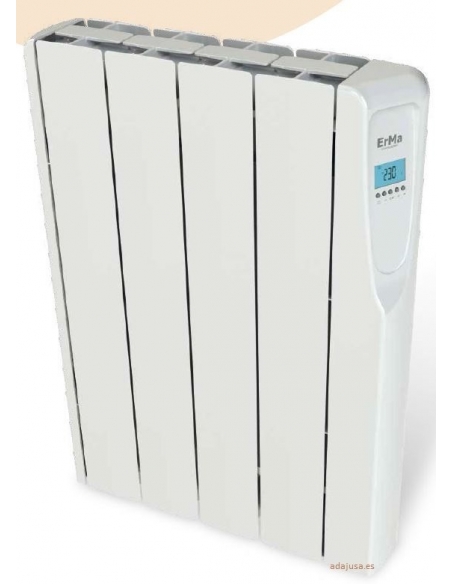

Thermal emitter DP0750F ErMa

MADDI series thermal emitter with die-cast aluminum body and heat transfer fluid. High thermodynamic properties, which provides high performance and minimum consumption. Programmable digital thermostat located in the upper area.

Advanced set of operating modes that allow you to increase performance and safety, avoid possible burns (baby-care function), open windows function, various operating modes (economical, anti-icing comfort).

Main features:

• NTC temperature sensor with 0.1ºC accuracy
• Very quiet, solid state circuit controlled operation (Triac)
• Control system by means of proportional regulation PID, which allows you to save up to 40% of consumption compared to conventional thermal emitters
• Intelligent early activation control via ITCS function
• Surface temperature control via baby-care function
• Function of open windows that disconnects the emitter automatically if it detects a sharp drop in temperature of 3ºC
• Comfort, economical, anti-icing and easy-to-use modes
• Meter of the energy consumed
• High quality armored steel strength
• Overheating protection, controlled by the highest precision safety thermostat.
• 1.5-meter power cable with connection plug.
• Supplied with wall mounts with anti-roll system and fixing template

Summary of technical characteristics:

• Manufacturer/Supplier: ErMa/Gaestopas
• Series: MADDI
• Reference: DP0750F
• Power: 750W
• Working voltage: 230Vac
• Thermostat: Digital
• Nº of Elements: 4
• Width: 415mm
• Height: 575mm
• Depth: 95mm

Material for professional use, install in compliance with the regulations in force at the installation site.
