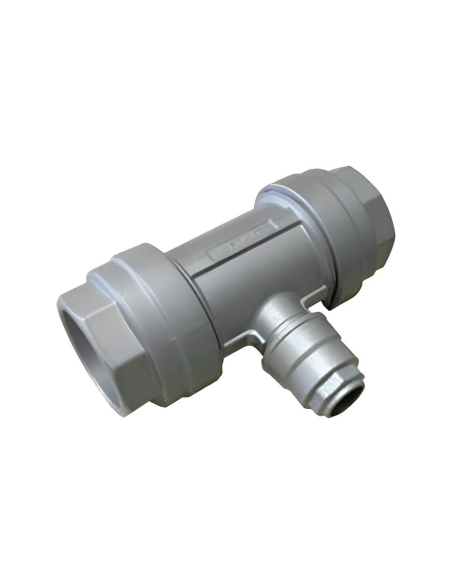

"T" fitting for downpipes with condensate drain, for tube with external diameter 63mm and downpipe diameter 20mm. Body and nut made of aluminum, NBR O-ring. This type of fitting allows a simple and quick union of pipes in networks and installations of compressed air, vacuum and inert gases such as nitrogen and argon by having a "Push In" system. It allows the passage of total air avoiding pressure losses. Maximum working pressure 16 bar .
The 50 and 63mm diameter fittings come pre-assembled with the nut on the fitting but not tightened to facilitate the insertion of the tube, so it is only necessary to insert the tube to the bottom of the fitting and tighten the nut.
Characteristics:
- Manufacturer: Aignep
- Reference: 90259 63 20
- Series: Infinity
- Pipe diameter: 63mm
- Downspout diameter: 20mm
- Fitting type: "T"
- Material: Aluminum
- Application: Compressed air, vacuum, inert gas (nitrogen, argon)
- Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
- Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
- All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
Material for professional use, install in compliance with the regulations in force at the installation site.
