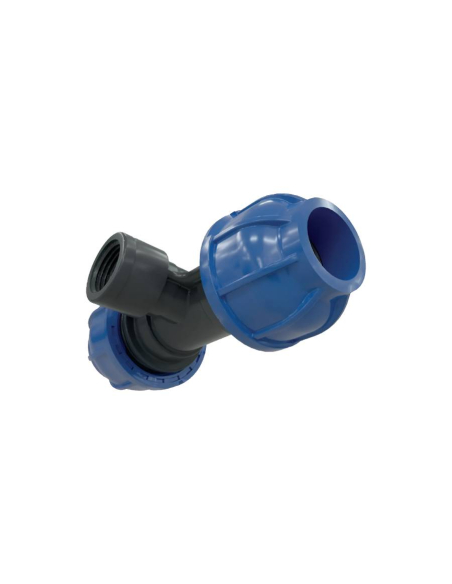

Female T- Elbow union 3/4 tube 32mm - Sicomat
Female T- Elbow union 3/4 tube 32mm - Sicomat
Female T- Elbow union 3/4 tube 32mm - Sicomat
Female T- Elbow union 3/4 tube 32mm - Sicomat

Female T- Elbow union 3/4 tube 32mm - Sicomat

€9.98 Tax included

€8.25 tax excl.

"T" Elbow union with 3/4 cylindrical female thread for 32mm outer diameter tube, body and nut made of nylon. Fitting for pipe branches, with a quick coupling system that guarantees easy assembly and design versatility in networks and installations of compressed air, vacuum and inert gases.


Reference: R215.032.034




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

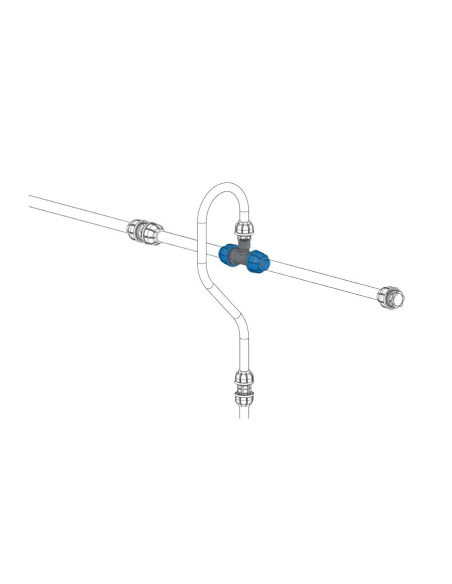

Intermediate bypass fitting with 3/4 cylindrical female thread for 32mm outer diameter tube, black nylon body and blue nylon nut, NBR O-ring. This type of fitting for branches allows a simple and quick union of sections of pipes in networks and installations of compressed air, vacuum and inert gases such as nitrogen by having a quick coupling system, without the need to weld or tighten the ferrules. It allows the passage of total air avoiding pressure losses. Maximum working pressure 12.5 bar .





Characteristics:

  • Manufacturer/Supplier: Sicomat/Metalwork
  • Reference: R215.032.034
  • Fitting type: "T"
  • Tube diameter: 32mm
  • Thread: Female 3/4 (Gas cylindrical according to ISO 228)
  • Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
  • Clamping ring: AISI 301 Stainless steel
  • Retention: NBR
  • Application: Compressed air / Vacuum / Nitrogen
  • Maximum pressure conditions: -0.8 to 12.5bar
  • Temperature conditions: -20ºC to +70ºC
  • Dimensions: A = 62mm; B = 159.5mm ; C= 37mm; D=85mm
  • Weight: 193g
  • All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.








Material for professional use, install in compliance with the regulations in force at the installation site.
