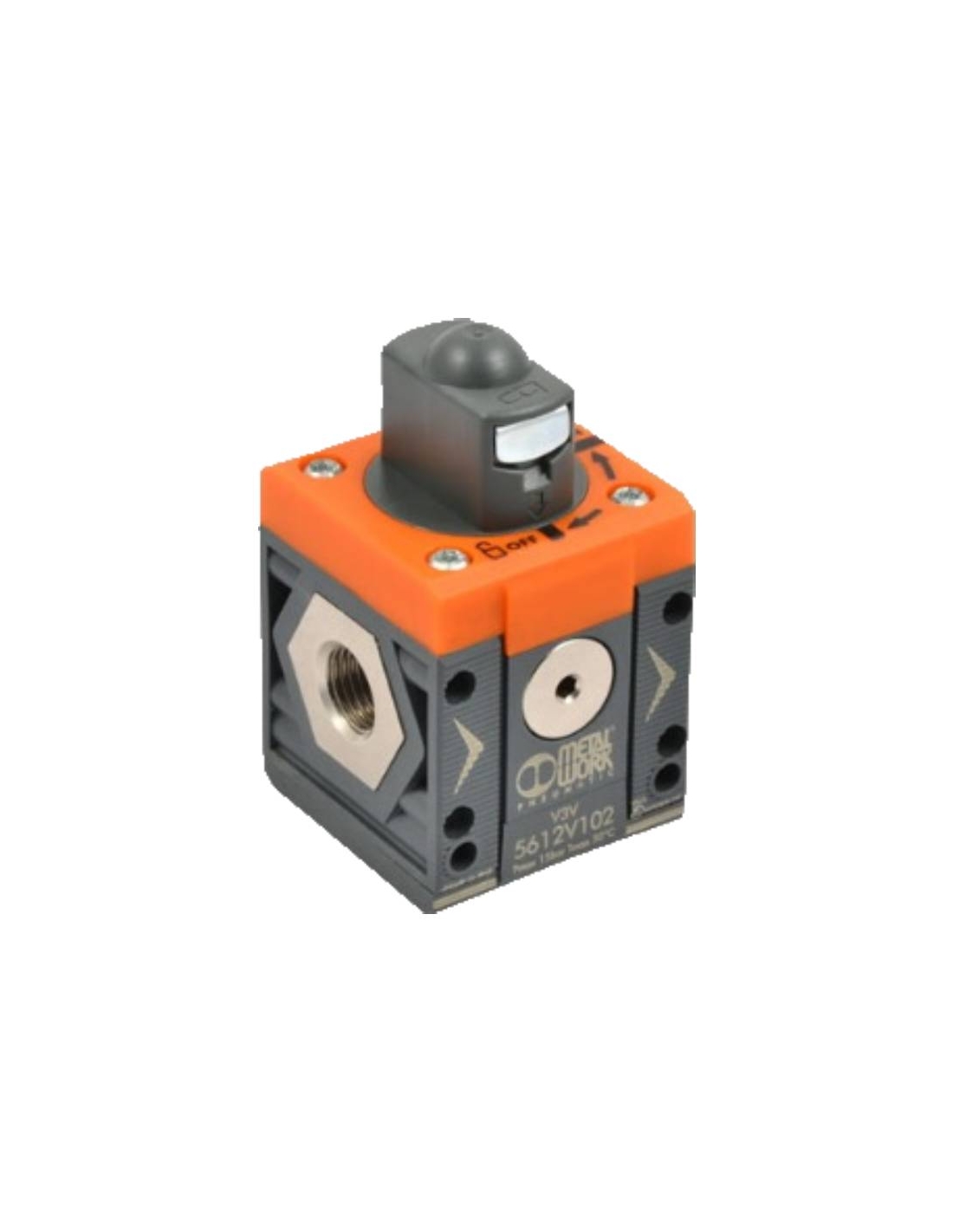

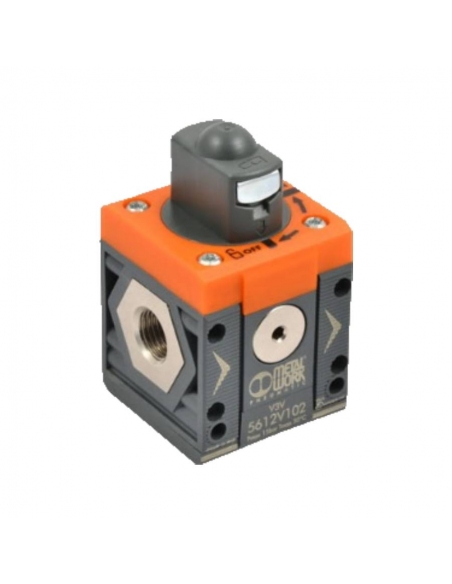

Circuit regulating valve 1/4 elpn Syntesi - Metal Work

1/4" inlet and outlet size circuit regulating valve SYNTESI range

It is a 3-way valve that relieves the downstream system in a closed position. This makes it useful for maintenance operations or when the air supplied to the machine or some piece of equipment needs to be cut.

• Manufacturer: Metal Work
• Reference: 5612V702
• Threaded input drive: 1/4"
• Output threaded drive: 1/4"
• Threaded coupling discharge: 1/8"
• Mand type: elpn
• Inlet pressure and pilotage elpn:

  • • Bar: 3-10
    • MPa: 0.3-1
    • Psi: 43-145
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ΔP 0.5 bar (0.05 MPa; 7 psi)
  • • Nl/min: 1000
    • scfm: 35
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ΔP 1 bar (0.1 MPa; 14 psi)
  • • Nl/min:1500
    • scfm:53
• Discharge flow at 6.3 bar (0.63 MPa; 91 psi)
  • • Nl/min: 500
    • scfm: 18
• Temperature min/max at 10 bar; 1 MPa; 145 psi °: -10 ÷ +50
• Lockable knob included
• Weight : 192
• Fluid: Compressed air or other inert gases
• Mounting position: In any position
• Supplementary air intake, for pressure gauge or fitting: 1/8", front and rear
• Supplemental air intake flow rate at 6.3 bar Nl/min: 500
• (0.63 MPa; 91 psi) ΔP 1 bar (0.1 MPa; 14 psi) scfm: 18
• Wall fixing screws: Number 2 screws M4
• Coil power for electropneumatic version W: 12 VDC and 24 VDC = 2W
• Manual control of the electropneumatic versions: Bistable: if horizontal OFF, if vertical ON

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
