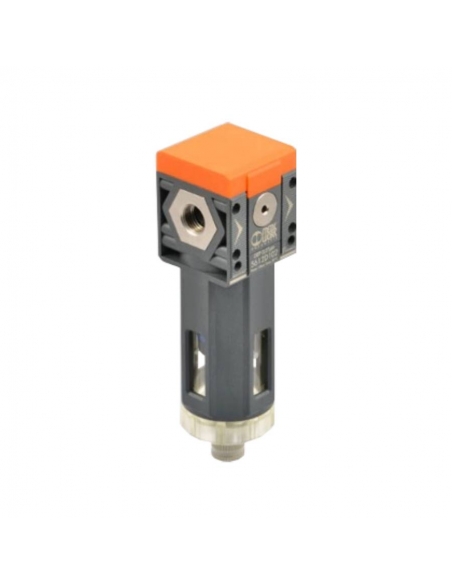

Active carbon filter 1/8 semi-automatic purge Syntesi series - Metal Work

€80.02 Tax included

65.06 tax excl.

5611C101

Active carbon filter 1/8 RMSA Size 1, 0.003mm filtration grade, achieves the highest standard of purification possible in industrial applications. for retention of solid or liquid impurities from the air compressor. Syntesi group.

Reference: 5611C101

active carbon filter schememetal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


The activated carbon filter system achieves the highest standard of purification possible in industrial applications. for retention of solid or liquid impurities from the air compressor. Removes all traces of oils, solvents and hydrocarbons, and eliminates unpleasant odours.

RMSA condensate discharge, manual condensate drain and automatic drain when pressure is removed.

Characteristics:

  • Manufacturer: Metalwork
  • Manufacturer reference: 5611C101
  • Threaded drive: 1/8"
  • Group Size: Size 1
  • Maximum inlet pressure (bar/Mpa/psi): 15 / 1.5 / 217
  • Recommended flow at 6.3 bar (0.63 MPa; 91 psi) (Nl/min) : 350
  • Advised flow at 6.3 bar (0.63 MPa; 91 psi) (scfm) : 12
  • Fluid: Filtered or purified compressed air
  • Flow rate of additional air intakes at 6.3 bar (Nl/min): 500
  • Wall fixing screws: Number 2 M4 screws
  • Mounting position: Any.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA 2
Gauges and measurement elements

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP4318012
€5.74 (€4.67 tax excl.)
Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...
Filter 1/4 20 RMSA Size 1 Syntesi Metal Work - ADAJUSA
Filter groups of 1/4 FR-L

Filter 1/4 20 microns semi-automatic drain size 1 Syntesi series - Metal Work

Metal Work
5612F202
€27.24 (€22.15 tax excl.)
1/4 filter, with a filtration degree of 20μm and semi-automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5612F202Representative image for...

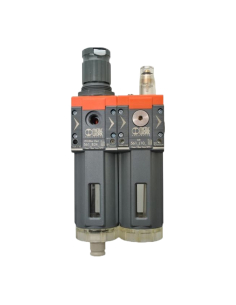

Filter + Lubricator T1 RMSA Syntesi - Metal Work - ADAJUSA
