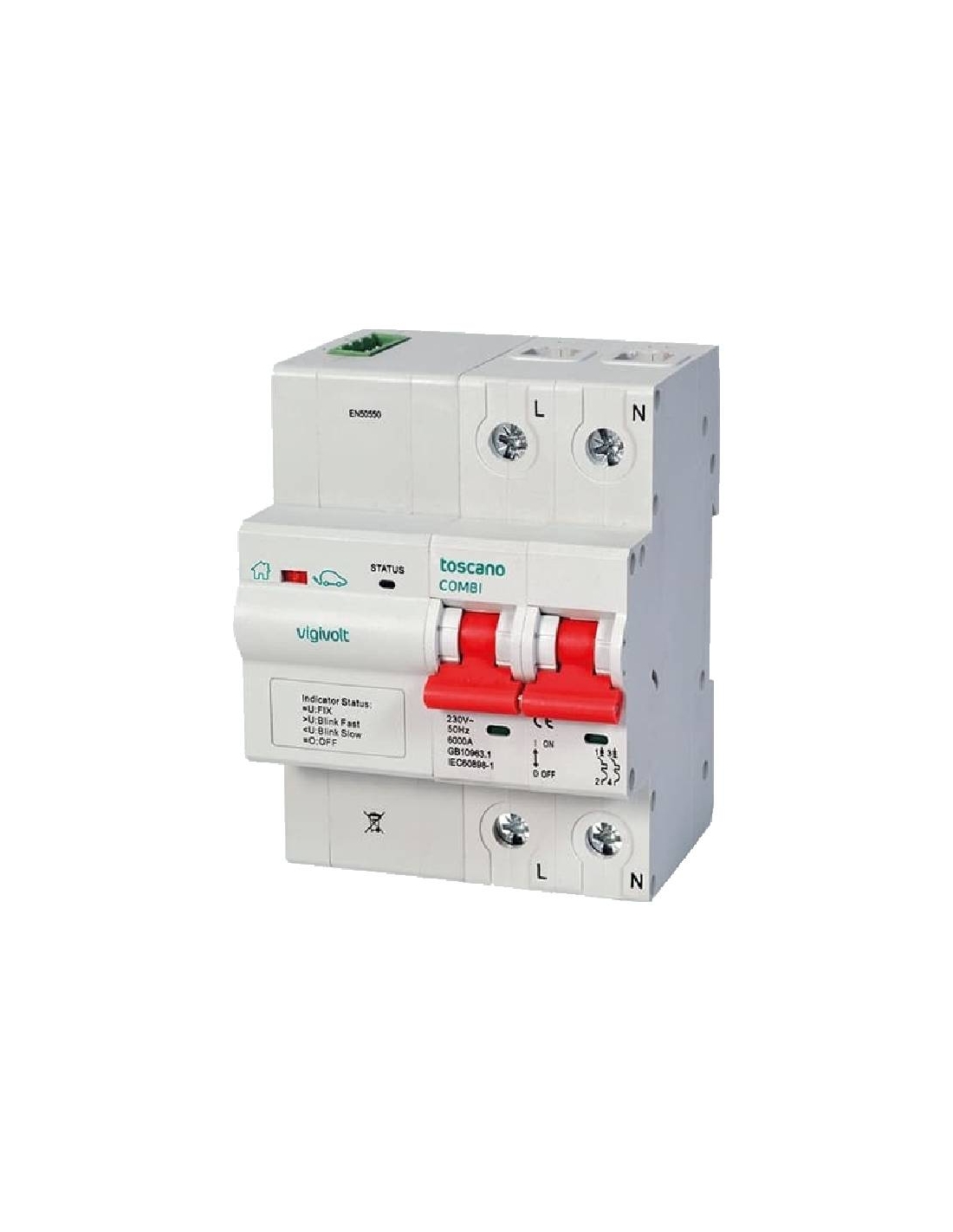

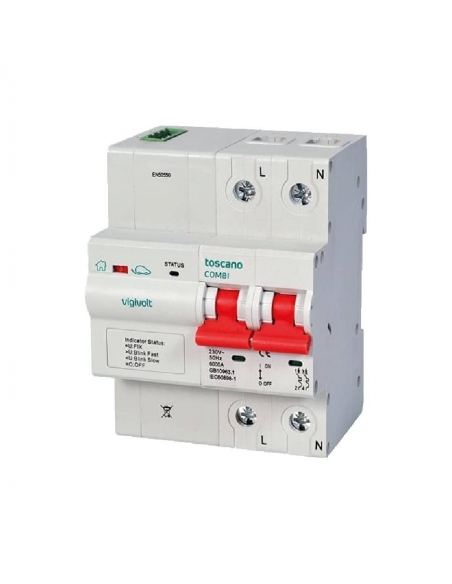

Permanent surge single-phase protector + IGA 2x32A 10kA automatic rearmament COMBI-PRO-2P32 - Toscano

€158.89 Tax included

€131.31 tax excl.

Permanent surge and undervoltage protector with built-in IGA 2x32A with a 10kA breaking capacity , pre-wired for single-phase and two-phase installations and with automatic rearmament, IEC-EN 63052. It allows the reconnection of the new smart meters according to scheme 2 of the ITC-BT-52 standard.

Reference: COMBI-PRO-2P32




Toscano_version 1 color sin leyenda
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Protector against permanent surges and undervoltage,with automatic rearmament, IEC-EN 63052. It allows the reconnection of the new smart meters according to scheme 2 of the ITC-BT-52 standard.

Combined protection device against overvoltages of permanent origin, caused by increases in network voltage, in single-phase and two-phase installations, with automatic reconnection. It can also protect against voltage drops if this option is selected by the user using the front selector. IGA 10kA breaking capacity .

Ideal for the protection of electric vehicle charging circuits thanks to the fact that it allows the reconnection of the meter in case of power outage when exceeding the contracted power. The meter must appreciate an infinite impedance that allows its rearmament from the house.

The equipment measures the voltage in the installation permanently and monitors any variation of it. In case of detecting this anomaly, it acts on the built-in IGA, disconnecting the voltage in the installation.

The equipment also has a switched contact output for remote fault indication. It also has a remote control input (running order) that if the equipment is not activated does not work, does not perform the automatic reconnection. With this we manage to cut the supply remotely, for example in case of non-payment of the charging fee or to activate the recharging point with the presence of the vehicle (loop detector or ultrasonic sensor).

The equipment DOES NOT PROTECT AGAINST TRANSIENT power surges

The module includes:

  • IGA 2x32A automatic reconnection
  • Permanent surge and undervoltage protector


The whole assembly is supplied fully assembled and pre-wired.



General characteristics:

  • Manufacturer: Toscano
  • Reference: COMBI-PRO-2P32
  • Rated working voltage: 240 VAC (L-N) / (L-L)
  • Frequency: 50-60 Hz
  • Maximum terminal section: 25 mm
  • Protection: IP20
  • Assembly: Rail DIN
  • Number of DIN modules: 4
  • Standards: UNE-EN 60898 / UNE-EN 50550


Overvoltage:

  • Trigger voltage: >270VAC ± 2%
  • Overvoltage response time: according to UNE-EN 50550
  • Reset time: 10 seconds
  • Reconnection voltage:


Undervoltage:

  • Trigger voltage:
  • Response time per subvoltage: 10 seconds
  • Reset time: 10 seconds
  • Reconnection voltage: > 210VAC ± 2%


IGA:

  • Rated current: 32A
  • Curve: C
  • breaking capacity: 10kA



For the correct operation of the equipment it is necessary to connect the terminal block "REMOTE" with the phase of the electrical installation.




To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
