Ball insert bearing SB208-2RS for sheet metal housing - ISB

€14.33 Tax included

€11.84 tax excl.

Ball bearing, setscrew fixing SB208-2RS, dimensions 40x80x18mm. Single row deep groove ball bearing to be mounted on stamped sheet metal housing, one side collar and set screw fixing, made of steel. With two rubber sealing caps (2RS) for sealing.

Part number: SB208-2RS

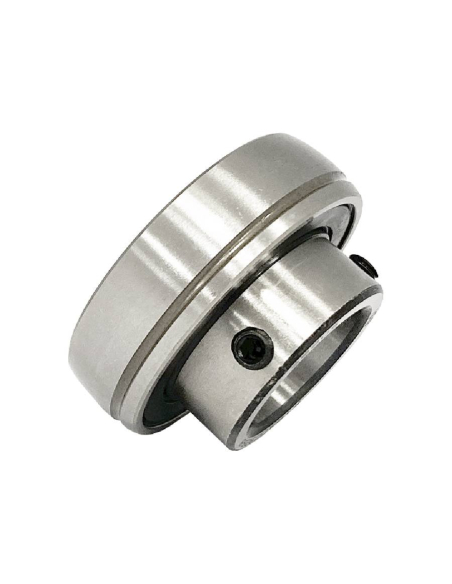

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


SB208-2RS ball bearing with set screw fixing. Single row deep groove ball bearing to be mounted on a stamped sheet metal support, single-sided collar and set screw fixing, made of steel. With two rubber sealing caps (2RS) for sealing

Dimensions: Ø40xØ80x18mm


Characteristics:

  • Manufacturer ISB
  • Part number: SB208-2RS
  • Inner diameter: 40mm
  • Outside diameter: 80mm
  • Sealing: 2RS type, elastic (NBR) on both sides
  • Material: hardened steel
  • Dynamic load capacity C: 27700N
  • Static load capacity C₀: 17000N
  • Weight: 0,60Kg


Dimensions:


  • d: 40 mm
  • D: 80 mm
  • B: 34 mm
  • C: 18 mm
  • S: 9 mm
  • S1: 25 mm
  • ds: M8x1
  • G: 7 mm
  • F: 6.2 mm


Material for industrial use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
