Straight fitting with connection 3 pieces 1 1/4 diameter 40mm - Sicomat

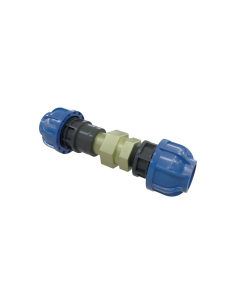

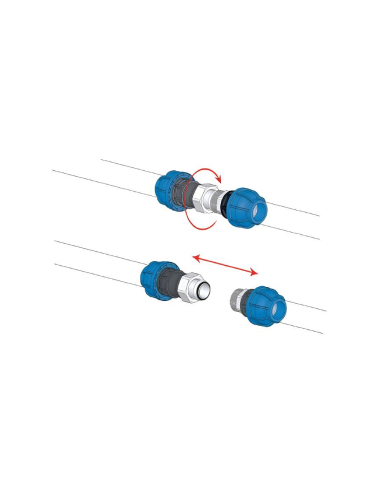

Straight union fitting with 3-piece splice for 40mm outer diameter tube. Set consisting of a 3-piece metal nut or coupling, 1 1/4 male connection coupled to a fitting with nut and nylon body and NBR gasket. This type of fitting allows a simple and quick union of straight sections of pipes of the same diameter in networks and installations of compressed air, vacuum and inert gases such as nitrogen by having a quick coupling system, without the need to weld or tighten the ferrules. . Suitable for removably joining sections of pipe. It allows the passage of total air avoiding pressure losses. Maximum working pressure 12.5 bar .




Characteristics:

• Manufacturer/Supplier: Sicomat/Metalwork
• Reference: R220.040.114
• Tube diameter: 40mm
• Fitting type: Straight
• Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
• Retention: NBR
• Application: Compressed air / Vacuum / Nitrogen
• Maximum pressure conditions: -0.8 to 12.5bar
• Temperature conditions: -20ºC to +70ºC
• Dimensions:  Ø = 40x1 1/4 ; A = 72mm; B=220mm
• Weight: 202g
• All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.

Material for professional use, install in compliance with the regulations in force at the installation site.
