Straight male Elbow union 3/4 tube 20mm - Aignep
Straight male Elbow union 3/4 tube 20mm - Aignep

Straight male Elbow union 3/4 tube 20mm - Aignep

€9.09 Tax included

€7.51 tax excl.

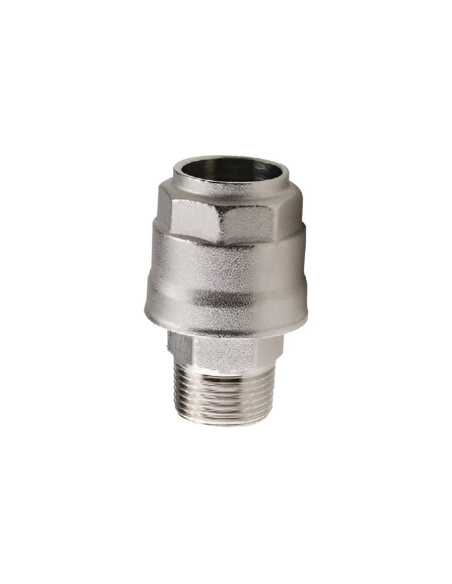

Straight union fitting with 3/4 conical male thread for 20mm outer diameter tube, body and nut made of nickel-plated brass. Automatic or "Push In" type fitting for quick and easy assembly in compressed air, vacuum and inert gas networks and installations.


Reference: 90010 20 3/4

aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Straight union fitting with 3/4 conical male thread for 20mm outer diameter tube, body and nut made of nickel-plated brass, NBR O-ring. This type of fitting allows a simple and quick connection of elements in networks and installations of compressed air, vacuum and inert gases such as nitrogen and argon by having a "Push In" system. It allows the passage of total air avoiding pressure losses. Maximum working pressure 16 bar .


The 20, 25, 32 and 40mm diameter fittings come pre-assembled with the nut fully tightened, so that it is only necessary to insert the tube to the bottom of the fitting for automatic connection or assembly.







Characteristics:

  • Manufacturer: Aignep
  • Reference: 90010 20 3/4
  • Series: Infinity
  • Fitting type: Straight
  • Tube diameter: 20mm
  • Thread: Male 3/4 (Gas conical conforming to ISO 7)
  • Material: Nickel-plated brass
  • Application: Compressed air, vacuum, inert gas (nitrogen, argon)
  • Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
  • Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
  • All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)













Material for professional use, install in compliance with the regulations in force at the installation site.
