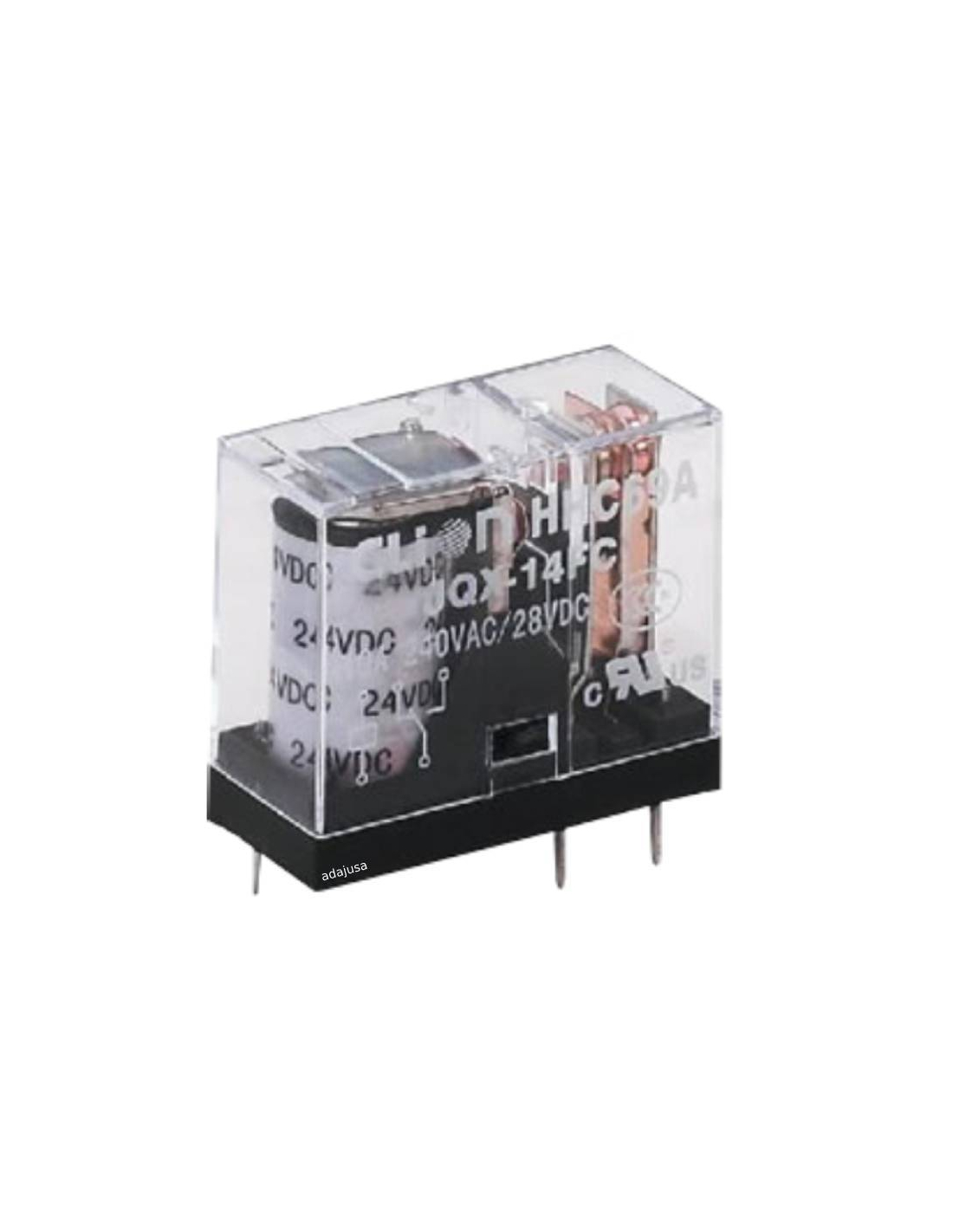

Miniature relay 1 contact 10A coil 24Vdc
Miniature relay 1 contact 10A coil 24Vdc

Miniature relay 1 contact 10A coil 24Vdc

€4.83 Tax included

€3.99 tax excl.

Miniature relay 24Vdc, 1 contact switched (SPDT) of 10A, for general purpose and industrial applications, capable of handling medium loads.

To be mounted on printed circuit board (PCB) or socket on DIN rail.

The socket (base) for mounting this relay has to be 1 contacts.

Reference: JQX-14FC 1Z 24Vdc 10A

Esquema eléctrico relé 1 contacto

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Miniature relay 24Vdc, with 1 contact type switched (SPDT), with pins to be soldered directly on printed circuit board (PCB) or to be inserted on socket. Designed for general uses and very suitable for applications on switch panels, machine tools in general, direct switching of loads and switching maneuvers.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Part number: JQX-14FC 1Z 24Vdc 10A (NNC69A-1Z)
  • Number of contacts: 1 switched.
  • Dimensions: 29x13x25,5mm.
  • Mounting: on PCB or socket.
  • Working voltage: 24Vdc.
  • Capacity of contact: 10A 250Vac, resistive load.
  • Coil power: 0.53W.
  • Response time: 20 mSec.
  • Equivalent type: JQX-14FC-1C-10A DC24.


The socket (base) for mounting this relay has to be 1 contacts.

Dimensiones relé miniatura 1 contacto

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
