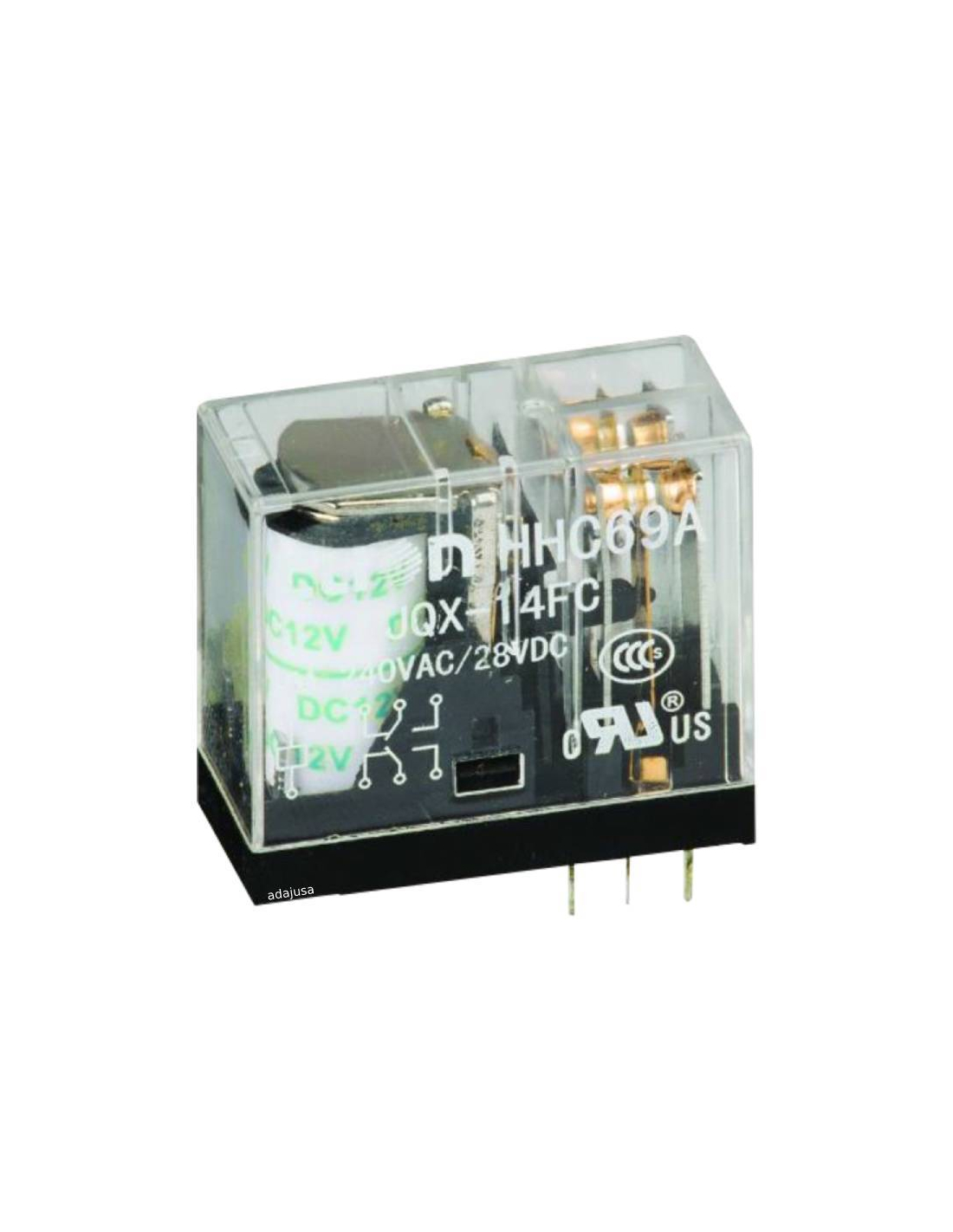

Miniature relay 2 contacts 12Vcc
Miniature relay 2 contacts 12Vcc

Miniature relay 2 contacts 12Vcc

€4.32 Tax included

€3.57 tax excl.

Miniature relay 12Vdc, 2 contacts 5A switched (SPDT), for general purpose and industrial applications, capable of handling medium loads.

To be mounted on printed circuit board (PCB) or socket on DIN rail.

The socket (base) for mounting this relay has to be 2 contacts.

Part number: JQX-14FC 2Z 12Vdc 5A

diagrama electrico rele 2 contactos

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Miniature relay of 12Vdc, with 2 contacts type switched (SPDT), with pins to be soldered directly on printed circuit board (PCB) or to be inserted on socket. Designed for general use and very suitable for applications on control panels, machine tools in general, direct switching of loads and switching maneuvers.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Part number: JQX-14FC 2Z 12Vdc 5A
  • Number of contacts: 2 switched.
  • Dimensions: 29x13x25,5mm.
  • Mounting: on PCB or socket.
  • Working voltage: 12Vdc.
  • Capacity of contact: 5A 250Vac, resistive load.
  • Coil power: 0.53W.
  • Response time: 20 mSec.
  • Equivalent type: JQX-14FC-2C DC12.

The socket (base) for mounting this relay has to be 2 contacts.

Dimensiones relé miniatura 2 contactos JQX-14FC

Material for professional use, install in compliance with the regulations in force at the place of installation.
