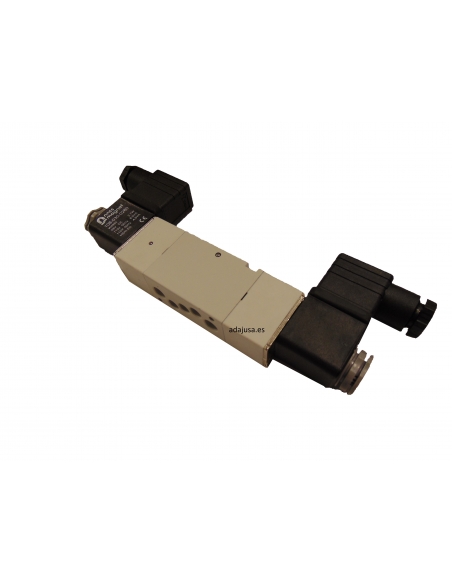

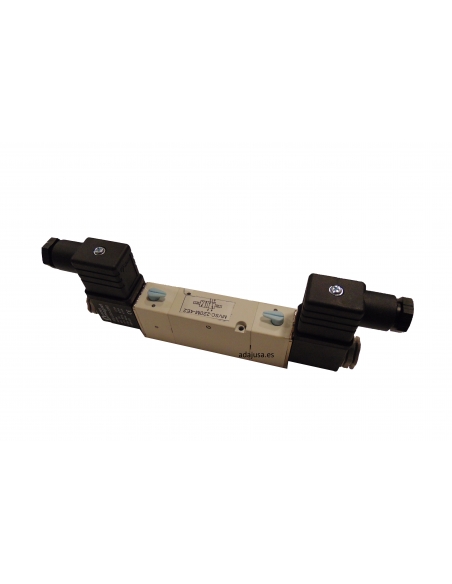

Solenoid valve 1/4 5/2 ways bistable (with coil) on plate - Mindman

Solenoid valve 1/4 5/2 ways bistable 110 Vac on plate - Mindman

Name: Solenoid valve 1/4 5/2 ways bistable 110 Vac on plate - Mindman
Brand: Mindman
SKU: MVSC220M4E23
Price: 76.15 EUR
Availability: InStock

€76.15 Tax included

€61.91 tax excl.

MVSC220M4E23

Biletable 5-way pneumatic solenoid valve for mounting on motherboard, with connector and 110Vac operating voltage coil.

Reference: 281MVSC220M4E23

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve 1/4 of 5 bistable ways, to be mounted on base plate. For general and industrial applications.

The solenoid valve is fixed on the motherboard by 4 screws, no connection is on the body of the electric valve, which facilitates the cleaning of the installation and easy maintenance.

The supply includes:

Electrovalvula 1/4 5/2 bistable
110Vca voltage coil - 48Vdc 6VA
Connector size 22

Specifications:

Solenoid valve manufacturer: Mindman.
Reference: MVSC-220M-4E21
Fluid type: Pressurized air, with or without lubrication.
Solenoid valve working pressure: 2 to 7 bar.
Minimum working pressure: 2 bar
Working temperature: -5ºC to 50ºC.
Effective surface: 18mm².
Flow: 799 Nl/min.
Manual drive: Yes.
Voltage: 110Vca - 48Vdc
Power: 6VA

Dimensiones válvulas sobre placa base Mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valves on base plate

Solenoid valve catalog on base plate

Download (673.64KB)
