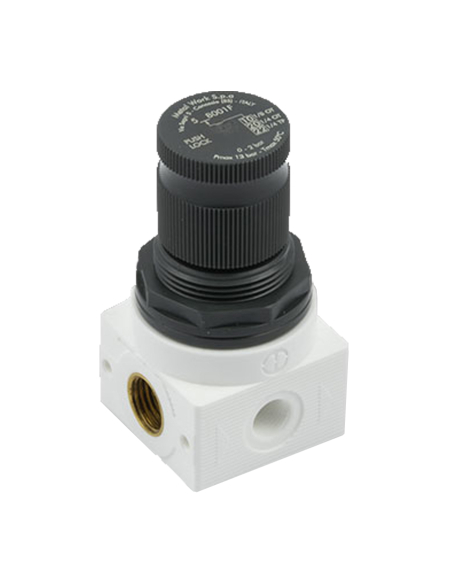

Water regulator Series F 1/8 0-4 bar BIT - Metal Work

€33.26 Tax included

27.04 tax excl.

5108002F

1/8" water regulator regulation 0-4, body in extremely reliable technopolymer. Possibility of fixing by means of lateral holes. Bit Group

Pressure gauge not included (can be ordered separately)

Reference: 5108002F

metal work logo







No queries yet, leave the first!
Privacy
Shipments
Returns


1/8" 0-4 water regulator , body made of high resistance technopolymer. If the pressure regulator works with incompressible fluids (water) and there is a leak from a valve , the pressure could increase to reach the inlet pressure and then it will be restored with the consumption of water.Possibility of fixing through side holes.Locking system by means of a padlock.

The pressure should always be adjusted upwards.

It admits very diverse types of assembly, with the appropriate accessories.

Technical characteristics.

  • Manufacturer: Metal Work
  • Reference: 5108002F
  • Threaded connection size: 1/8".
  • Regulation range: 0-4 bar .
  • Maximum inlet pressure (MPa) ( bar ) (psi): 1.3 - 13 - 188
  • Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 6.5
  • Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (scfm): 0.23
  • Fluid: Air, water and fluids compatible with the materials used.
  • temperature at 10 bar ; 1MPa; 145 psi ( °C): 10 ÷ +50
  • Mounting position: any position
  • Included: Full discharge step by zeroing inlet pressure and lockable knob.
  • Inlet pressure compensation: Included, through balanced valve

For other models or sizes consult.



water regulator dimensions

Mounting accessories not included.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
