Regulator for water 1/4 0-8 bar series FRL MINI - Aignep

Name: Regulator for water 1/4 0-8 bar series FRL MINI - Aignep
Brand: Aignep
SKU: T080003030000
Price: 17.95 EUR
Availability: BackOrder

€17.95 Tax included

14.59 tax excl.

T080003030000

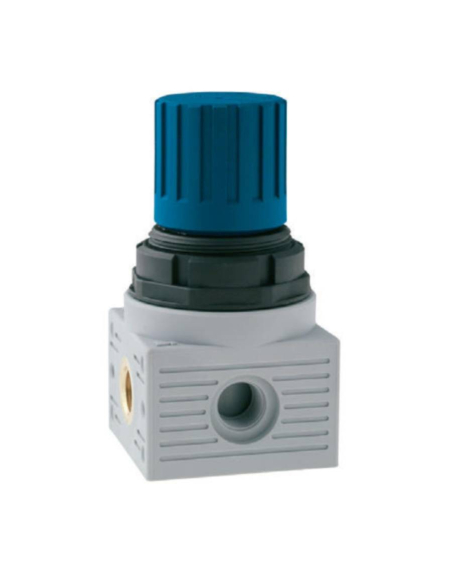

Regulator 1/4water pressure regulator, range 0-8 bar, technopolymer body. Allows stability of the outlet pressure at the preset pressure.

Series: FRL mini
Reference: T080003030000

Simbolo neumatico filtro Adajusa
Logotipo Aignep Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Regulator 1/4" technopolymer body, body madeof high resistance technopolymer, and with metallic terminations. It allows stability of the outlet pressure to the preset pressure starting from an equal or higher inlet pressure.

Among the main characteristics of this filtering group, it has a high flow performance compared to its reduced size and weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metallic terminations.

Characteristics:

Manufacturer: Aignep
Manufacturer's part number: T080003030000
Threaded actuator: 1/4"
Regulating range: 0-8 bar
Maximum inlet pressure: 15 bar
Fluid: Water
Mounting position: Vertical.
Working temperature: 5 to +50ºC.
Reference standard: PED 2014/68/EU

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Filter 1/4 metal 20 micron semi-automatic drain New Deal - Metal Work

Metal Work

1221006

€28.83 (€23.44 tax excl.)

Filter 1/4 metallic with a filtration degree of 20μm and semi-automatic discharge, for the retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing.Series: New DealReference: 1221006 Representative image for illustrative purposes, the supplied...

Filter 1/4 5 RMSA Size 1 Syntesi Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Filter 1/4 5 microns semi-automatic drain size 1 Syntesi series - Metal Work

Metal Work

5612F102

€27.24 (€22.15 tax excl.)

1/4 filter, with a filtration degree of 5μm and semi-automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5612F102Representative image for illustrative...

1/4 metal filter New Deal - Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Filter 1/4 metal 20 microns automatic drain New Deal - Metal Work

Metal Work

1221014

€46.64 (€37.92 tax excl.)

metallic 1/4 filter with a filtration degree of 20μm and automatic discharge, for retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing. Series: New DealReference: 1221014 Representative image for illustrative purposes,...

4 other products in the same category:

Water regulator 1/4" BIT - Metal Work - ADAJUSA

Size 1/4"

Water regulator Series F 1/4 TP 0-4 bar BIT - Metal Work

Metal Work

5228002F

€29.94 (€24.34 tax excl.)

1/4" water regulator regulation 0-4, body in extremely reliable technopolymer. Possibility of fixing by means of lateral holes. Bit GroupPressure gauge not included (can be ordered separately)Reference: 5228002F

Size 1/4"

Water filter Series F 1/4 BIT - Metal Work

Metal Work

5201002F

€28.66 (€23.30 tax excl.)

1/4 Series F water filter for use in contact with food or drinking water. Bit GroupReference: 5201002F

Water filter-regulator 1/4" BIT - Metal Work - ADAJUSA

Size 1/4"

Water filter-regulator Series F 1/4 20 0-12 bar BIT - Metal Work

Metal Work

5205111F

€51.73 (€42.06 tax excl.)

1/4" water filter-regulator regulation 0-12, body in extremely reliable technopolymer. Possibility of fixing by means of lateral holes. Bit GroupPressure gauge not included (can be ordered separately)Reference: 5205111F Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Size 1/4"

Water regulator Series F 1/4 0-4 bar BIT - Metal Work

Metal Work

5208002F

€33.26 (€27.04 tax excl.)

Customers who bought this product also bought:

Pneumatic push button black-white-red Valve: 3/2 NC side fittings Ø 4 mm- ADAJUSA

Pneumatic push button black-white-red Valve: 3/2 NC side fittings Ø 4 mm- ADAJUSA 2

Pack

Pushbuttons and pneumatic actuators

Pneumatic pushbutton black-white-red and Valve: 3/2 NC side fittings Ø 4 mm- Aignep

Aignep

PK-PUL32NCLX

€29.79 (€24.22 tax excl.)

Pushbutton with protection for discs standard colors: red, black and white, and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (pushbutton-valve). Representative image for illustrative purposes, the item supplied will correspond to the...

Pushbutton boxes

Button box 1 element diameter 22 plastic IP65 - NYGD Series

TRACON

NYGD-1GR

€5.35 (€4.35 tax excl.)

Button box for 1 element, with a diameter of 22 mm, in gray plastic and dark gray front. These boxes allow mounting electric pushbuttons with a diameter of 22mm. IP65 protection grade. Made of high resistance plastic. Reference: NYGD-1GR Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Pneumatic plugs and reductions

Reduction 1/2 to 1/4 male-female - Aignep

Aignep

2090 1/2 1/4

€1.23 (€1.00 tax excl.)

Pneumatic reduction fitting 1/2" (male) to 1/4 (female) with cylindrical threads, nickel-plated brass body. European manufacturing.Series: AccessoriesReference: 2090 1/2 1/4 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Nuts and accessories for pneumatic elements

Universal liquid sealant

Aignep

SL1-50CC

€16.08 (€13.07 tax excl.)

Liquid thread sealant for hydraulic and pneumatic joints up to 3/4, quantity 50ml. Sealing time 5 -10 minutes. Medium degree of fixation, so it is easily removable using conventional tools. High quality sealant for metal surfaces, high resistance to temperature, corrosion, impacts and vibrations. Recommended in pneumatic installations and compressed air...

Pneumatic silencers

Muffler 3/8 BSP 7000 series

Aignep

700038

€2.24 (€1.82 tax excl.)

B85 porous bronze Muffler with 3/8" BSP brass thread CW 510L. Noise levels at 6 bar 87 dB.Reference: 7000 3/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

DIN rail Power supply 24 Vdc 1.5A 36W LDCVDIN-30-24 ADAJUSA | price

Power supplies

Power supply 24Vdc 1.5A 36W DIN rail

TRACON

LDCVDIN30-24

€19.07 (€15.50 tax excl.)

Switching power supply 24Vdc 1.5A and 36W of power. Supply voltage 90-264Vac, high performance for general use, compact design and DIN rail mounting. Protected against overloads and short circuits. Reference: LDCVDIN-30-24 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4 metal filtration group with pressure gauge - Mindman

1/4 metal filtration group with pressure gauge - Mindman 2

Delivery in 3 days.

Filter groups of 3/8 FR-L

Metal filtration group 3/8 with pressure gauge - Mindman

Mindman

MACP30210A

€86.01 (€69.93 tax excl.)

Group of filter of 3/8 (Filter-regulator + lubricator) metallic and plastic cups, with integrated pressure gauge on the head. Reference: MACP30210A Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1/4 Spike for rubber diameter 12mm - Aignep | ADAJUSA | price

Nipples and adapters for pneumatic connection

Spike for 1/4 rubber diameter 12mm - Aignep

Aignep

3044 12 1/4

€1.05 (€0.85 tax excl.)

Spike with 1/4 cylindrical thread and for Ø 12mm rubber, body in nickel-plated brass and with gasket included. European manufacturing. Series: Accessories Reference: 3044 12 1/4 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

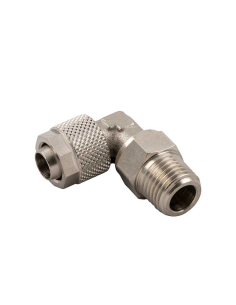

Conical male adjustable elbow fitting 1/4 6/4 tube Series 1000 - Aignep | ADAJUSA
