Transformer 40VA E:230/400V S:12V IP-00
Transformer 40VA E:230/400V S:12V IP-00

Transformer 40VA E:230-400V S:12V IP-00

€37.48 Tax included

30.47 tax excl.

TR40 2-4/12

Single-phase transformer for command, control and general uses, input voltage 230-400 Vac and output voltage 12Vac. The transformer power is 25VA, IP00 protection degree.

Reference: TR40 230-400/12

Esquema transformador monofasico 400-230 salida 12

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Single-phase transformer input 230-400Vac and output 12Vac, power 40VA. Varnished transformer, with degree of protection IP-00. The maximum current supplied is 3.33 A (apparent current).

The main application of this type of transformers is for command and control in industrial automatisms, and for applications in general. They are intended to supply electrical devices where galvanic isolation between circuits is required. They are protected against humidity by means of resin impregnation.

This type of transformers are reversible.

Technical characteristics of the transformer:


  • Reference: TR40 230-400/12
  • Type of transformer: Single-phase
  • Transformer primary voltage: 230-400Vac
  • Transformer secondary voltage: 12Vac
  • Transformer rated power: 40 VA
  • Maximum current in the secondary (In): 3,33A
  • Windings: thermal class N 200ºC.
  • Insulation: Thermal class B 130ºC.
  • Frequency: 50/60 Hz.
  • Protection: IP-00.
  • Transformer test voltage
    • 5 KV between windings.
    • 2.5 KV between windings and ground.
  • Ambient temperature: Ta= 25ºC.
  • Transformer encapsulation: varnished.
  • Transformer mounting: by means of screws.
  • Certificate: UNE-EN61558

Dim_trafo_monofasico_ip00

  • A: 75mm
  • B: 76mm
  • C: 78 mm
  • D: 49 mm
  • E: 63 mm
  • diameter: 4 mm
  • Weight: 1 Kg

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Professional use material, install in compliance with the regulations in force at the place of installation.

Questions

Question
necesitaria un transformador como este pero la salida de 48v con esta medidas ya que lo necesito para un espacio reducido
Answer

Estimado cliente:

En relación con su consulta, le informamos que sí disponemos de transformadores con salida a 48 V, con distintas potencias y formatos.

Puede consultar todos los modelos disponibles en el siguiente enlace:
https://adajusa.es/es/337-transformadores-monofasicos?q=Tensi%C3%B3n+secundario+o+salida-0%5C-12%5C-24%5C-36%5C-48+Vac

Si necesita un tamaño concreto por limitación de espacio, por favor indíquenos las dimensiones máximas disponibles para poder orientarle mejor.

⚠️ Importante:
Todos nuestros productos están destinados a uso profesional y deben ser instalados por personal cualificado. Por favor, verifique que las características se adaptan a su aplicación antes de realizar el pedido.

Quedamos a su disposición.

Atentamente,
Adajusa
https://adajusa.es

javier llamazares on 07/15/2025 10:12:32

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Transformer 200VA E:230/400V S:24V IP-00
Special manufacturing material
Single-phase transformers

Transformer 630VA E:230-400V S:12V IP-00

Generico-SEV
TR630 2-4/12
€115.02 (€93.51 tax excl.)
Single-phase switching transformer for command, control, and general uses, with an input voltage of 230-400 Vac and an output voltage of 12 Vac. The transformer has a power of 630 VA and an IP00 protection rating. Reference: TR630 230-400/12 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
250VA ultra-isolation IP-20 transformer 250VA ultra-isolation IP-20 transformer 2
Special manufacturing material
Single-phase transformers

Transformer 250VA 230/230Vac ultra-isolation IP-20

Generico-SEV
TRIA250
€76.14 (€61.90 tax excl.)
Single-phase ultra-isolation transformer 250VA primary 230Vac secondary 230Vac, designed to supply circuits where galvanic safety separation and disturbance filtering are required. Manufactured in resin encapsulator, degree of protection IP-20. Reference:TRIA250 Representative image for illustrative purposes, the item supplied will correspond to the...
Transformer 250VA IP00 special voltages
Special manufacturing material
Single-phase transformers

Transformer 250VA IP00 voltages as needed

Especial-SEV
TR2-250-ESP
Starting from €66.05 (€53.70 tax excl.)
Single-phase maneuver transformer for command, control and general uses. The transformer power is 250VA and with protection level IP00. Primary and secondary voltage can be requested by the customer. The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac. Select...
View
Single-phase safety transformer 315VA 12V 24V | ADAJUSA | price Single-phase safety transformer 315VA 12V 24V | ADAJUSA | price 2
Single-phase transformers

Transformer 315VA E:230/400V S:12/24V IP20 TS Series

MANUMAG
TS041323201
€76.00 (€61.79 tax excl.)
Single-phase safety transformer with galvanic isolation, power 315VA. Transformer in a highly resistant polymer case that gives it an IP20 protection rating. This range of transformers has two output voltages, 12Vac or 24Vac, each of which can be selected by means of jumpers. Mainly intended to provide a safe and reduced voltage to avoid electrical risks...

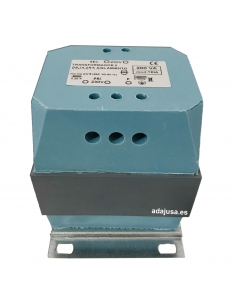

400VA ultra-isolation IP-20 transformer 400VA ultra-isolation IP-20 transformer 2
