125/220V 200VA single-phase autotransformer
125/220V 200VA single-phase autotransformer

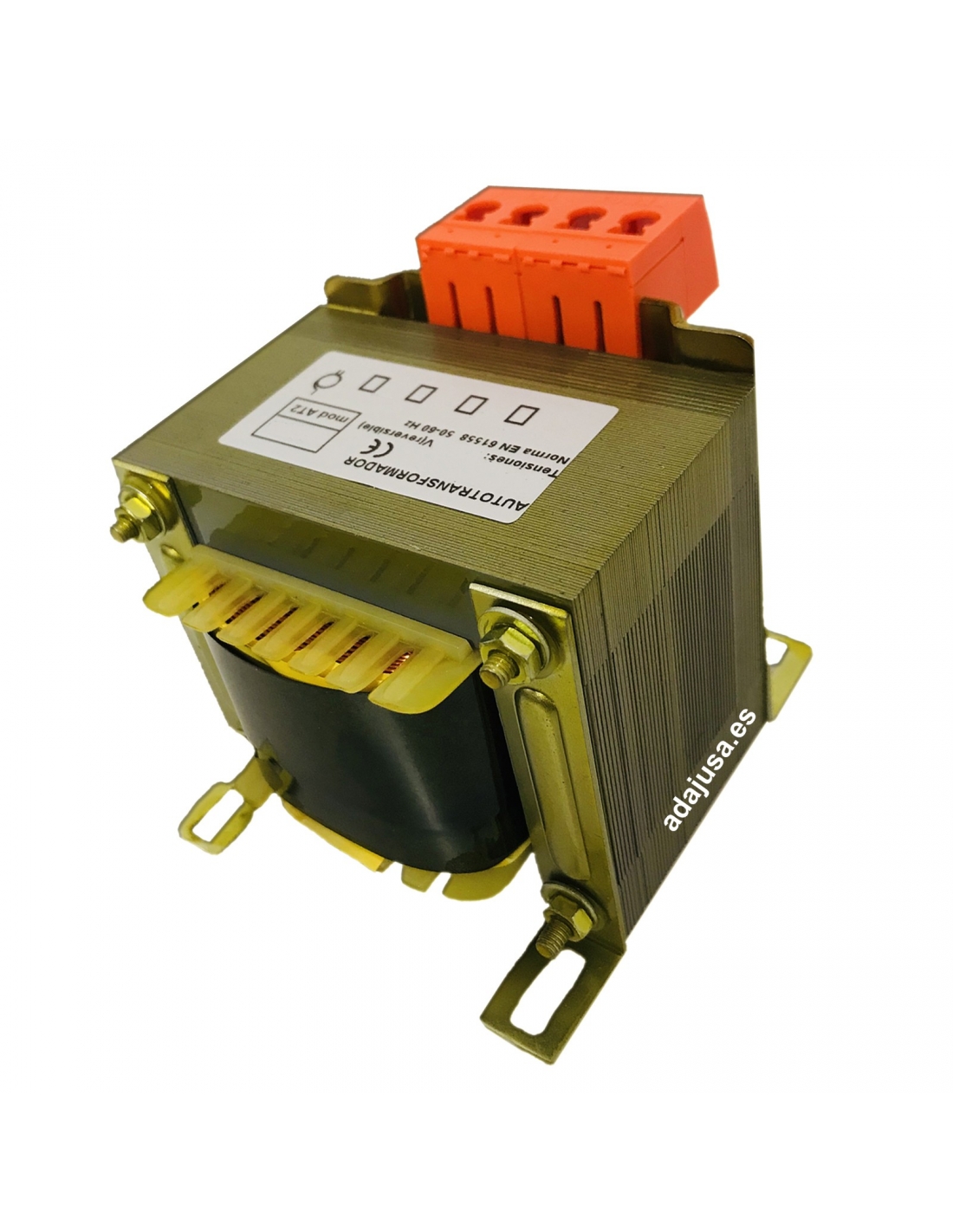

Single-phase autotransformer 200VA 125/220Vac IP-00

€37.92 Tax included

€31.34 tax excl.

200VA reversible single-phase autotransformer, which allows voltage adaptation between 125 and 220Vac.

It allows to adapt the tension in small machinery and appliances economically.

Ref: AT-200

Esquema autotransformador 125-220V

No queries yet, leave the first!


Single-phase self-transformer for voltage change, reversible, intended for voltage change. They are indicated when it is necessary to adapt the voltage from 125V to 220V / 220V to 125Vac, in an economical way, without galvanic separation. Its usual field of application is the use in small machinery and appliances.

Manufactured with low loss magnetic sheet and copper wire windings, providing high performance.

Technical details:

  • Ref: AT-200
  • Transformation ratio: 125/220 Vac Reversible
  • Power: 200VA.
  • Frequency: 50/60Hz.
  • Windings: Thermal class N 200oC.
  • Test voltage: 3KV between mass.
  • Insulators: Thermal class F 155oC and H 180oC.
  • Protection: IP-00.
  • Ambient temperature: TA-25oC.
  • Cooling: ANAN (Air natural).
  • Certificate: UNE-EN 61558.
  • Dimensions (width/background/height): 75x91x78mm
