Single-phase autotransformer 300VA 125/220Vac IP-20 AMN Series
Single-phase autotransformer 300VA 125/220Vac IP-20 AMN Series
Single-phase autotransformer 300VA 125/220Vac IP-20 AMN Series
Single-phase autotransformer 300VA 125/220Vac IP-20 AMN Series
Single-phase autotransformer 300VA 125/220Vac IP-20 AMN Series

Single-phase autotransformer 300VA 125/220Vac IP-20 AMN Series

€25.31 Tax included

€20.92 tax excl.

300VAsingle-phase reversible autotransformer for voltage adaptation between 125 and 220Vac, IP-20 protection degree. It allows to increase or decrease the mains voltage in order to provide the necessary voltage to domestic equipment, such as household appliances, for intermittent use.

Supplied with cable with two European plugs.



Reference: AMN02130201


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


300VA single-phase reversible autotransformer for voltage adaptation between 125 and 220Vac, IP-20 protection degree. It allows to raise or lower the mains voltage in order to provide the necessary voltage for the equipment to which they are associated for intermittent use


They are indicated when it is required to adapt in an economic way the voltage from 125V to 220V or from 220V to 125Vac covering the needs of the domestic sector by allowing to connect the electrical equipment to a different voltage for which they are designed. Especially intended for household appliances and domestic appliances.

Input and output voltages are derived from a common winding (Class H 180ºC) without galvanic isolation. Not short-circuit proof.

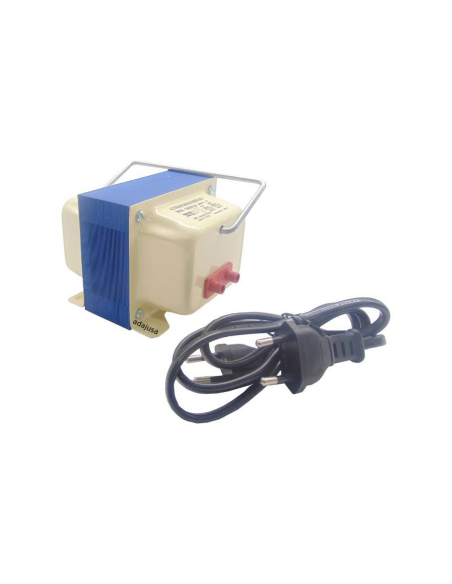

Supplied with carrying handle and cable with two European connection type plugs.



Technical characteristics:

  • Manufacturer/Supplier: Manumag
  • Part number: AMN02130201
  • Transformer ratio: 125/220 Vac reversible
  • Power: 300VA
  • Frequency: 50/60Hz
  • Windings: Class H 180ºC
  • Degree of protection: IP-20
  • Protection class: I
  • Insulation class: T40/F
  • Not short-circuit proof
  • European connection
  • Cooling: Natural air
  • Weight: 1,66Kg
  • Conforms to EN 61558-2-13






Other power ratings and voltages on request, please consult us



The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer.

The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.



Material for professional use, install in compliance with the regulations in force at the place of installation.
